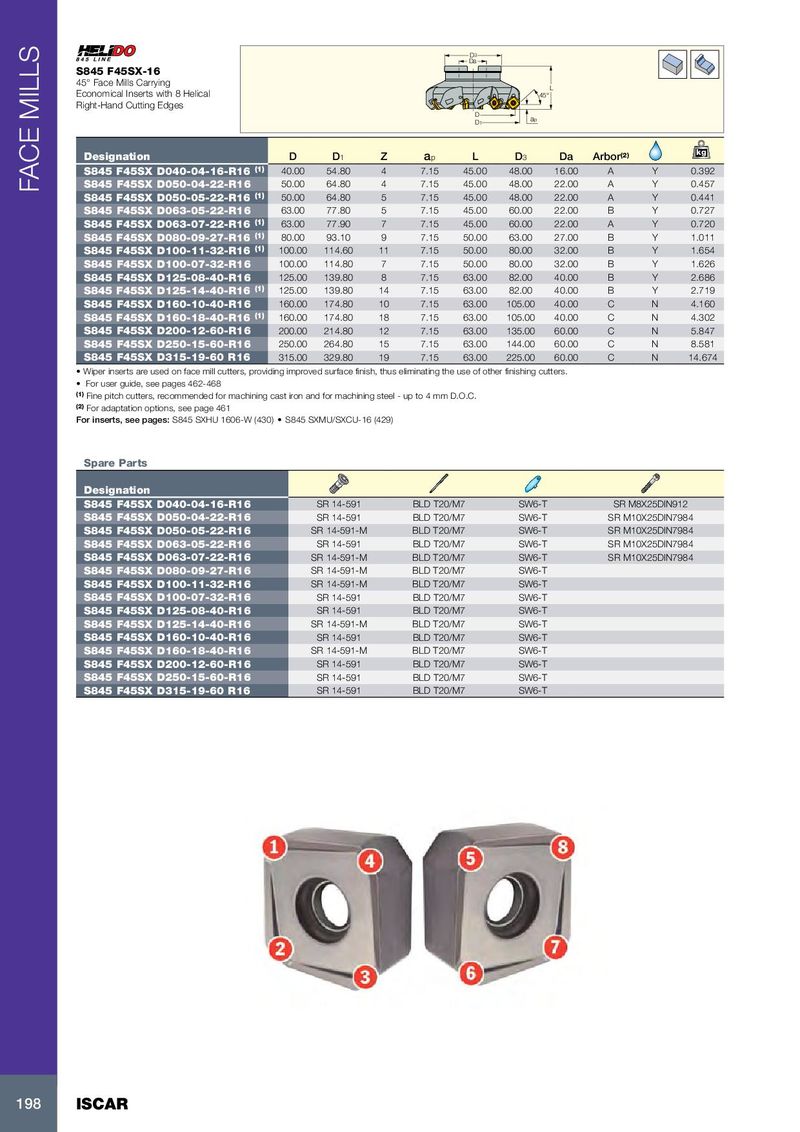

Каталог Iscar вращающийся инструмент 2017 - страница 202
Навигация
Каталог Iscar токарные пластины ISO 2022
Каталог Iscar инструмент для фрезерования
Каталог Iscar решения для глубокого сверления
Каталог Iscar полирующие фрезы
Новые режущие инструменты Iscar 2026
Каталог Iscar новые продукты 2018
| Da D3 | ||||||||||
| S845 F45SX-16 | ||||||||||
| 45° Face Mills Carrying Economical Inserts with 8 Helical Right-Hand Cutting Edges | D D1 | ap 45° | L | |||||||
| Designation | D | D1 | Z | ap | L | D3 | Da | Arbor(2) | kg | |
| S845 F45SX D040-04-16-R16(1) | 40.00 | 54.80 | 4 | 7.15 | 45.00 | 48.00 | 16.00 | A | Y | 0.392 |
| S845 F45SX D050-04-22-R16 | 50.00 | 64.80 | 4 | 7.15 | 45.00 | 48.00 | 22.00 | A | Y | 0.457 |
| S845 F45SX D050-05-22-R16(1) | 50.00 | 64.80 | 5 | 7.15 | 45.00 | 48.00 | 22.00 | A | Y | 0.441 |
| S845 F45SX D063-05-22-R16 | 63.00 | 77.80 | 5 | 7.15 | 45.00 | 60.00 | 22.00 | B | Y | 0.727 |
| S845 F45SX D063-07-22-R16(1) | 63.00 | 77.90 | 7 | 7.15 | 45.00 | 60.00 | 22.00 | A | Y | 0.720 |
| S845 F45SX D080-09-27-R16(1) | 80.00 | 93.10 | 9 | 7.15 | 50.00 | 63.00 | 27.00 | B | Y | 1.011 |
| S845 F45SX D100-11-32-R16(1) | 100.00 | 114.60 | 11 | 7.15 | 50.00 | 80.00 | 32.00 | B | Y | 1.654 |
| S845 F45SX D100-07-32-R16 | 100.00 | 114.80 | 7 | 7.15 | 50.00 | 80.00 | 32.00 | B | Y | 1.626 |
| S845 F45SX D125-08-40-R16 | 125.00 | 139.80 | 8 | 7.15 | 63.00 | 82.00 | 40.00 | B | Y | 2.686 |
| S845 F45SX D125-14-40-R16(1) | 125.00 | 139.80 | 14 | 7.15 | 63.00 | 82.00 | 40.00 | B | Y | 2.719 |
| S845 F45SX D160-10-40-R16 | 160.00 | 174.80 | 10 | 7.15 | 63.00 | 105.00 | 40.00 | C | N | 4.160 |
| S845 F45SX D160-18-40-R16(1) | 160.00 | 174.80 | 18 | 7.15 | 63.00 | 105.00 | 40.00 | C | N | 4.302 |
| S845 F45SX D200-12-60-R16 | 200.00 | 214.80 | 12 | 7.15 | 63.00 | 135.00 | 60.00 | C | N | 5.847 |
| S845 F45SX D250-15-60-R16 | 250.00 | 264.80 | 15 | 7.15 | 63.00 | 144.00 | 60.00 | C | N | 8.581 |
| S845 F45SX D315-19-60 R16 | 315.00 | 329.80 | 19 | 7.15 | 63.00 | 225.00 | 60.00 | C | N | 14.674 |
- Wiper inserts are used on face mill cutters, providing improved surface finish, thus eliminating the use of other finishing cutters.
- For user guide, see pages 462-468
(1) Fine pitch cutters, recommended for machining cast iron and for machining steel - up to 4 mm D.O.C. (2) For adaptation options, see page 461 For inserts, see pages: S845 SXHU 1606-W (430) S845 SXMU/SXCU-16 (429)
| Spare Parts | ||||
| Designation | ||||
| S845 F45SX D040-04-16-R16 | SR 14-591 | BLD T20/M7 | SW6-T | SR M8X25DIN912 |
| S845 F45SX D050-04-22-R16 | SR 14-591 | BLD T20/M7 | SW6-T | SR M10X25DIN7984 |
| S845 F45SX D050-05-22-R16 | SR 14-591-M | BLD T20/M7 | SW6-T | SR M10X25DIN7984 |
| S845 F45SX D063-05-22-R16 | SR 14-591 | BLD T20/M7 | SW6-T | SR M10X25DIN7984 |
| S845 F45SX D063-07-22-R16 | SR 14-591-M | BLD T20/M7 | SW6-T | SR M10X25DIN7984 |
| S845 F45SX D080-09-27-R16 | SR 14-591-M | BLD T20/M7 | SW6-T | |
| S845 F45SX D100-11-32-R16 | SR 14-591-M | BLD T20/M7 | SW6-T | |
| S845 F45SX D100-07-32-R16 | SR 14-591 | BLD T20/M7 | SW6-T | |
| S845 F45SX D125-08-40-R16 | SR 14-591 | BLD T20/M7 | SW6-T | |
| S845 F45SX D125-14-40-R16 | SR 14-591-M | BLD T20/M7 | SW6-T | |
| S845 F45SX D160-10-40-R16 | SR 14-591 | BLD T20/M7 | SW6-T | |
| S845 F45SX D160-18-40-R16 | SR 14-591-M | BLD T20/M7 | SW6-T | |
| S845 F45SX D200-12-60-R16 | SR 14-591 | BLD T20/M7 | SW6-T | |
| S845 F45SX D250-15-60-R16 | SR 14-591 | BLD T20/M7 | SW6-T | |
| S845 F45SX D315-19-60 R16 | SR 14-591 | BLD T20/M7 | SW6-T |
