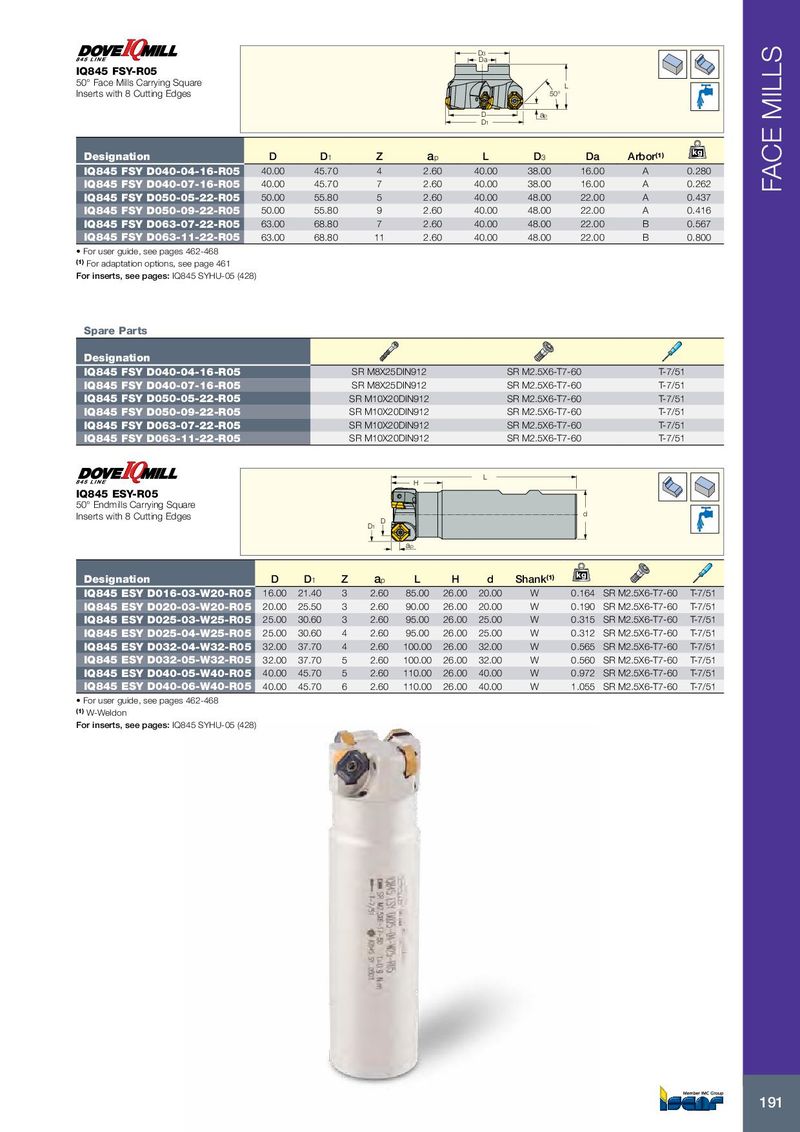

| 845 FSY-R05 | Da D3 | ||||||||
| 0° Face Mills Carrying Square serts with 8 Cutting Edges | D1 D | L 50° ap | |||||||
| Designation | D | D1 | Z | ap | L | D3 | Da | Arbor(1) | kg |
| IQ845 FSY D040-04-16-R05 | 40.00 | 45.70 | 4 | 2.60 | 40.00 | 38.00 | 16.00 | A | 0.280 |
| IQ845 FSY D040-07-16-R05 | 40.00 | 45.70 | 7 | 2.60 | 40.00 | 38.00 | 16.00 | A | 0.262 |
| IQ845 FSY D050-05-22-R05 | 50.00 | 55.80 | 5 | 2.60 | 40.00 | 48.00 | 22.00 | A | 0.437 |
| IQ845 FSY D050-09-22-R05 | 50.00 | 55.80 | 9 | 2.60 | 40.00 | 48.00 | 22.00 | A | 0.416 |
| IQ845 FSY D063-07-22-R05 | 63.00 | 68.80 | 7 | 2.60 | 40.00 | 48.00 | 22.00 | B | 0.567 |
| IQ845 FSY D063-11-22-R05 | 63.00 | 68.80 | 11 | 2.60 | 40.00 | 48.00 | 22.00 | B | 0.800 |
- For user guide, see pages 462-468
(1) For adaptation options, see page 461 For inserts, see pages: IQ845 SYHU-05 (428)
| Spare Parts | |||
| Designation | |||
| IQ845 FSY D040-04-16-R05 | SR M8X25DIN912 | SR M2.5X6-T7-60 | T-7/51 |
| IQ845 FSY D040-07-16-R05 | SR M8X25DIN912 | SR M2.5X6-T7-60 | T-7/51 |
| IQ845 FSY D050-05-22-R05 | SR M10X20DIN912 | SR M2.5X6-T7-60 | T-7/51 |
| IQ845 FSY D050-09-22-R05 | SR M10X20DIN912 | SR M2.5X6-T7-60 | T-7/51 |
| IQ845 FSY D063-07-22-R05 | SR M10X20DIN912 | SR M2.5X6-T7-60 | T-7/51 |
| IQ845 FSY D063-11-22-R05 | SR M10X20DIN912 | SR M2.5X6-T7-60 | T-7/51 |
| IQ845 ESY-R05 | H | L | ||||||||
| 50° Endmills Carrying Square Inserts with 8 Cutting Edges | D D1 | ap | d | |||||||
| Designation | D | D1 | Z ap | L | H | d | Shank(1) | kg | ||
| IQ845 ESY D016-03-W20-R05 | 16.00 | 21.40 | 3 2.60 | 85.00 | 26.00 | 20.00 | W | 0.164 | SR M2.5X6-T7-60 | T-7/51 |
| IQ845 ESY D020-03-W20-R05 | 20.00 | 25.50 | 3 2.60 | 90.00 | 26.00 | 20.00 | W | 0.190 | SR M2.5X6-T7-60 | T-7/51 |
| IQ845 ESY D025-03-W25-R05 | 25.00 | 30.60 | 3 2.60 | 95.00 | 26.00 | 25.00 | W | 0.315 | SR M2.5X6-T7-60 | T-7/51 |
| IQ845 ESY D025-04-W25-R05 | 25.00 | 30.60 | 4 2.60 | 95.00 | 26.00 | 25.00 | W | 0.312 | SR M2.5X6-T7-60 | T-7/51 |
| IQ845 ESY D032-04-W32-R05 | 32.00 | 37.70 | 4 2.60 | 100.00 | 26.00 | 32.00 | W | 0.565 | SR M2.5X6-T7-60 | T-7/51 |
| IQ845 ESY D032-05-W32-R05 | 32.00 | 37.70 | 5 2.60 | 100.00 | 26.00 | 32.00 | W | 0.560 | SR M2.5X6-T7-60 | T-7/51 |
| IQ845 ESY D040-05-W40-R05 | 40.00 | 45.70 | 5 2.60 | 110.00 | 26.00 | 40.00 | W | 0.972 | SR M2.5X6-T7-60 | T-7/51 |
| IQ845 ESY D040-06-W40-R05 | 40.00 | 45.70 | 6 2.60 | 110.00 | 26.00 | 40.00 | W | 1.055 | SR M2.5X6-T7-60 | T-7/51 |
- For user guide, see pages 462-468
(1) W-Weldon For inserts, see pages: IQ845 SYHU-05 (428)
