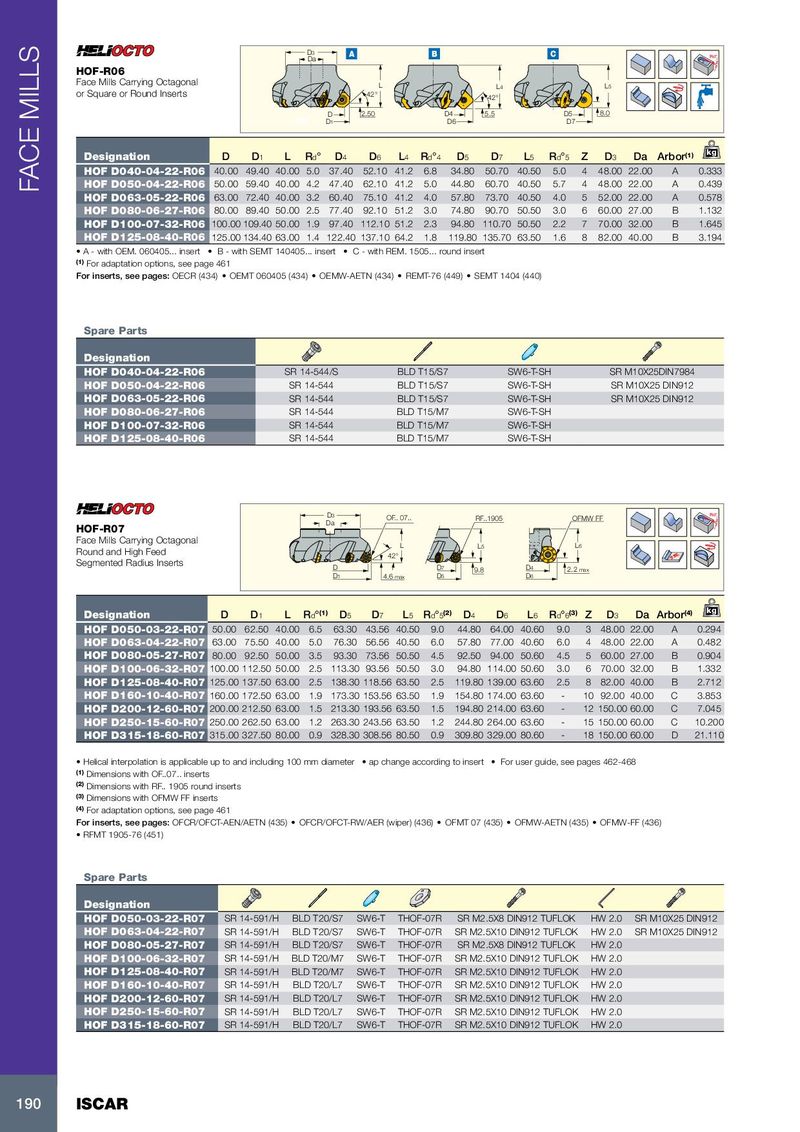

| HOF-R06 Face Mills Carrying Octagonal or Square or Round Inserts | | | | Da D3 | D1 D A | L 42° 2.50 | | B | D4 D6 | L4 42° 5.5 | | D5 D7 C | 8.0 L5 | | | Rd° |
| Designation | D | D1 | L | Rd° | D4 | D6 | L4 | Rd°4 | D5 | D7 | L5 | Rd°5 | Z D3 | Da | Arbor(1 | ) kg |
| HOF D040-04-22-R06 | 40.00 | 49.40 | 40.00 | 5.0 | 37.40 | 52.10 | 41.2 | 6.8 | 34.80 | 50.70 | 40.50 | 5.0 | 4 48.00 | 22.00 | A | 0.333 |
| HOF D050-04-22-R06 | 50.00 | 59.40 | 40.00 | 4.2 | 47.40 | 62.10 | 41.2 | 5.0 | 44.80 | 60.70 | 40.50 | 5.7 | 4 48.00 | 22.00 | A | 0.439 |
| HOF D063-05-22-R06 | 63.00 | 72.40 | 40.00 | 3.2 | 60.40 | 75.10 | 41.2 | 4.0 | 57.80 | 73.70 | 40.50 | 4.0 | 5 52.00 | 22.00 | A | 0.578 |
| HOF D080-06-27-R06 | 80.00 | 89.40 | 50.00 | 2.5 | 77.40 | 92.10 | 51.2 | 3.0 | 74.80 | 90.70 | 50.50 | 3.0 | 6 60.00 | 27.00 | B | 1.132 |
| HOF D100-07-32-R06 | 100.00 | 109.40 | 50.00 | 1.9 | 97.40 | 112.10 | 51.2 | 2.3 | 94.80 | 110.70 | 50.50 | 2.2 | 7 70.00 | 32.00 | B | 1.645 |
| HOF D125-08-40-R06 | 125.00 | 134.40 | 63.00 | 1.4 | 122.40 | 137.10 | 64.2 | 1.8 | 119.80 | 135.70 | 63.50 | 1.6 | 8 82.00 | 40.00 | B | 3.194 |
| • A - with OEM. 060405... insert • | B - wit | h SEMT | 14040 | 5... ins | ert • | C - with R | EM. 1 | 505... r | ound ins | ert | | | | | | |
(1) For adaptation options, see page 461 For inserts, see pages: OECR (434) OEMT 060405 (434) OEMW-AETN (434) REMT-76 (449) SEMT 1404 (440)
| Spare Parts | | | | |
| Designation | | | | |
| HOF D040-04-22-R06 | SR 14-544/S | BLD T15/S7 | SW6-T-SH | SR M10X25DIN7984 |
| HOF D050-04-22-R06 | SR 14-544 | BLD T15/S7 | SW6-T-SH | SR M10X25 DIN912 |
| HOF D063-05-22-R06 | SR 14-544 | BLD T15/S7 | SW6-T-SH | SR M10X25 DIN912 |
| HOF D080-06-27-R06 | SR 14-544 | BLD T15/M7 | SW6-T-SH | |
| HOF D100-07-32-R06 | SR 14-544 | BLD T15/M7 | SW6-T-SH | |
| HOF D125-08-40-R06 | SR 14-544 | BLD T15/M7 | SW6-T-SH | |
| HOF-R07 Face Mills Carrying Octagonal Round and High Feed Segmented Radius Inserts | | | | D D | a 3 D1 D | L 42° OF.. 07.. 4.6max | D5 D7 | L5 RF 9.8 | ..1905 | D6 D4 | OFM 2.2ma L6 | W x | FF | | | Rd° |
| Designation | D | D1 | L | Rd°(1) | D5 | D7 L5 | Rd°5(2) | D4 | D6 | L6 | Rd°6(3) | Z | D3 | Da | Arbor(4 | ) kg |
| HOF D050-03-22-R07 | 50.00 | 62.50 | 40.00 | 6.5 | 63.30 | 43.56 40.50 | 9.0 | 44.80 | 64.00 | 40.60 | 9.0 | 3 | 48.00 | 22.00 | A | 0.294 |
| HOF D063-04-22-R07 | 63.00 | 75.50 | 40.00 | 5.0 | 76.30 | 56.56 40.50 | 6.0 | 57.80 | 77.00 | 40.60 | 6.0 | 4 | 48.00 | 22.00 | A | 0.482 |
| HOF D080-05-27-R07 | 80.00 | 92.50 | 50.00 | 3.5 | 93.30 | 73.56 50.50 | 4.5 | 92.50 | 94.00 | 50.60 | 4.5 | 5 | 60.00 | 27.00 | B | 0.904 |
| HOF D100-06-32-R07 | 100.00 | 112.50 | 50.00 | 2.5 | 113.30 | 93.56 50.50 | 3.0 | 94.80 | 114.00 | 50.60 | 3.0 | 6 | 70.00 | 32.00 | B | 1.332 |
| HOF D125-08-40-R07 | 125.00 | 137.50 | 63.00 | 2.5 | 138.30 | 118.56 63.50 | 2.5 | 119.80 | 139.00 | 63.60 | 2.5 | 8 | 82.00 | 40.00 | B | 2.712 |
| HOF D160-10-40-R07 | 160.00 | 172.50 | 63.00 | 1.9 | 173.30 | 153.56 63.50 | 1.9 | 154.80 | 174.00 | 63.60 | - 1 | 0 | 92.00 | 40.00 | C | 3.853 |
| HOF D200-12-60-R07 | 200.00 | 212.50 | 63.00 | 1.5 | 213.30 | 193.56 63.50 | 1.5 | 194.80 | 214.00 | 63.60 | - 1 | 2 | 150.00 | 60.00 | C | 7.045 |
| HOF D250-15-60-R07 | 250.00 | 262.50 | 63.00 | 1.2 | 263.30 | 243.56 63.50 | 1.2 | 244.80 | 264.00 | 63.60 | - 1 | 5 | 150.00 | 60.00 | C | 10.200 |
| HOF D315-18-60-R07 | 315.00 | 327.50 | 80.00 | 0.9 | 328.30 | 308.56 80.50 | 0.9 | 309.80 | 329.00 | 80.60 | - 1 | 8 | 150.00 | 60.00 | D | 21.110 |
- Helical interpolation is applicable up to and including 100 mm diameter
- ap change according to insert
- For user guide, see pages 462-468
(1) Dimensions with OF..07.. inserts (2) Dimensions with RF.. 1905 round inserts (3) Dimensions with OFMW FF inserts (4) For adaptation options, see page 461 For inserts, see pages: OFCR/OFCT-AEN/AETN (435) OFCR/OFCT-RW/AER (wiper) (436) OFMT 07 (435) OFMW-AETN (435) OFMW-FF (436)
| Spare Parts | | | | | | | |
| Designation | | | | | | | |
| HOF D050-03-22-R07 | SR 14-591/H | BLD T20/S7 | SW6-T | THOF-07R | SR M2.5X8 DIN912 TUFLOK | HW 2.0 | SR M10X25 DIN912 |
| HOF D063-04-22-R07 | SR 14-591/H | BLD T20/S7 | SW6-T | THOF-07R | SR M2.5X10 DIN912 TUFLOK | HW 2.0 | SR M10X25 DIN912 |
| HOF D080-05-27-R07 | SR 14-591/H | BLD T20/S7 | SW6-T | THOF-07R | SR M2.5X8 DIN912 TUFLOK | HW 2.0 | |
| HOF D100-06-32-R07 | SR 14-591/H | BLD T20/M7 | SW6-T | THOF-07R | SR M2.5X10 DIN912 TUFLOK | HW 2.0 | |
| HOF D125-08-40-R07 | SR 14-591/H | BLD T20/M7 | SW6-T | THOF-07R | SR M2.5X10 DIN912 TUFLOK | HW 2.0 | |
| HOF D160-10-40-R07 | SR 14-591/H | BLD T20/L7 | SW6-T | THOF-07R | SR M2.5X10 DIN912 TUFLOK | HW 2.0 | |
| HOF D200-12-60-R07 | SR 14-591/H | BLD T20/L7 | SW6-T | THOF-07R | SR M2.5X10 DIN912 TUFLOK | HW 2.0 | |
| HOF D250-15-60-R07 | SR 14-591/H | BLD T20/L7 | SW6-T | THOF-07R | SR M2.5X10 DIN912 TUFLOK | HW 2.0 | |
| HOF D315-18-60-R07 | SR 14-591/H | BLD T20/L7 | SW6-T | THOF-07R | SR M2.5X10 DIN912 TUFLOK | HW 2.0 | |
