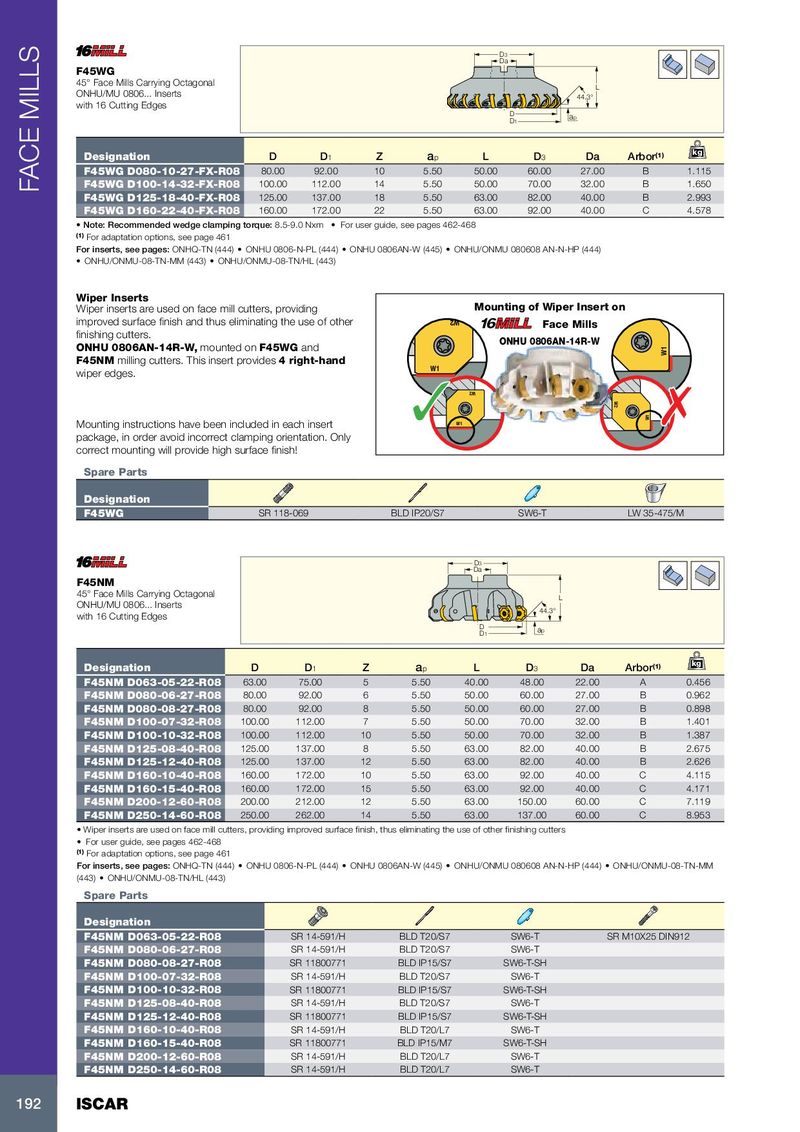

F45WG
45° Face Mills Carrying Octagonal ONHU/MU 0806... Inserts with 16 Cutting Edges
44.3° D a D p 1
| Designation | D | D1 | Z | ap | L | D3 | Da | Arbor(1) | kg |
| F45WG D080-10-27-FX-R08 | 80.00 | 92.00 | 10 | 5.50 | 50.00 | 60.00 | 27.00 | B | 1.115 |
| F45WG D100-14-32-FX-R08 | 100.00 | 112.00 | 14 | 5.50 | 50.00 | 70.00 | 32.00 | B | 1.650 |
| F45WG D125-18-40-FX-R08 | 125.00 | 137.00 | 18 | 5.50 | 63.00 | 82.00 | 40.00 | B | 2.993 |
| F45WG D160-22-40-FX-R08 | 160.00 | 172.00 | 22 | 5.50 | 63.00 | 92.00 | 40.00 | C | 4.578 |
- Note: Recommended wedge clamping torque: 8.5-9.0 Nxm
- For user guide, see pages 462-468
(1) For adaptation options, see page 461 For inserts, see pages: ONHQ-TN (444) ONHU 0806-N-PL (444) ONHU 0806AN-W (445) ONHU/ONMU 080608 AN-N-HP (444)
- ONHU/ONMU-08-TN-MM (443)
- ONHU/ONMU-08-TN/HL (443)
Wiper Inserts
Wiper inserts are used on face mill cutters, providing Mounting of Wiper Insert on
improved surface finish and thus eliminating the use of other W2 Face Mills
finishing cutters. ONHU 0806AN-14R-W, mounted on F45WG and ONHU 0806AN-14R-W F45NM milling cutters. This insert provides 4 right-hand wiper edges. W1
W2
Mounting instructions have been included in each insert
W1
package, in order avoid incorrect clamping orientation. Only
correct mounting will provide high surface finish!
Spare Parts
Designation
F45WG SR 118-069 BLD IP20/S7 SW6-T LW 35-475/M
F45NM
45° Face Mills Carrying Octagonal ONHU/MU 0806... Inserts with 16 Cutting Edges
D3 Da
L 44.3° D a D p 1
| Designation | D | D1 | Z | ap | L | D3 | Da | Arbor(1) | kg |
| F45NM D063-05-22-R08 | 63.00 | 75.00 | 5 | 5.50 | 40.00 | 48.00 | 22.00 | A | 0.456 |
| F45NM D080-06-27-R08 | 80.00 | 92.00 | 6 | 5.50 | 50.00 | 60.00 | 27.00 | B | 0.962 |
| F45NM D080-08-27-R08 | 80.00 | 92.00 | 8 | 5.50 | 50.00 | 60.00 | 27.00 | B | 0.898 |
| F45NM D100-07-32-R08 | 100.00 | 112.00 | 7 | 5.50 | 50.00 | 70.00 | 32.00 | B | 1.401 |
| F45NM D100-10-32-R08 | 100.00 | 112.00 | 10 | 5.50 | 50.00 | 70.00 | 32.00 | B | 1.387 |
| F45NM D125-08-40-R08 | 125.00 | 137.00 | 8 | 5.50 | 63.00 | 82.00 | 40.00 | B | 2.675 |
| F45NM D125-12-40-R08 | 125.00 | 137.00 | 12 | 5.50 | 63.00 | 82.00 | 40.00 | B | 2.626 |
| F45NM D160-10-40-R08 | 160.00 | 172.00 | 10 | 5.50 | 63.00 | 92.00 | 40.00 | C | 4.115 |
| F45NM D160-15-40-R08 | 160.00 | 172.00 | 15 | 5.50 | 63.00 | 92.00 | 40.00 | C | 4.171 |
| F45NM D200-12-60-R08 | 200.00 | 212.00 | 12 | 5.50 | 63.00 | 150.00 | 60.00 | C | 7.119 |
| F45NM D250-14-60-R08 | 250.00 | 262.00 | 14 | 5.50 | 63.00 | 137.00 | 60.00 | C | 8.953 |
- Wiper inserts are used on face mill cutters, providing improved surface finish, thus eliminating the use of other finishing cutters
- For user guide, see pages 462-468
(1) For adaptation options, see page 461 For inserts, see pages: ONHQ-TN (444) ONHU 0806-N-PL (444) ONHU 0806AN-W (445) ONHU/ONMU 080608 AN-N-HP (444) ONHU/ONMU-08-TN-MM (443) ONHU/ONMU-08-TN/HL (443)
Spare Parts
| Designation | ||||
| F45NM D063-05-22-R08 | SR 14-591/H | BLD T20/S7 | SW6-T | SR M10X25 DIN912 |
| F45NM D080-06-27-R08 | SR 14-591/H | BLD T20/S7 | SW6-T | |
| F45NM D080-08-27-R08 | SR 11800771 | BLD IP15/S7 | SW6-T-SH | |
| F45NM D100-07-32-R08 | SR 14-591/H | BLD T20/S7 | SW6-T | |
| F45NM D100-10-32-R08 | SR 11800771 | BLD IP15/S7 | SW6-T-SH | |
| F45NM D125-08-40-R08 | SR 14-591/H | BLD T20/S7 | SW6-T | |
| F45NM D125-12-40-R08 | SR 11800771 | BLD IP15/S7 | SW6-T-SH | |
| F45NM D160-10-40-R08 | SR 14-591/H | BLD T20/L7 | SW6-T | |
| F45NM D160-15-40-R08 | SR 11800771 | BLD IP15/M7 | SW6-T-SH | |
| F45NM D200-12-60-R08 | SR 14-591/H | BLD T20/L7 | SW6-T | |
| F45NM D250-14-60-R08 | SR 14-591/H | BLD T20/L7 | SW6-T |
