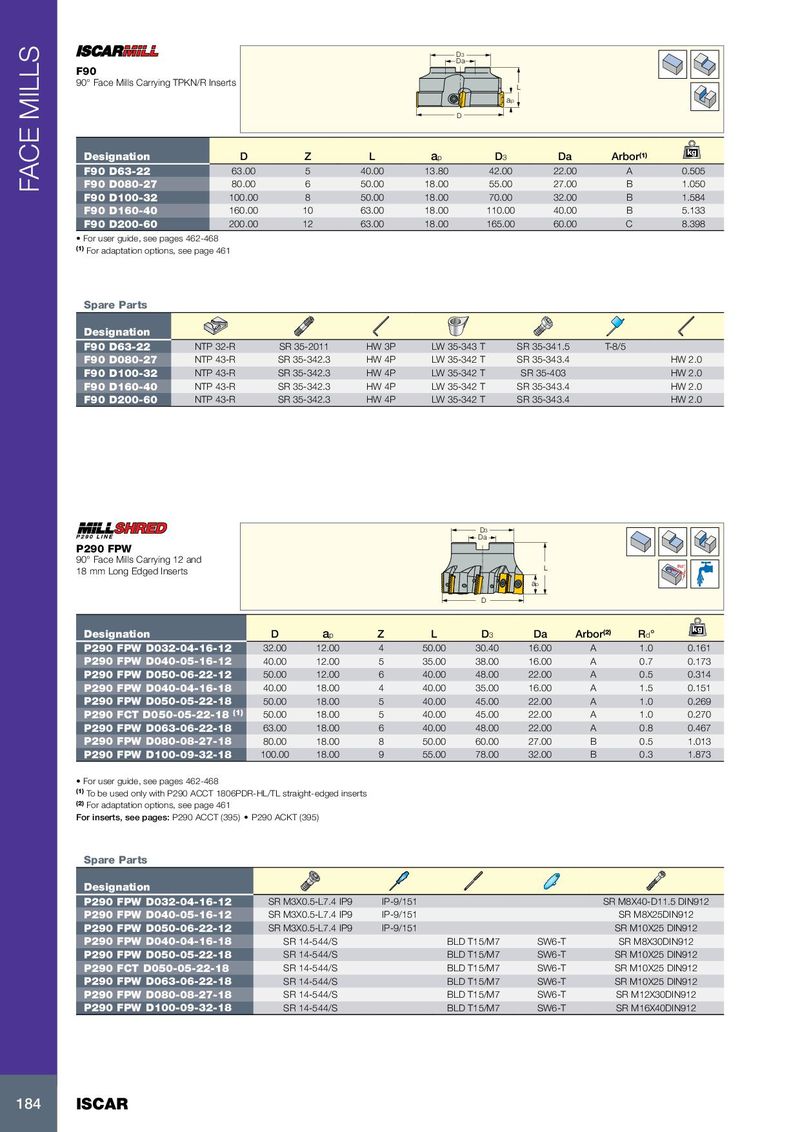

D3 Da F90 90° Face Mills Carrying TPKN/R Inserts L ap D kg Designation D Z L a p D 3 Da Arbor (1) F90 D63-22 63.00 5 40.00 13.80 42.00 22.00 A 0.505 F90 D080-27 80.00 6 50.00 18.00 55.00 27.00 B 1.050 FACE MILLS F90 D100-32 100.00 8 50.00 18.00 70.00 32.00 B 1.584 F90 D160-40 160.00 10 63.00 18.00 110.00 40.00 B 5.133 F90 D200-60 200.00 12 63.00 18.00 165.00 60.00 C 8.398 • For user guide, see pages 462-468 (1) For adaptation options, see page 461 Spare Parts Designation F90 D63-22 NTP 32-R SR 35-2011 HW 3P LW 35-343 T SR 35-341.5 T-8/5 F90 D080-27 NTP 43-R SR 35-342.3 HW 4P LW 35-342 T SR 35-343.4 HW 2.0 F90 D100-32 NTP 43-R SR 35-342.3 HW 4P LW 35-342 T SR 35-403 HW 2.0 F90 D160-40 NTP 43-R SR 35-342.3 HW 4P LW 35-342 T SR 35-343.4 HW 2.0 F90 D200-60 NTP 43-R SR 35-342.3 HW 4P LW 35-342 T SR 35-343.4 HW 2.0 D3 Da P290 FPW 90° Face Mills Carrying 12 and 18 mm Long Edged Inserts L Rd° ap D kg Designation D a p Z L D 3 Da Arbor (2) R d ° P290 FPW D032-04-16-12 32.00 12.00 4 50.00 30.40 16.00 A 1.0 0.161 P290 FPW D040-05-16-12 40.00 12.00 5 35.00 38.00 16.00 A 0.7 0.173 P290 FPW D050-06-22-12 50.00 12.00 6 40.00 48.00 22.00 A 0.5 0.314 P290 FPW D040-04-16-18 40.00 18.00 4 40.00 35.00 16.00 A 1.5 0.151 P290 FPW D050-05-22-18 50.00 18.00 5 40.00 45.00 22.00 A 1.0 0.269 P290 FCT D050-05-22-18 (1) 50.00 18.00 5 40.00 45.00 22.00 A 1.0 0.270 P290 FPW D063-06-22-18 63.00 18.00 6 40.00 48.00 22.00 A 0.8 0.467 P290 FPW D080-08-27-18 80.00 18.00 8 50.00 60.00 27.00 B 0.5 1.013 P290 FPW D100-09-32-18 100.00 18.00 9 55.00 78.00 32.00 B 0.3 1.873 • For user guide, see pages 462-468 (1) To be used only with P290 ACCT 1806PDR-HL/TL straight-edged inserts (2) For adaptation options, see page 461 For inserts, see pages: P290 ACCT (395) • P290 ACKT (395) Spare Parts Designation P290 FPW D032-04-16-12 SR M3X0.5-L7.4 IP9 IP-9/151 SR M8X40-D11.5 DIN912 P290 FPW D040-05-16-12 SR M3X0.5-L7.4 IP9 IP-9/151 SR M8X25DIN912 P290 FPW D050-06-22-12 SR M3X0.5-L7.4 IP9 IP-9/151 SR M10X25 DIN912 P290 FPW D040-04-16-18 SR 14-544/S BLD T15/M7 SW6-T SR M8X30DIN912 P290 FPW D050-05-22-18 SR 14-544/S BLD T15/M7 SW6-T SR M10X25 DIN912 P290 FCT D050-05-22-18 SR 14-544/S BLD T15/M7 SW6-T SR M10X25 DIN912 P290 FPW D063-06-22-18 SR 14-544/S BLD T15/M7 SW6-T SR M10X25 DIN912 P290 FPW D080-08-27-18 SR 14-544/S BLD T15/M7 SW6-T SR M12X30DIN912 P290 FPW D100-09-32-18 SR 14-544/S BLD T15/M7 SW6-T SR M16X40DIN912 184 ISCAR
