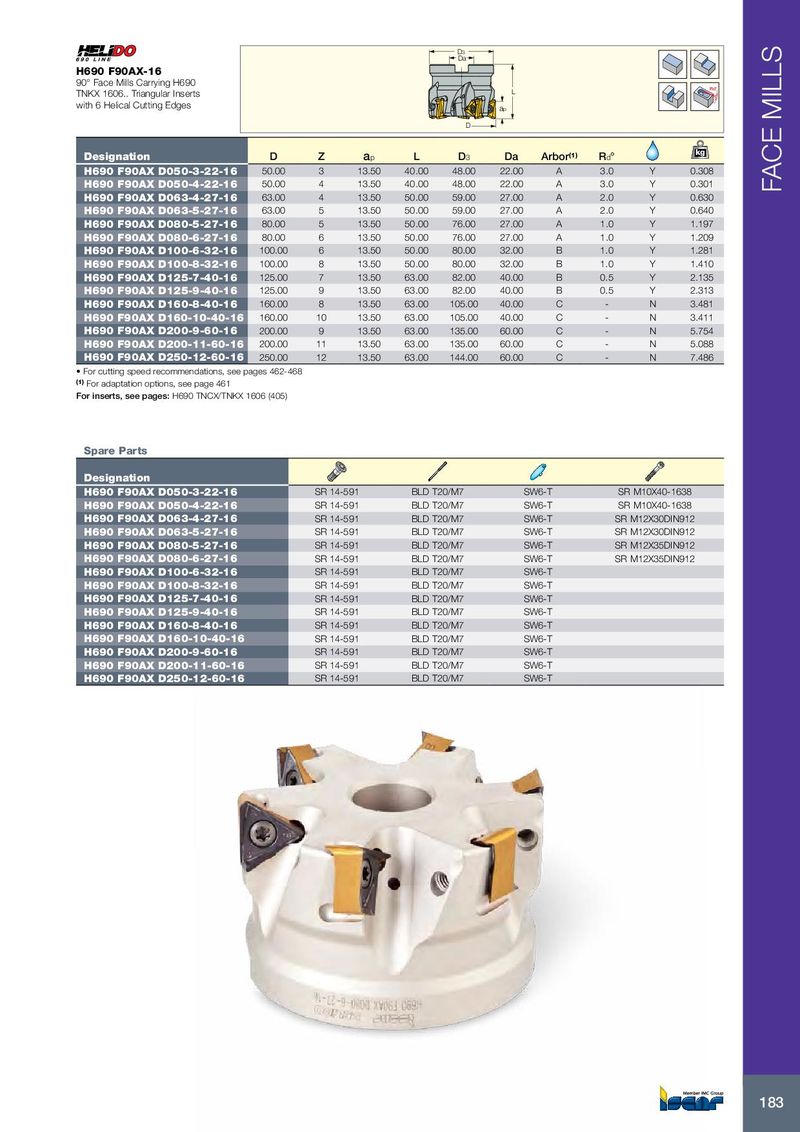

D3 Da H690 F90AX-16 90° Face Mills Carrying H690 TNKX 1606.. Triangular Inserts L Rd° with 6 Helical Cutting Edges ap D kg Designation D Z a p L D 3 Da Arbor (1) R d ° H690 F90AX D050-3-22-16 50.00 3 13.50 40.00 48.00 22.00 A 3.0 Y 0.308 H690 F90AX D050-4-22-16 50.00 4 13.50 40.00 48.00 22.00 A 3.0 Y 0.301 FACE MILLS H690 F90AX D063-4-27-16 63.00 4 13.50 50.00 59.00 27.00 A 2.0 Y 0.630 H690 F90AX D063-5-27-16 63.00 5 13.50 50.00 59.00 27.00 A 2.0 Y 0.640 H690 F90AX D080-5-27-16 80.00 5 13.50 50.00 76.00 27.00 A 1.0 Y 1.197 H690 F90AX D080-6-27-16 80.00 6 13.50 50.00 76.00 27.00 A 1.0 Y 1.209 H690 F90AX D100-6-32-16 100.00 6 13.50 50.00 80.00 32.00 B 1.0 Y 1.281 H690 F90AX D100-8-32-16 100.00 8 13.50 50.00 80.00 32.00 B 1.0 Y 1.410 H690 F90AX D125-7-40-16 125.00 7 13.50 63.00 82.00 40.00 B 0.5 Y 2.135 H690 F90AX D125-9-40-16 125.00 9 13.50 63.00 82.00 40.00 B 0.5 Y 2.313 H690 F90AX D160-8-40-16 160.00 8 13.50 63.00 105.00 40.00 C - N 3.481 H690 F90AX D160-10-40-16 160.00 10 13.50 63.00 105.00 40.00 C - N 3.411 H690 F90AX D200-9-60-16 200.00 9 13.50 63.00 135.00 60.00 C - N 5.754 H690 F90AX D200-11-60-16 200.00 11 13.50 63.00 135.00 60.00 C - N 5.088 H690 F90AX D250-12-60-16 250.00 12 13.50 63.00 144.00 60.00 C - N 7.486 • For cutting speed recommendations, see pages 462-468 (1) For adaptation options, see page 461 For inserts, see pages: H690 TNCX/TNKX 1606 (405) Spare Parts Designation H690 F90AX D050-3-22-16 SR 14-591 BLD T20/M7 SW6-T SR M10X40-1638 H690 F90AX D050-4-22-16 SR 14-591 BLD T20/M7 SW6-T SR M10X40-1638 H690 F90AX D063-4-27-16 SR 14-591 BLD T20/M7 SW6-T SR M12X30DIN912 H690 F90AX D063-5-27-16 SR 14-591 BLD T20/M7 SW6-T SR M12X30DIN912 H690 F90AX D080-5-27-16 SR 14-591 BLD T20/M7 SW6-T SR M12X35DIN912 H690 F90AX D080-6-27-16 SR 14-591 BLD T20/M7 SW6-T SR M12X35DIN912 H690 F90AX D100-6-32-16 SR 14-591 BLD T20/M7 SW6-T H690 F90AX D100-8-32-16 SR 14-591 BLD T20/M7 SW6-T H690 F90AX D125-7-40-16 SR 14-591 BLD T20/M7 SW6-T H690 F90AX D125-9-40-16 SR 14-591 BLD T20/M7 SW6-T H690 F90AX D160-8-40-16 SR 14-591 BLD T20/M7 SW6-T H690 F90AX D160-10-40-16 SR 14-591 BLD T20/M7 SW6-T H690 F90AX D200-9-60-16 SR 14-591 BLD T20/M7 SW6-T H690 F90AX D200-11-60-16 SR 14-591 BLD T20/M7 SW6-T H690 F90AX D250-12-60-16 SR 14-591 BLD T20/M7 SW6-T 183
