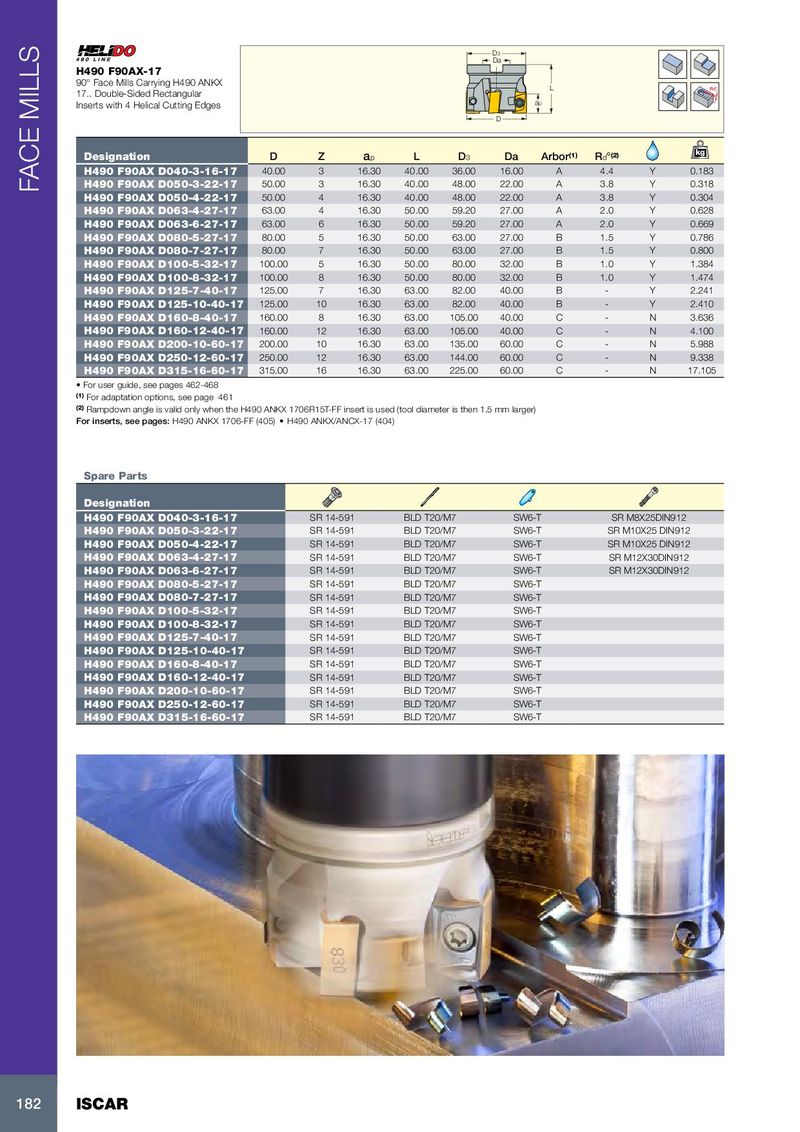

| Da D3 | ||||||||||
| H490 F90AX-17 | ||||||||||
| 90° Face Mills Carrying H490 ANKX | L | Rd° | ||||||||
| 17.. Double-Sided Rectangular Inserts with 4 Helical Cutting Edges | D | ap | ||||||||
| Designation | D | Z | ap | L | D3 | Da | Arbor(1) | Rd°(2) | kg | |
| H490 F90AX D040-3-16-17 | 40.00 | 3 | 16.30 | 40.00 | 36.00 | 16.00 | A | 4.4 | Y | 0.183 |
| H490 F90AX D050-3-22-17 | 50.00 | 3 | 16.30 | 40.00 | 48.00 | 22.00 | A | 3.8 | Y | 0.318 |
| H490 F90AX D050-4-22-17 | 50.00 | 4 | 16.30 | 40.00 | 48.00 | 22.00 | A | 3.8 | Y | 0.304 |
| H490 F90AX D063-4-27-17 | 63.00 | 4 | 16.30 | 50.00 | 59.20 | 27.00 | A | 2.0 | Y | 0.628 |
| H490 F90AX D063-6-27-17 | 63.00 | 6 | 16.30 | 50.00 | 59.20 | 27.00 | A | 2.0 | Y | 0.669 |
| H490 F90AX D080-5-27-17 | 80.00 | 5 | 16.30 | 50.00 | 63.00 | 27.00 | B | 1.5 | Y | 0.786 |
| H490 F90AX D080-7-27-17 | 80.00 | 7 | 16.30 | 50.00 | 63.00 | 27.00 | B | 1.5 | Y | 0.800 |
| H490 F90AX D100-5-32-17 | 100.00 | 5 | 16.30 | 50.00 | 80.00 | 32.00 | B | 1.0 | Y | 1.384 |
| H490 F90AX D100-8-32-17 | 100.00 | 8 | 16.30 | 50.00 | 80.00 | 32.00 | B | 1.0 | Y | 1.474 |
| H490 F90AX D125-7-40-17 | 125.00 | 7 | 16.30 | 63.00 | 82.00 | 40.00 | B | - | Y | 2.241 |
| H490 F90AX D125-10-40-17 | 125.00 | 10 | 16.30 | 63.00 | 82.00 | 40.00 | B | - | Y | 2.410 |
| H490 F90AX D160-8-40-17 | 160.00 | 8 | 16.30 | 63.00 | 105.00 | 40.00 | C | - | N | 3.636 |
| H490 F90AX D160-12-40-17 | 160.00 | 12 | 16.30 | 63.00 | 105.00 | 40.00 | C | - | N | 4.100 |
| H490 F90AX D200-10-60-17 | 200.00 | 10 | 16.30 | 63.00 | 135.00 | 60.00 | C | - | N | 5.988 |
| H490 F90AX D250-12-60-17 | 250.00 | 12 | 16.30 | 63.00 | 144.00 | 60.00 | C | - | N | 9.338 |
| H490 F90AX D315-16-60-17 | 315.00 | 16 | 16.30 | 63.00 | 225.00 | 60.00 | C | - | N | 17.105 |
- For user guide, see pages 462-468
(1) For adaptation options, see page 461 (2) Rampdown angle is valid only when the H490 ANKX 1706R15T-FF insert is used (tool diameter is then 1.5 mm larger) For inserts, see pages: H490 ANKX 1706-FF (405) H490 ANKX/ANCX-17 (404)
Spare Parts
| Designation | ||||
| H490 F90AX D040-3-16-17 | SR 14-591 | BLD T20/M7 | SW6-T | SR M8X25DIN912 |
| H490 F90AX D050-3-22-17 | SR 14-591 | BLD T20/M7 | SW6-T | SR M10X25 DIN912 |
| H490 F90AX D050-4-22-17 | SR 14-591 | BLD T20/M7 | SW6-T | SR M10X25 DIN912 |
| H490 F90AX D063-4-27-17 | SR 14-591 | BLD T20/M7 | SW6-T | SR M12X30DIN912 |
| H490 F90AX D063-6-27-17 | SR 14-591 | BLD T20/M7 | SW6-T | SR M12X30DIN912 |
| H490 F90AX D080-5-27-17 | SR 14-591 | BLD T20/M7 | SW6-T | |
| H490 F90AX D080-7-27-17 | SR 14-591 | BLD T20/M7 | SW6-T | |
| H490 F90AX D100-5-32-17 | SR 14-591 | BLD T20/M7 | SW6-T | |
| H490 F90AX D100-8-32-17 | SR 14-591 | BLD T20/M7 | SW6-T | |
| H490 F90AX D125-7-40-17 | SR 14-591 | BLD T20/M7 | SW6-T | |
| H490 F90AX D125-10-40-17 | SR 14-591 | BLD T20/M7 | SW6-T | |
| H490 F90AX D160-8-40-17 | SR 14-591 | BLD T20/M7 | SW6-T | |
| H490 F90AX D160-12-40-17 | SR 14-591 | BLD T20/M7 | SW6-T | |
| H490 F90AX D200-10-60-17 | SR 14-591 | BLD T20/M7 | SW6-T | |
| H490 F90AX D250-12-60-17 | SR 14-591 | BLD T20/M7 | SW6-T | |
| H490 F90AX D315-16-60-17 | SR 14-591 | BLD T20/M7 | SW6-T |
