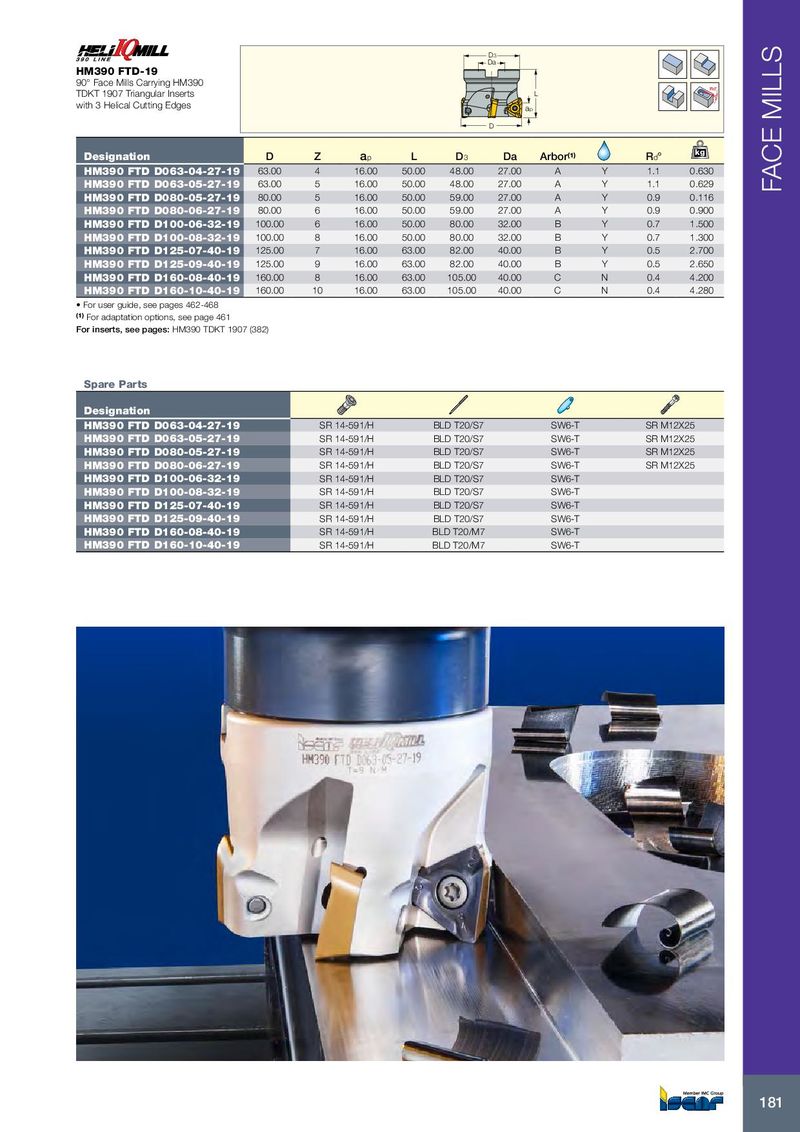

Каталог Iscar вращающийся инструмент 2017

HM390 FTD-19						Da D3
90° Face Mills Carrying HM390 TDKT 1907 Triangular Inserts with 3 Helical Cutting Edges						D L ap				Rd°
Designation	D	Z	ap	L	D3	Da	Arbor(1)		Rd°	kg
HM390 FTD D063-04-27-19	63.00	4	16.00	50.00	48.00	27.00	A	Y	1.1	0.630
HM390 FTD D063-05-27-19	63.00	5	16.00	50.00	48.00	27.00	A	Y	1.1	0.629
HM390 FTD D080-05-27-19	80.00	5	16.00	50.00	59.00	27.00	A	Y	0.9	0.116
HM390 FTD D080-06-27-19	80.00	6	16.00	50.00	59.00	27.00	A	Y	0.9	0.900
HM390 FTD D100-06-32-19	100.00	6	16.00	50.00	80.00	32.00	B	Y	0.7	1.500
HM390 FTD D100-08-32-19	100.00	8	16.00	50.00	80.00	32.00	B	Y	0.7	1.300
HM390 FTD D125-07-40-19	125.00	7	16.00	63.00	82.00	40.00	B	Y	0.5	2.700
HM390 FTD D125-09-40-19	125.00	9	16.00	63.00	82.00	40.00	B	Y	0.5	2.650
HM390 FTD D160-08-40-19	160.00	8	16.00	63.00	105.00	40.00	C	N	0.4	4.200
HM390 FTD D160-10-40-19	160.00	10	16.00	63.00	105.00	40.00	C	N	0.4	4.280

(1) For adaptation options, see page 461 For inserts, see pages: HM390 TDKT 1907 (382)
