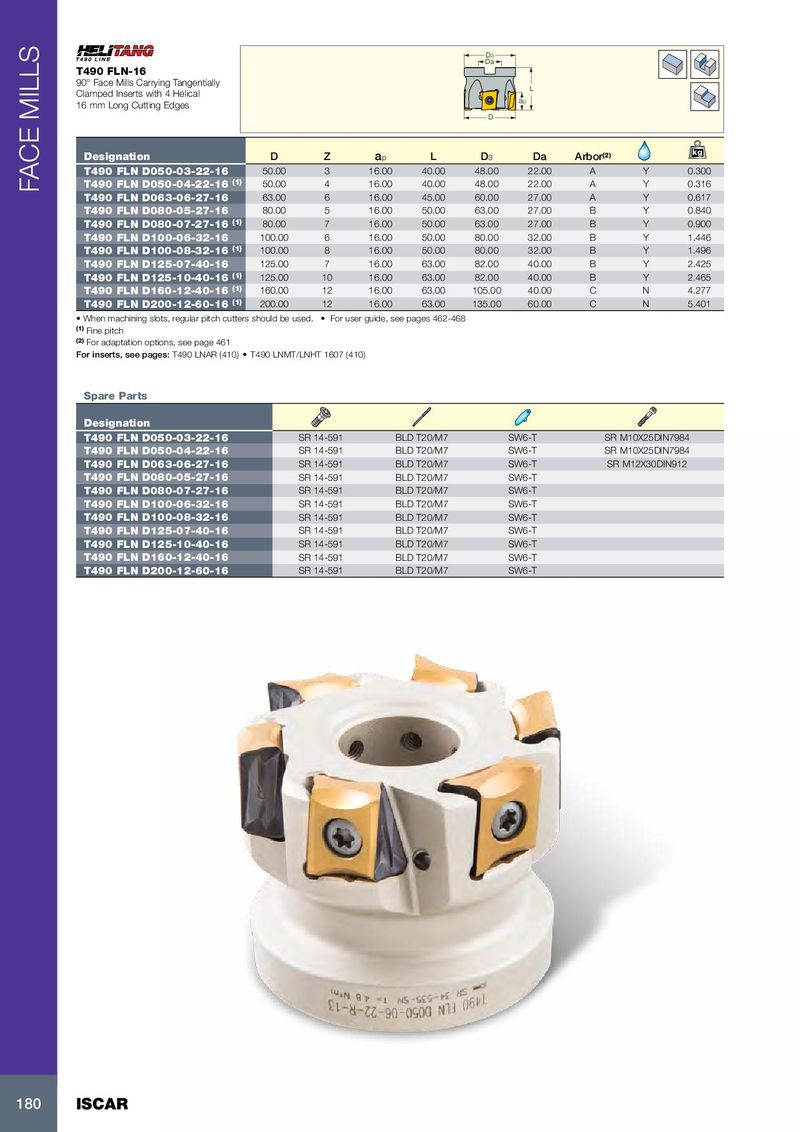

D3 Da T490 FLN-16 90° Face Mills Carrying Tangentially L Clamped Inserts with 4 Helical ap 16 mm Long Cutting Edges D Designation D Z a p L D 3 Da Arbor (2) kg T490 FLN D050-03-22-16 50.00 3 16.00 40.00 48.00 22.00 A Y 0.300 T490 FLN D050-04-22-16 (1) 50.00 4 16.00 40.00 48.00 22.00 A Y 0.316 FACE MILLS T490 FLN D063-06-27-16 63.00 6 16.00 45.00 60.00 27.00 A Y 0.617 T490 FLN D080-05-27-16 80.00 5 16.00 50.00 63.00 27.00 B Y 0.840 T490 FLN D080-07-27-16 (1) 80.00 7 16.00 50.00 63.00 27.00 B Y 0.900 T490 FLN D100-06-32-16 100.00 6 16.00 50.00 80.00 32.00 B Y 1.446 T490 FLN D100-08-32-16 (1) 100.00 8 16.00 50.00 80.00 32.00 B Y 1.496 T490 FLN D125-07-40-16 125.00 7 16.00 63.00 82.00 40.00 B Y 2.425 T490 FLN D125-10-40-16 (1) 125.00 10 16.00 63.00 82.00 40.00 B Y 2.465 T490 FLN D160-12-40-16 (1) 160.00 12 16.00 63.00 105.00 40.00 C N 4.277 T490 FLN D200-12-60-16 (1) 200.00 12 16.00 63.00 135.00 60.00 C N 5.401 • When machining slots, regular pitch cutters should be used. • For user guide, see pages 462-468 (1) Fine pitch (2) For adaptation options, see page 461 For inserts, see pages: T490 LNAR (410) • T490 LNMT/LNHT 1607 (410) Spare Parts Designation T490 FLN D050-03-22-16 SR 14-591 BLD T20/M7 SW6-T SR M10X25DIN7984 T490 FLN D050-04-22-16 SR 14-591 BLD T20/M7 SW6-T SR M10X25DIN7984 T490 FLN D063-06-27-16 SR 14-591 BLD T20/M7 SW6-T SR M12X30DIN912 T490 FLN D080-05-27-16 SR 14-591 BLD T20/M7 SW6-T T490 FLN D080-07-27-16 SR 14-591 BLD T20/M7 SW6-T T490 FLN D100-06-32-16 SR 14-591 BLD T20/M7 SW6-T T490 FLN D100-08-32-16 SR 14-591 BLD T20/M7 SW6-T T490 FLN D125-07-40-16 SR 14-591 BLD T20/M7 SW6-T T490 FLN D125-10-40-16 SR 14-591 BLD T20/M7 SW6-T T490 FLN D160-12-40-16 SR 14-591 BLD T20/M7 SW6-T T490 FLN D200-12-60-16 SR 14-591 BLD T20/M7 SW6-T 180 ISCAR
