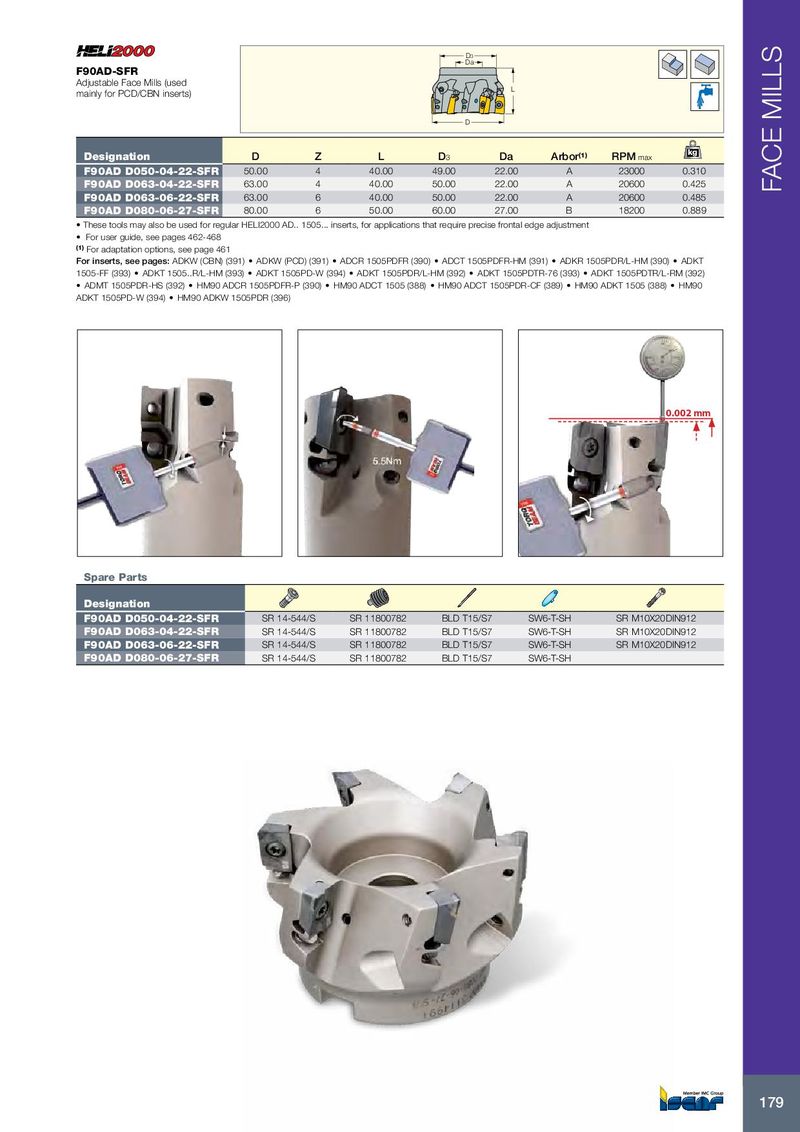

F90AD-SFRDa D3
Adjustable Face Mills (used mainly for PCD/CBN inserts)DL
DesignationDZLD3DaArbor(1)RPMmaxkg
F90AD D050-04-22-SFR50.00440.0049.0022.00A230000.310
F90AD D063-04-22-SFR63.00440.0050.0022.00A206000.425
F90AD D063-06-22-SFR63.00640.0050.0022.00A206000.485
F90AD D080-06-27-SFR80.00650.0060.0027.00B182000.889
  • These tools may also be used for regular HELI2000 AD.. 1505... inserts, for applications that require precise frontal edge adjustment
  • For user guide, see pages 462-468

(1) For adaptation options, see page 461 For inserts, see pages: ADKW (CBN) (391) ADKW (PCD) (391) ADCR 1505PDFR (390) ADCT 1505PDFR-HM (391) ADKR 1505PDR/L-HM (390) ADKT 1505-FF (393) ADKT 1505..R/L-HM (393) ADKT 1505PD-W (394) ADKT 1505PDR/L-HM (392) ADKT 1505PDTR-76 (393) ADKT 1505PDTR/L-RM (392)

  • ADMT 1505PDR-HS (392)
  • HM90 ADCR 1505PDFR-P (390)
  • HM90 ADCT 1505 (388)
  • HM90 ADCT 1505PDR-CF (389)
  • HM90 ADKT 1505 (388)
  • HM90

ADKT 1505PD-W (394) HM90 ADKW 1505PDR (396)

0.002 mm

Spare Parts

Designation

F90AD D050-04-22-SFRSR 14-544/SSR 11800782BLD T15/S7SW6-T-SHSR M10X20DIN912
F90AD D063-04-22-SFRSR 14-544/SSR 11800782BLD T15/S7SW6-T-SHSR M10X20DIN912
F90AD D063-06-22-SFRSR 14-544/SSR 11800782BLD T15/S7SW6-T-SHSR M10X20DIN912
F90AD D080-06-27-SFRSR 14-544/SSR 11800782BLD T15/S7SW6-T-SH
