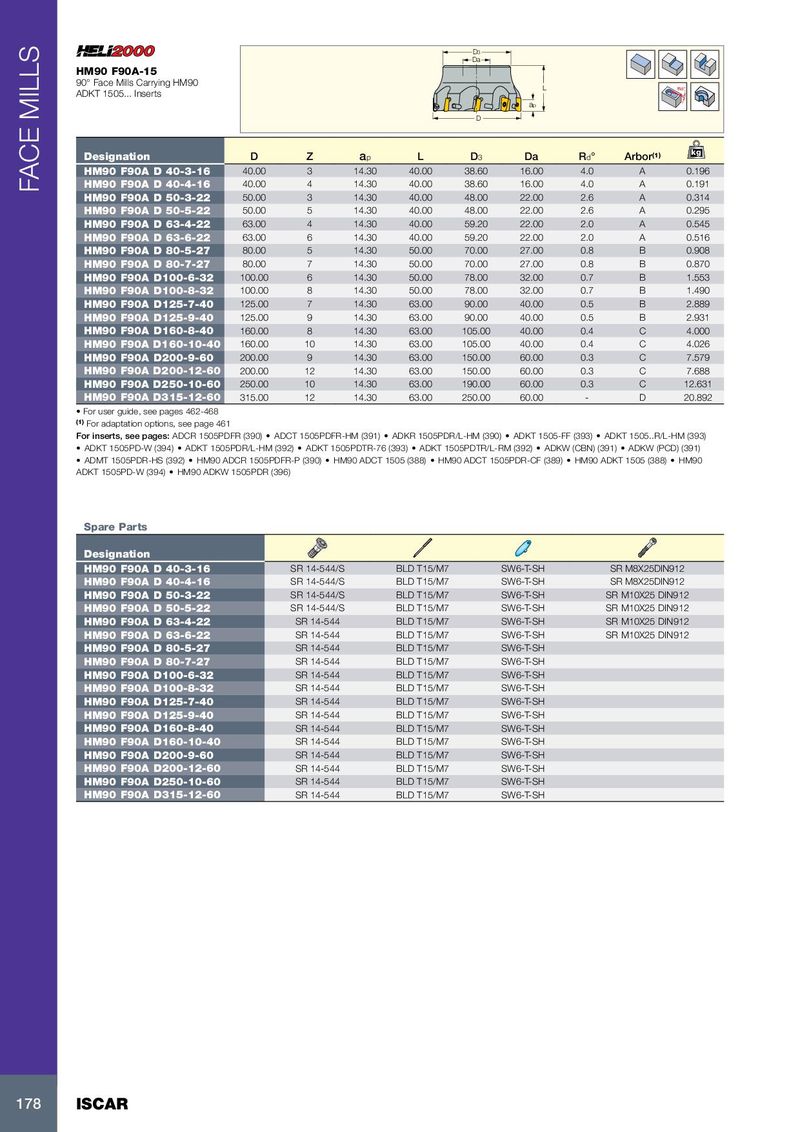

| HM90 F90A-15 ° | Da D3 | ||||||||
| 90 Face Mills Carrying HM90 | L | Rd° | |||||||
| ADKT 1505... Inserts | D | ap | |||||||
| Designation | D | Z | ap | L | D3 | Da | Rd° | Arbor( | 1) kg |
| HM90 F90A D 40-3-16 | 40.00 | 3 | 14.30 | 40.00 | 38.60 | 16.00 | 4.0 | A | 0.196 |
| HM90 F90A D 40-4-16 | 40.00 | 4 | 14.30 | 40.00 | 38.60 | 16.00 | 4.0 | A | 0.191 |
| HM90 F90A D 50-3-22 | 50.00 | 3 | 14.30 | 40.00 | 48.00 | 22.00 | 2.6 | A | 0.314 |
| HM90 F90A D 50-5-22 | 50.00 | 5 | 14.30 | 40.00 | 48.00 | 22.00 | 2.6 | A | 0.295 |
| HM90 F90A D 63-4-22 | 63.00 | 4 | 14.30 | 40.00 | 59.20 | 22.00 | 2.0 | A | 0.545 |
| HM90 F90A D 63-6-22 | 63.00 | 6 | 14.30 | 40.00 | 59.20 | 22.00 | 2.0 | A | 0.516 |
| HM90 F90A D 80-5-27 | 80.00 | 5 | 14.30 | 50.00 | 70.00 | 27.00 | 0.8 | B | 0.908 |
| HM90 F90A D 80-7-27 | 80.00 | 7 | 14.30 | 50.00 | 70.00 | 27.00 | 0.8 | B | 0.870 |
| HM90 F90A D100-6-32 | 100.00 | 6 | 14.30 | 50.00 | 78.00 | 32.00 | 0.7 | B | 1.553 |
| HM90 F90A D100-8-32 | 100.00 | 8 | 14.30 | 50.00 | 78.00 | 32.00 | 0.7 | B | 1.490 |
| HM90 F90A D125-7-40 | 125.00 | 7 | 14.30 | 63.00 | 90.00 | 40.00 | 0.5 | B | 2.889 |
| HM90 F90A D125-9-40 | 125.00 | 9 | 14.30 | 63.00 | 90.00 | 40.00 | 0.5 | B | 2.931 |
| HM90 F90A D160-8-40 | 160.00 | 8 | 14.30 | 63.00 | 105.00 | 40.00 | 0.4 | C | 4.000 |
| HM90 F90A D160-10-40 | 160.00 | 10 | 14.30 | 63.00 | 105.00 | 40.00 | 0.4 | C | 4.026 |
| HM90 F90A D200-9-60 | 200.00 | 9 | 14.30 | 63.00 | 150.00 | 60.00 | 0.3 | C | 7.579 |
| HM90 F90A D200-12-60 | 200.00 | 12 | 14.30 | 63.00 | 150.00 | 60.00 | 0.3 | C | 7.688 |
| HM90 F90A D250-10-60 | 250.00 | 10 | 14.30 | 63.00 | 190.00 | 60.00 | 0.3 | C | 12.631 |
| HM90 F90A D315-12-60 | 315.00 | 12 | 14.30 | 63.00 | 250.00 | 60.00 | - | D | 20.892 |
- For user guide, see pages 462-468
(1) For adaptation options, see page 461 For inserts, see pages: ADCR 1505PDFR (390) ADCT 1505PDFR-HM (391) ADKR 1505PDR/L-HM (390) ADKT 1505-FF (393) ADKT 1505..R/L-HM (393)
- ADKT 1505PD-W (394)
- ADKT 1505PDR/L-HM (392)
- ADKT 1505PDTR-76 (393)
- ADKT 1505PDTR/L-RM (392)
- ADKW (CBN) (391)
- ADKW (PCD) (391)
- ADMT 1505PDR-HS (392)
- HM90 ADCR 1505PDFR-P (390)
- HM90 ADCT 1505 (388)
- HM90 ADCT 1505PDR-CF (389)
- HM90 ADKT 1505 (388)
- HM90
ADKT 1505PD-W (394) HM90 ADKW 1505PDR (396)
| Spare Parts | ||||
| Designation | ||||
| HM90 F90A D 40-3-16 | SR 14-544/S | BLD T15/M7 | SW6-T-SH | SR M8X25DIN912 |
| HM90 F90A D 40-4-16 | SR 14-544/S | BLD T15/M7 | SW6-T-SH | SR M8X25DIN912 |
| HM90 F90A D 50-3-22 | SR 14-544/S | BLD T15/M7 | SW6-T-SH | SR M10X25 DIN912 |
| HM90 F90A D 50-5-22 | SR 14-544/S | BLD T15/M7 | SW6-T-SH | SR M10X25 DIN912 |
| HM90 F90A D 63-4-22 | SR 14-544 | BLD T15/M7 | SW6-T-SH | SR M10X25 DIN912 |
| HM90 F90A D 63-6-22 | SR 14-544 | BLD T15/M7 | SW6-T-SH | SR M10X25 DIN912 |
| HM90 F90A D 80-5-27 | SR 14-544 | BLD T15/M7 | SW6-T-SH | |
| HM90 F90A D 80-7-27 | SR 14-544 | BLD T15/M7 | SW6-T-SH | |
| HM90 F90A D100-6-32 | SR 14-544 | BLD T15/M7 | SW6-T-SH | |
| HM90 F90A D100-8-32 | SR 14-544 | BLD T15/M7 | SW6-T-SH | |
| HM90 F90A D125-7-40 | SR 14-544 | BLD T15/M7 | SW6-T-SH | |
| HM90 F90A D125-9-40 | SR 14-544 | BLD T15/M7 | SW6-T-SH | |
| HM90 F90A D160-8-40 | SR 14-544 | BLD T15/M7 | SW6-T-SH | |
| HM90 F90A D160-10-40 | SR 14-544 | BLD T15/M7 | SW6-T-SH | |
| HM90 F90A D200-9-60 | SR 14-544 | BLD T15/M7 | SW6-T-SH | |
| HM90 F90A D200-12-60 | SR 14-544 | BLD T15/M7 | SW6-T-SH | |
| HM90 F90A D250-10-60 | SR 14-544 | BLD T15/M7 | SW6-T-SH | |
| HM90 F90A D315-12-60 | SR 14-544 | BLD T15/M7 | SW6-T-SH |
