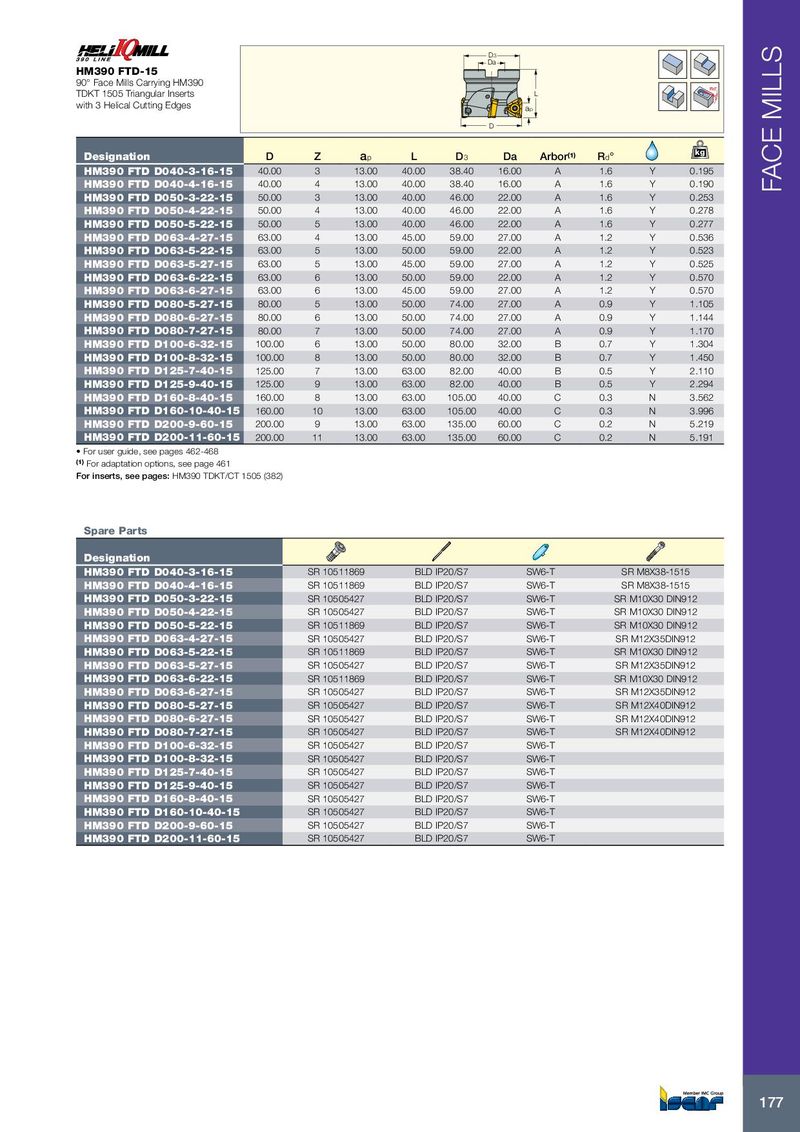

D3 Da HM390 FTD-15 90° Face Mills Carrying HM390 Rd° TDKT 1505 Triangular Inserts L with 3 Helical Cutting Edges ap D kg Designation D Z a p L D 3 Da Arbor (1) R d ° HM390 FTD D040-3-16-15 40.00 3 13.00 40.00 38.40 16.00 A 1.6 Y 0.195 HM390 FTD D040-4-16-15 40.00 4 13.00 40.00 38.40 16.00 A 1.6 Y 0.190 FACE MILLS HM390 FTD D050-3-22-15 50.00 3 13.00 40.00 46.00 22.00 A 1.6 Y 0.253 HM390 FTD D050-4-22-15 50.00 4 13.00 40.00 46.00 22.00 A 1.6 Y 0.278 HM390 FTD D050-5-22-15 50.00 5 13.00 40.00 46.00 22.00 A 1.6 Y 0.277 HM390 FTD D063-4-27-15 63.00 4 13.00 45.00 59.00 27.00 A 1.2 Y 0.536 HM390 FTD D063-5-22-15 63.00 5 13.00 50.00 59.00 22.00 A 1.2 Y 0.523 HM390 FTD D063-5-27-15 63.00 5 13.00 45.00 59.00 27.00 A 1.2 Y 0.525 HM390 FTD D063-6-22-15 63.00 6 13.00 50.00 59.00 22.00 A 1.2 Y 0.570 HM390 FTD D063-6-27-15 63.00 6 13.00 45.00 59.00 27.00 A 1.2 Y 0.570 HM390 FTD D080-5-27-15 80.00 5 13.00 50.00 74.00 27.00 A 0.9 Y 1.105 HM390 FTD D080-6-27-15 80.00 6 13.00 50.00 74.00 27.00 A 0.9 Y 1.144 HM390 FTD D080-7-27-15 80.00 7 13.00 50.00 74.00 27.00 A 0.9 Y 1.170 HM390 FTD D100-6-32-15 100.00 6 13.00 50.00 80.00 32.00 B 0.7 Y 1.304 HM390 FTD D100-8-32-15 100.00 8 13.00 50.00 80.00 32.00 B 0.7 Y 1.450 HM390 FTD D125-7-40-15 125.00 7 13.00 63.00 82.00 40.00 B 0.5 Y 2.110 HM390 FTD D125-9-40-15 125.00 9 13.00 63.00 82.00 40.00 B 0.5 Y 2.294 HM390 FTD D160-8-40-15 160.00 8 13.00 63.00 105.00 40.00 C 0.3 N 3.562 HM390 FTD D160-10-40-15 160.00 10 13.00 63.00 105.00 40.00 C 0.3 N 3.996 HM390 FTD D200-9-60-15 200.00 9 13.00 63.00 135.00 60.00 C 0.2 N 5.219 HM390 FTD D200-11-60-15 200.00 11 13.00 63.00 135.00 60.00 C 0.2 N 5.191 • For user guide, see pages 462-468 (1) For adaptation options, see page 461 For inserts, see pages: HM390 TDKT/CT 1505 (382) Spare Parts Designation HM390 FTD D040-3-16-15 SR 10511869 BLD IP20/S7 SW6-T SR M8X38-1515 HM390 FTD D040-4-16-15 SR 10511869 BLD IP20/S7 SW6-T SR M8X38-1515 HM390 FTD D050-3-22-15 SR 10505427 BLD IP20/S7 SW6-T SR M10X30 DIN912 HM390 FTD D050-4-22-15 SR 10505427 BLD IP20/S7 SW6-T SR M10X30 DIN912 HM390 FTD D050-5-22-15 SR 10511869 BLD IP20/S7 SW6-T SR M10X30 DIN912 HM390 FTD D063-4-27-15 SR 10505427 BLD IP20/S7 SW6-T SR M12X35DIN912 HM390 FTD D063-5-22-15 SR 10511869 BLD IP20/S7 SW6-T SR M10X30 DIN912 HM390 FTD D063-5-27-15 SR 10505427 BLD IP20/S7 SW6-T SR M12X35DIN912 HM390 FTD D063-6-22-15 SR 10511869 BLD IP20/S7 SW6-T SR M10X30 DIN912 HM390 FTD D063-6-27-15 SR 10505427 BLD IP20/S7 SW6-T SR M12X35DIN912 HM390 FTD D080-5-27-15 SR 10505427 BLD IP20/S7 SW6-T SR M12X40DIN912 HM390 FTD D080-6-27-15 SR 10505427 BLD IP20/S7 SW6-T SR M12X40DIN912 HM390 FTD D080-7-27-15 SR 10505427 BLD IP20/S7 SW6-T SR M12X40DIN912 HM390 FTD D100-6-32-15 SR 10505427 BLD IP20/S7 SW6-T HM390 FTD D100-8-32-15 SR 10505427 BLD IP20/S7 SW6-T HM390 FTD D125-7-40-15 SR 10505427 BLD IP20/S7 SW6-T HM390 FTD D125-9-40-15 SR 10505427 BLD IP20/S7 SW6-T HM390 FTD D160-8-40-15 SR 10505427 BLD IP20/S7 SW6-T HM390 FTD D160-10-40-15 SR 10505427 BLD IP20/S7 SW6-T HM390 FTD D200-9-60-15 SR 10505427 BLD IP20/S7 SW6-T HM390 FTD D200-11-60-15 SR 10505427 BLD IP20/S7 SW6-T 177
