| Da D3 | a° | |||||||

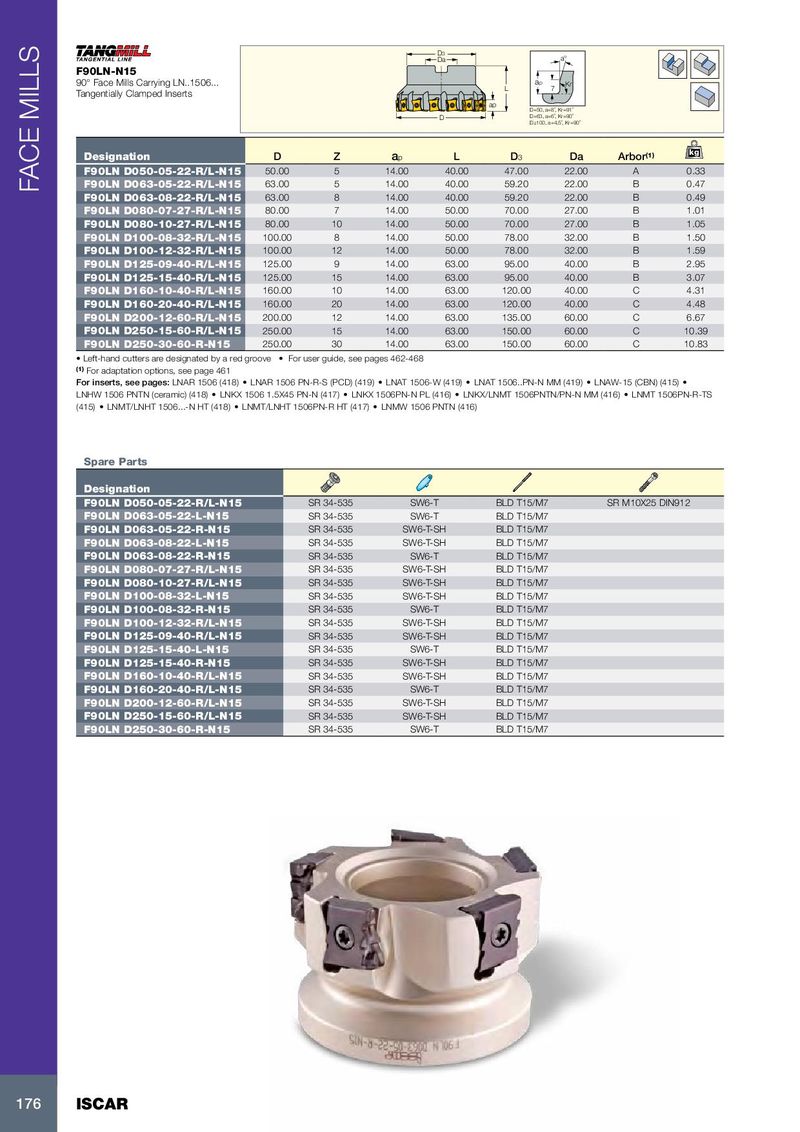

| F90LN-N15 90° Face Mills Carrying LN..1506... | L | Kr 7 ap | ||||||
| Tangentially Clamped Inserts | D | ap D D D | =50, a=8˚, Kr=91˚ =63, a=6˚, Kr=90˚ ≥100, a=4.5˚, Kr=90˚ | |||||
| Designation | D | Z | ap | L | D3 | Da | Arbor(1 | ) kg |
| F90LN D050-05-22-R/L-N15 | 50.00 | 5 | 14.00 | 40.00 | 47.00 | 22.00 | A | 0.33 |
| F90LN D063-05-22-R/L-N15 | 63.00 | 5 | 14.00 | 40.00 | 59.20 | 22.00 | B | 0.47 |
| F90LN D063-08-22-R/L-N15 | 63.00 | 8 | 14.00 | 40.00 | 59.20 | 22.00 | B | 0.49 |
| F90LN D080-07-27-R/L-N15 | 80.00 | 7 | 14.00 | 50.00 | 70.00 | 27.00 | B | 1.01 |
| F90LN D080-10-27-R/L-N15 | 80.00 | 10 | 14.00 | 50.00 | 70.00 | 27.00 | B | 1.05 |
| F90LN D100-08-32-R/L-N15 | 100.00 | 8 | 14.00 | 50.00 | 78.00 | 32.00 | B | 1.50 |
| F90LN D100-12-32-R/L-N15 | 100.00 | 12 | 14.00 | 50.00 | 78.00 | 32.00 | B | 1.59 |
| F90LN D125-09-40-R/L-N15 | 125.00 | 9 | 14.00 | 63.00 | 95.00 | 40.00 | B | 2.95 |
| F90LN D125-15-40-R/L-N15 | 125.00 | 15 | 14.00 | 63.00 | 95.00 | 40.00 | B | 3.07 |
| F90LN D160-10-40-R/L-N15 | 160.00 | 10 | 14.00 | 63.00 | 120.00 | 40.00 | C | 4.31 |
| F90LN D160-20-40-R/L-N15 | 160.00 | 20 | 14.00 | 63.00 | 120.00 | 40.00 | C | 4.48 |
| F90LN D200-12-60-R/L-N15 | 200.00 | 12 | 14.00 | 63.00 | 135.00 | 60.00 | C | 6.67 |
| F90LN D250-15-60-R/L-N15 | 250.00 | 15 | 14.00 | 63.00 | 150.00 | 60.00 | C | 10.39 |
| F90LN D250-30-60-R-N15 | 250.00 | 30 | 14.00 | 63.00 | 150.00 | 60.00 | C | 10.83 |
- Left-hand cutters are designated by a red groove
- For user guide, see pages 462-468
(1) For adaptation options, see page 461 For inserts, see pages: LNAR 1506 (418) LNAR 1506 PN-R-S (PCD) (419) LNAT 1506-W (419) LNAT 1506..PN-N MM (419) LNAW-15 (CBN) (415) LNHW 1506 PNTN (ceramic) (418) LNKX 1506 1.5X45 PN-N (417) LNKX 1506PN-N PL (416) LNKX/LNMT 1506PNTN/PN-N MM (416) LNMT 1506PN-R-TS (415) LNMT/LNHT 1506...-N HT (418) LNMT/LNHT 1506PN-R HT (417) LNMW 1506 PNTN (416)
| Spare Parts | ||||
| Designation | ||||
| F90LN D050-05-22-R/L-N15 | SR 34-535 | SW6-T | BLD T15/M7 | SR M10X25 DIN912 |
| F90LN D063-05-22-L-N15 | SR 34-535 | SW6-T | BLD T15/M7 | |
| F90LN D063-05-22-R-N15 | SR 34-535 | SW6-T-SH | BLD T15/M7 | |
| F90LN D063-08-22-L-N15 | SR 34-535 | SW6-T-SH | BLD T15/M7 | |
| F90LN D063-08-22-R-N15 | SR 34-535 | SW6-T | BLD T15/M7 | |
| F90LN D080-07-27-R/L-N15 | SR 34-535 | SW6-T-SH | BLD T15/M7 | |
| F90LN D080-10-27-R/L-N15 | SR 34-535 | SW6-T-SH | BLD T15/M7 | |
| F90LN D100-08-32-L-N15 | SR 34-535 | SW6-T-SH | BLD T15/M7 | |
| F90LN D100-08-32-R-N15 | SR 34-535 | SW6-T | BLD T15/M7 | |
| F90LN D100-12-32-R/L-N15 | SR 34-535 | SW6-T-SH | BLD T15/M7 | |
| F90LN D125-09-40-R/L-N15 | SR 34-535 | SW6-T-SH | BLD T15/M7 | |
| F90LN D125-15-40-L-N15 | SR 34-535 | SW6-T | BLD T15/M7 | |
| F90LN D125-15-40-R-N15 | SR 34-535 | SW6-T-SH | BLD T15/M7 | |
| F90LN D160-10-40-R/L-N15 | SR 34-535 | SW6-T-SH | BLD T15/M7 | |
| F90LN D160-20-40-R/L-N15 | SR 34-535 | SW6-T | BLD T15/M7 | |
| F90LN D200-12-60-R/L-N15 | SR 34-535 | SW6-T-SH | BLD T15/M7 | |
| F90LN D250-15-60-R/L-N15 | SR 34-535 | SW6-T-SH | BLD T15/M7 | |
| F90LN D250-30-60-R-N15 | SR 34-535 | SW6-T | BLD T15/M7 |
