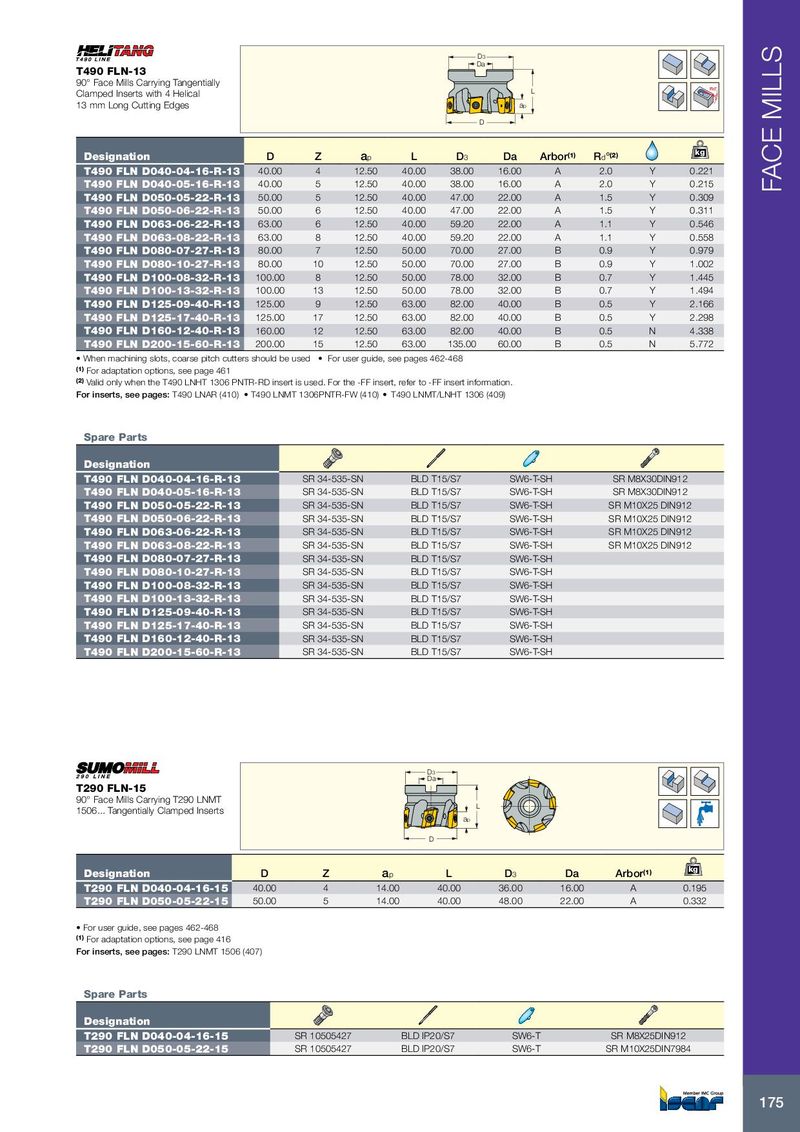

| T490 FLN-13 90° F Mill Ci Ttill | Da D3 | ||||||||||
| ace s arryng angenay | Rd° | ||||||||||
| Clamped Inserts with 4 Helical 13 mm Long Cutting Edges | D | ap | L | ||||||||
| Designation | D | Z | ap | L | D3 | Da | Arbor(1) | Rd°(2) | kg | ||
| T490 FLN D040-04-16-R-13 | 40.00 | 4 | 12.50 | 40.00 | 38.00 | 16.00 | A | 2.0 | Y | 0.221 | |
| T490 FLN D040-05-16-R-13 | 40.00 | 5 | 12.50 | 40.00 | 38.00 | 16.00 | A | 2.0 | Y | 0.215 | |
| T490 FLN D050-05-22-R-13 | 50.00 | 5 | 12.50 | 40.00 | 47.00 | 22.00 | A | 1.5 | Y | 0.309 | |
| T490 FLN D050-06-22-R-13 | 50.00 | 6 | 12.50 | 40.00 | 47.00 | 22.00 | A | 1.5 | Y | 0.311 | |
| T490 FLN D063-06-22-R-13 | 63.00 | 6 | 12.50 | 40.00 | 59.20 | 22.00 | A | 1.1 | Y | 0.546 | |
| T490 FLN D063-08-22-R-13 | 63.00 | 8 | 12.50 | 40.00 | 59.20 | 22.00 | A | 1.1 | Y | 0.558 | |
| T490 FLN D080-07-27-R-13 | 80.00 | 7 | 12.50 | 50.00 | 70.00 | 27.00 | B | 0.9 | Y | 0.979 | |
| T490 FLN D080-10-27-R-13 | 80.00 | 10 | 12.50 | 50.00 | 70.00 | 27.00 | B | 0.9 | Y | 1.002 | |
| T490 FLN D100-08-32-R-13 | 100.00 | 8 | 12.50 | 50.00 | 78.00 | 32.00 | B | 0.7 | Y | 1.445 | |
| T490 FLN D100-13-32-R-13 | 100.00 | 13 | 12.50 | 50.00 | 78.00 | 32.00 | B | 0.7 | Y | 1.494 | |
| T490 FLN D125-09-40-R-13 | 125.00 | 9 | 12.50 | 63.00 | 82.00 | 40.00 | B | 0.5 | Y | 2.166 | |
| T490 FLN D125-17-40-R-13 | 125.00 | 17 | 12.50 | 63.00 | 82.00 | 40.00 | B | 0.5 | Y | 2.298 | |
| T490 FLN D160-12-40-R-13 | 160.00 | 12 | 12.50 | 63.00 | 82.00 | 40.00 | B | 0.5 | N | 4.338 | |
| T490 FLN D200-15-60-R-13 | 200.00 | 15 | 12.50 | 63.00 | 135.00 | 60.00 | B | 0.5 | N | 5.772 |
- When machining slots, coarse pitch cutters should be used
- For user guide, see pages 462-468
(1) For adaptation options, see page 461 (2) Valid only when the T490 LNHT 1306 PNTR-RD insert is used. For the -FF insert, refer to -FF insert information. For inserts, see pages: T490 LNAR (410) T490 LNMT 1306PNTR-FW (410) T490 LNMT/LNHT 1306 (409)
Spare Parts
| Designation | ||||
| T490 FLN D040-04-16-R-13 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH | SR M8X30DIN912 |
| T490 FLN D040-05-16-R-13 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH | SR M8X30DIN912 |
| T490 FLN D050-05-22-R-13 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH | SR M10X25 DIN912 |
| T490 FLN D050-06-22-R-13 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH | SR M10X25 DIN912 |
| T490 FLN D063-06-22-R-13 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH | SR M10X25 DIN912 |
| T490 FLN D063-08-22-R-13 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH | SR M10X25 DIN912 |
| T490 FLN D080-07-27-R-13 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH | |
| T490 FLN D080-10-27-R-13 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH | |
| T490 FLN D100-08-32-R-13 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH | |
| T490 FLN D100-13-32-R-13 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH | |
| T490 FLN D125-09-40-R-13 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH | |
| T490 FLN D125-17-40-R-13 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH | |
| T490 FLN D160-12-40-R-13 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH | |
| T490 FLN D200-15-60-R-13 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH |
T290 FLN-15
90° Face Mills Carrying T290 LNMT 1506... Tangentially Clamped Inserts
Designation D
T290 FLN D040-04-16-15 40.00 T290 FLN D050-05-22-15 50.00
- For user guide, see pages 462-468
(1) For adaptation options, see page 416 For inserts, see pages: T290 LNMT 1506 (407)
Spare Parts
Z
4 5
D 3 Da
L ap D
| a | L | D | Da | Arbor(1) | kg | |||
| p | 3 | |||||||
| 14.00 | 40.00 | 36.00 | 16.00 | A | 0.195 | |||
| 14.00 | 40.00 | 48.00 | 22.00 | A | 0.332 |
| Designation | ||||
| T290 FLN D040-04-16-15 | SR 10505427 | BLD IP20/S7 | SW6-T | SR M8X25DIN912 |
| T290 FLN D050-05-22-15 | SR 10505427 | BLD IP20/S7 | SW6-T | SR M10X25DIN7984 |
