| Da D3 | ||||||||||

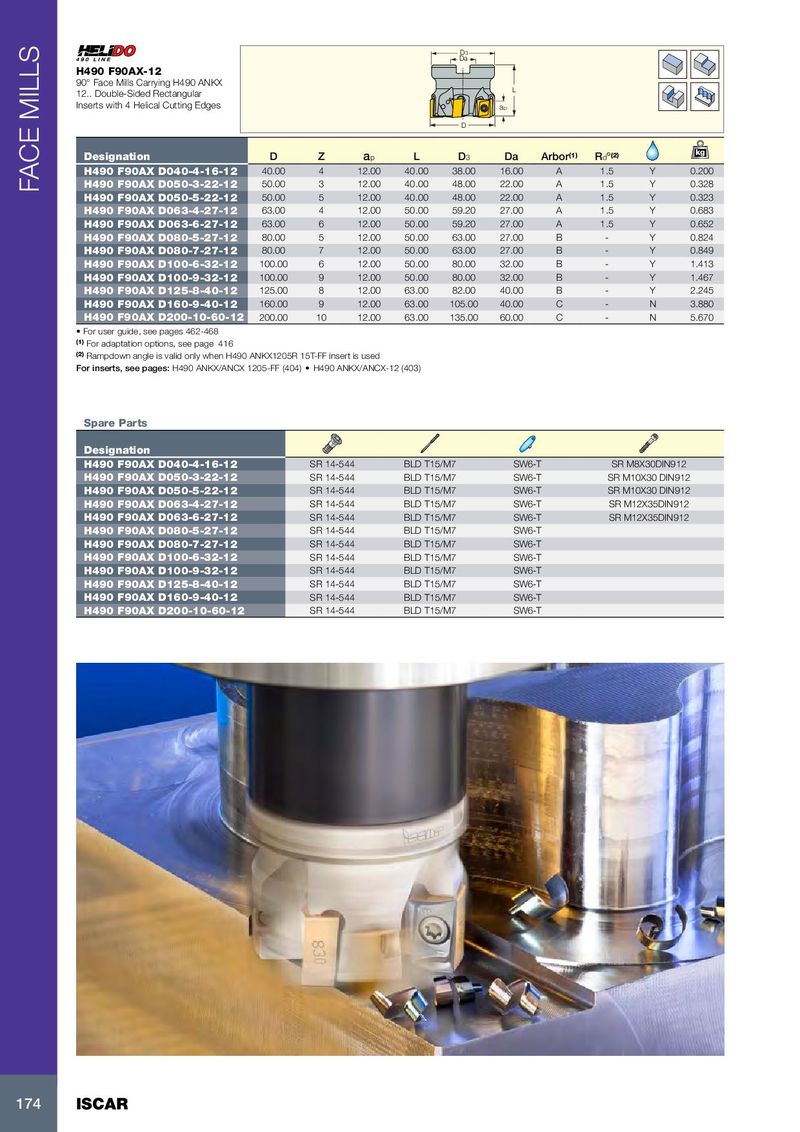

| H490 F90AX-12 | ||||||||||
| 90° Face Mills Carrying H490 ANKX 12.. Double-Sided Rectangular Inserts with 4 Helical Cutting Edges | D | L ap | ||||||||
| Designation | D | Z | ap | L | D3 | Da | Arbor(1) | Rd°(2) | kg | |
| H490 F90AX D040-4-16-12 | 40.00 | 4 | 12.00 | 40.00 | 38.00 | 16.00 | A | 1.5 | Y | 0.200 |
| H490 F90AX D050-3-22-12 | 50.00 | 3 | 12.00 | 40.00 | 48.00 | 22.00 | A | 1.5 | Y | 0.328 |
| H490 F90AX D050-5-22-12 | 50.00 | 5 | 12.00 | 40.00 | 48.00 | 22.00 | A | 1.5 | Y | 0.323 |
| H490 F90AX D063-4-27-12 | 63.00 | 4 | 12.00 | 50.00 | 59.20 | 27.00 | A | 1.5 | Y | 0.683 |
| H490 F90AX D063-6-27-12 | 63.00 | 6 | 12.00 | 50.00 | 59.20 | 27.00 | A | 1.5 | Y | 0.652 |
| H490 F90AX D080-5-27-12 | 80.00 | 5 | 12.00 | 50.00 | 63.00 | 27.00 | B | - | Y | 0.824 |
| H490 F90AX D080-7-27-12 | 80.00 | 7 | 12.00 | 50.00 | 63.00 | 27.00 | B | - | Y | 0.849 |
| H490 F90AX D100-6-32-12 | 100.00 | 6 | 12.00 | 50.00 | 80.00 | 32.00 | B | - | Y | 1.413 |
| H490 F90AX D100-9-32-12 | 100.00 | 9 | 12.00 | 50.00 | 80.00 | 32.00 | B | - | Y | 1.467 |
| H490 F90AX D125-8-40-12 | 125.00 | 8 | 12.00 | 63.00 | 82.00 | 40.00 | B | - | Y | 2.245 |
| H490 F90AX D160-9-40-12 | 160.00 | 9 | 12.00 | 63.00 | 105.00 | 40.00 | C | - | N | 3.880 |
| H490 F90AX D200-10-60-12 | 200.00 | 10 | 12.00 | 63.00 | 135.00 | 60.00 | C | - | N | 5.670 |
- For user guide, see pages 462-468
(1) For adaptation options, see page 416 (2) Rampdown angle is valid only when H490 ANKX1205R 15T-FF insert is used For inserts, see pages: H490 ANKX/ANCX 1205-FF (404) H490 ANKX/ANCX-12 (403)
Spare Parts
| Designation | ||||
| H490 F90AX D040-4-16-12 | SR 14-544 | BLD T15/M7 | SW6-T | SR M8X30DIN912 |
| H490 F90AX D050-3-22-12 | SR 14-544 | BLD T15/M7 | SW6-T | SR M10X30 DIN912 |
| H490 F90AX D050-5-22-12 | SR 14-544 | BLD T15/M7 | SW6-T | SR M10X30 DIN912 |
| H490 F90AX D063-4-27-12 | SR 14-544 | BLD T15/M7 | SW6-T | SR M12X35DIN912 |
| H490 F90AX D063-6-27-12 | SR 14-544 | BLD T15/M7 | SW6-T | SR M12X35DIN912 |
| H490 F90AX D080-5-27-12 | SR 14-544 | BLD T15/M7 | SW6-T | |
| H490 F90AX D080-7-27-12 | SR 14-544 | BLD T15/M7 | SW6-T | |
| H490 F90AX D100-6-32-12 | SR 14-544 | BLD T15/M7 | SW6-T | |
| H490 F90AX D100-9-32-12 | SR 14-544 | BLD T15/M7 | SW6-T | |
| H490 F90AX D125-8-40-12 | SR 14-544 | BLD T15/M7 | SW6-T | |
| H490 F90AX D160-9-40-12 | SR 14-544 | BLD T15/M7 | SW6-T | |
| H490 F90AX D200-10-60-12 | SR 14-544 | BLD T15/M7 | SW6-T |
