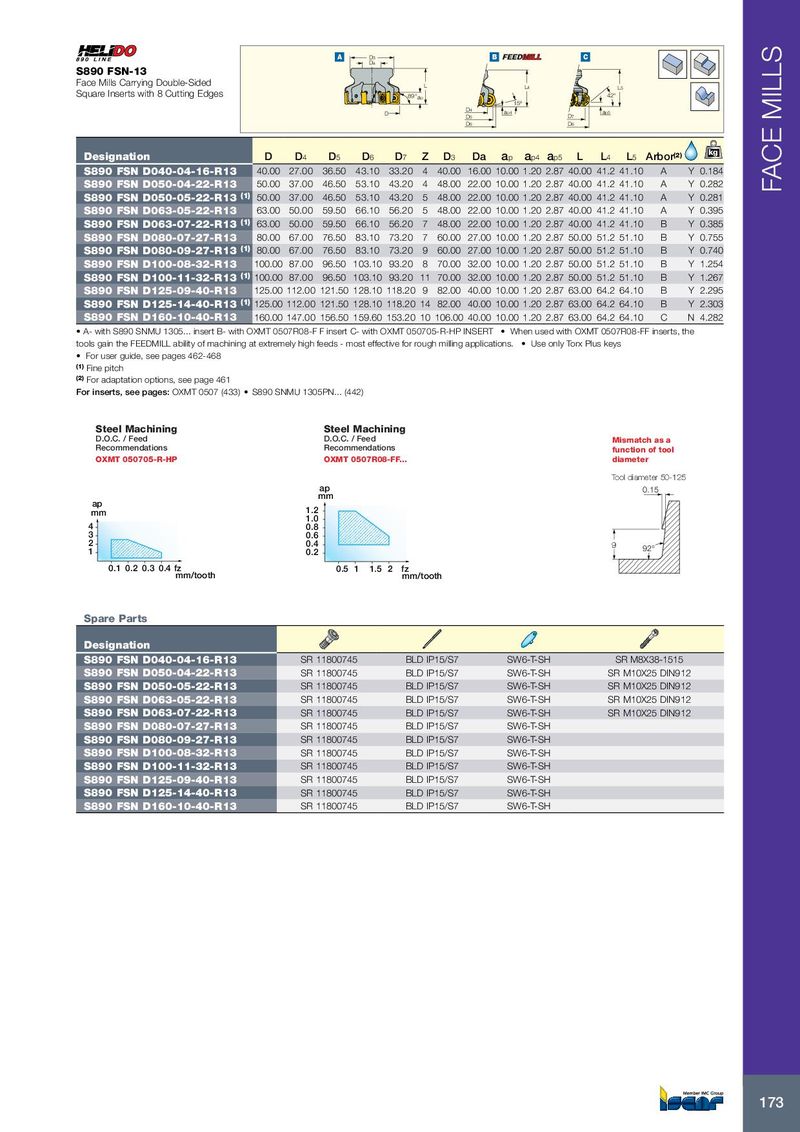

| A | D3 | B | C | |
| S890 FSN-13 | Da |
| L | L4 | L | |||
| Square Inserts with 8 Cutting Edges | 5 | ||||
| 89° a p | 42° | ||||
| 15º |
| D4 | a | a | ||
| D | p4 | D | p5 | |
| D5 | 7 | |||
| D6 | D 6 |
| Designation | D | Arbor(2) L L L a a a Da D Z D D D D | kg |
| 5 4 p5 p4 p 3 7 6 5 4 | |||
| S890 FSN D040-04-16-R13 | 40.00 27.00 36.50 43.10 33.20 4 40.00 16.00 10.00 1.20 2.87 40.00 41.2 41.10 | A | Y 0.184 |
| S890 FSN D050-04-22-R13 | 50.00 37.00 46.50 53.10 43.20 4 48.00 22.00 10.00 1.20 2.87 40.00 41.2 41.10 | A | Y 0.282 |
| S890 FSN D050-05-22-R13 (1) | 50.00 37.00 46.50 53.10 43.20 5 48.00 22.00 10.00 1.20 2.87 40.00 41.2 41.10 | A | Y 0.281 |
| S890 FSN D063-05-22-R13 | 63.00 50.00 59.50 66.10 56.20 5 48.00 22.00 10.00 1.20 2.87 40.00 41.2 41.10 | A | Y 0.395 |
| S890 FSN D063-07-22-R13 (1) | 63.00 50.00 59.50 66.10 56.20 7 48.00 22.00 10.00 1.20 2.87 40.00 41.2 41.10 | B | Y 0.385 |
| S890 FSN D080-07-27-R13 | 80.00 67.00 76.50 83.10 73.20 7 60.00 27.00 10.00 1.20 2.87 50.00 51.2 51.10 | B | Y 0.755 |
| S890 FSN D080-09-27-R13 (1) | 80.00 67.00 76.50 83.10 73.20 9 60.00 27.00 10.00 1.20 2.87 50.00 51.2 51.10 | B | Y 0.740 |
| S890 FSN D100-08-32-R13 | 100.00 87.00 96.50 103.10 93.20 8 70.00 32.00 10.00 1.20 2.87 50.00 51.2 51.10 | B | Y 1.254 |
| S890 FSN D100-11-32-R13 (1) 100.00 87.00 96.50 103.10 93.20 11 70.00 32.00 10.00 1.20 2.87 50.00 51.2 51.10 | B | Y 1.267 | |
| S890 FSN D125-09-40-R13 | 125.00 112.00 121.50 128.10 118.20 9 82.00 40.00 10.00 1.20 2.87 63.00 64.2 64.10 | B | Y 2.295 |
| S890 FSN D125-14-40-R13 (1) 125.00 112.00 121.50 128.10 118.20 14 82.00 40.00 10.00 1.20 2.87 63.00 64.2 64.10 | B | Y 2.303 | |
| S890 FSN D160-10-40-R13 | 160.00 147.00 156.50 159.60 153.20 10 106.00 40.00 10.00 1.20 2.87 63.00 64.2 64.10 | C | N 4.282 |
- A- with S890 SNMU 1305... insert B- with OXMT 0507R08-F F insert C- with OXMT 050705-R-HP INSERT
- When used with OXMT 0507R08-FF inserts, the
tools gain the FEEDMILL ability of machining at extremely high feeds - most effective for rough milling applications. Use only Torx Plus keys
- For user guide, see pages 462-468
(1) Fine pitch (2) For adaptation options, see page 461 For inserts, see pages: OXMT 0507 (433) S890 SNMU 1305PN... (442)
Steel Machining Steel Machining
| D.O.C. / Feed | D.O.C. / Feed | Mismatch as a |
| Recommendations | Recommendations | function of tool |
| OXMT 050705-R-HP | OXMT 0507R08-FF... | diameter |
Tool diameter 50-125 ap 0.15 mm ap
mm 1.2 1.0 4 0.8 3 0.6
| 2 | 0.4 | 9 | |
| 1 | 0.2 | 92° |
0.1 0.2 0.3 0.4 fz 0.5 1 1.5 2 fz mm/tooth mm/tooth
Spare Parts
Designation
| S890 FSN D040-04-16-R13 | SR 11800745 | BLD IP15/S7 | SW6-T-SH | SR M8X38-1515 |
| S890 FSN D050-04-22-R13 | SR 11800745 | BLD IP15/S7 | SW6-T-SH | SR M10X25 DIN912 |
| S890 FSN D050-05-22-R13 | SR 11800745 | BLD IP15/S7 | SW6-T-SH | SR M10X25 DIN912 |
| S890 FSN D063-05-22-R13 | SR 11800745 | BLD IP15/S7 | SW6-T-SH | SR M10X25 DIN912 |
| S890 FSN D063-07-22-R13 | SR 11800745 | BLD IP15/S7 | SW6-T-SH | SR M10X25 DIN912 |
| S890 FSN D080-07-27-R13 | SR 11800745 | BLD IP15/S7 | SW6-T-SH | |
| S890 FSN D080-09-27-R13 | SR 11800745 | BLD IP15/S7 | SW6-T-SH | |
| S890 FSN D100-08-32-R13 | SR 11800745 | BLD IP15/S7 | SW6-T-SH | |
| S890 FSN D100-11-32-R13 | SR 11800745 | BLD IP15/S7 | SW6-T-SH | |
| S890 FSN D125-09-40-R13 | SR 11800745 | BLD IP15/S7 | SW6-T-SH | |
| S890 FSN D125-14-40-R13 | SR 11800745 | BLD IP15/S7 | SW6-T-SH | |
| S890 FSN D160-10-40-R13 | SR 11800745 | BLD IP15/S7 | SW6-T-SH |
