| | Da D3 | a° | | | |

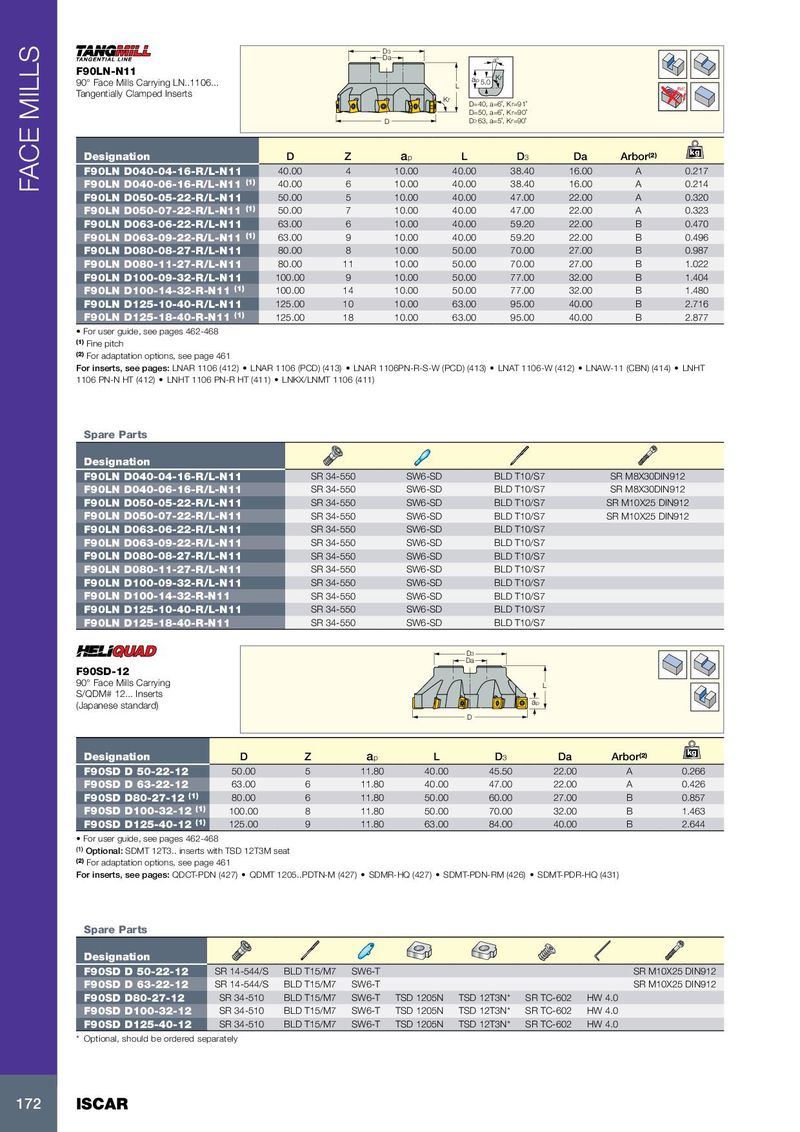

| F90LN-N11 90° Face Mills Carrin LN1106 | | | Kr 50 ap | | | |
| yg ..... | | | L . | | | Rd° |
| Tangentially Clamped Inserts | | | Kr D=40, a=6˚, Kr=91˚ D=50, a=6˚, Kr=90˚ | | | |
| | D | D≥63, a=5˚, Kr=90˚ | | | |
| Designation | D | Z ap | L D3 | Da | Arbor( | 2) kg |
| F90LN D040-04-16-R/L-N11 | 40.00 | 4 10.00 | 40.00 38.40 | 16.00 | A | 0.217 |
| F90LN D040-06-16-R/L-N11(1) | 40.00 | 6 10.00 | 40.00 38.40 | 16.00 | A | 0.214 |
| F90LN D050-05-22-R/L-N11 | 50.00 | 5 10.00 | 40.00 47.00 | 22.00 | A | 0.320 |
| F90LN D050-07-22-R/L-N11(1) | 50.00 | 7 10.00 | 40.00 47.00 | 22.00 | A | 0.323 |
| F90LN D063-06-22-R/L-N11 | 63.00 | 6 10.00 | 40.00 59.20 | 22.00 | B | 0.470 |
| F90LN D063-09-22-R/L-N11(1) | 63.00 | 9 10.00 | 40.00 59.20 | 22.00 | B | 0.496 |
| F90LN D080-08-27-R/L-N11 | 80.00 | 8 10.00 | 50.00 70.00 | 27.00 | B | 0.987 |
| F90LN D080-11-27-R/L-N11 | 80.00 | 11 10.00 | 50.00 70.00 | 27.00 | B | 1.022 |
| F90LN D100-09-32-R/L-N11 | 100.00 | 9 10.00 | 50.00 77.00 | 32.00 | B | 1.404 |
| F90LN D100-14-32-R-N11(1) | 100.00 | 14 10.00 | 50.00 77.00 | 32.00 | B | 1.480 |
| F90LN D125-10-40-R/L-N11 | 125.00 | 10 10.00 | 63.00 95.00 | 40.00 | B | 2.716 |
| F90LN D125-18-40-R-N11(1) | 125.00 | 18 10.00 | 63.00 95.00 | 40.00 | B | 2.877 |
- For user guide, see pages 462-468
(1) Fine pitch (2) For adaptation options, see page 461 For inserts, see pages: LNAR 1106 (412) LNAR 1106 (PCD) (413) LNAR 1106PN-R-S-W (PCD) (413) LNAT 1106-W (412) LNAW-11 (CBN) (414) LNHT 1106 PN-N HT (412) LNHT 1106 PN-R HT (411) LNKX/LNMT 1106 (411)
Spare Parts
| Designation | | | | |
| F90LN D040-04-16-R/L-N11 | SR 34-550 | SW6-SD | BLD T10/S7 | SR M8X30DIN912 |
| F90LN D040-06-16-R/L-N11 | SR 34-550 | SW6-SD | BLD T10/S7 | SR M8X30DIN912 |
| F90LN D050-05-22-R/L-N11 | SR 34-550 | SW6-SD | BLD T10/S7 | SR M10X25 DIN912 |
| F90LN D050-07-22-R/L-N11 | SR 34-550 | SW6-SD | BLD T10/S7 | SR M10X25 DIN912 |
| F90LN D063-06-22-R/L-N11 | SR 34-550 | SW6-SD | BLD T10/S7 | |
| F90LN D063-09-22-R/L-N11 | SR 34-550 | SW6-SD | BLD T10/S7 | |
| F90LN D080-08-27-R/L-N11 | SR 34-550 | SW6-SD | BLD T10/S7 | |
| F90LN D080-11-27-R/L-N11 | SR 34-550 | SW6-SD | BLD T10/S7 | |
| F90LN D100-09-32-R/L-N11 | SR 34-550 | SW6-SD | BLD T10/S7 | |
| F90LN D100-14-32-R-N11 | SR 34-550 | SW6-SD | BLD T10/S7 | |
| F90LN D125-10-40-R/L-N11 | SR 34-550 | SW6-SD | BLD T10/S7 | |
| F90LN D125-18-40-R-N11 | SR 34-550 | SW6-SD | BLD T10/S7 | |
| F90SD-12 | | | | D D | a 3 | | | |
| 90° Face Mills Carrying S/QDM# 12... Inserts (Japanese standard) | | | | D | | L ap | | |
| Designation | D | Z | ap | L | D3 | Da | Arbor(2) | kg |
| F90SD D 50-22-12 | 50.00 | 5 | 11.80 | 40.00 | 45.50 | 22.00 | A | 0.266 |
| F90SD D 63-22-12 | 63.00 | 6 | 11.80 | 40.00 | 47.00 | 22.00 | A | 0.426 |
| F90SD D80-27-12(1) | 80.00 | 6 | 11.80 | 50.00 | 60.00 | 27.00 | B | 0.857 |
| F90SD D100-32-12(1) | 100.00 | 8 | 11.80 | 50.00 | 70.00 | 32.00 | B | 1.463 |
| F90SD D125-40-12(1) | 125.00 | 9 | 11.80 | 63.00 | 84.00 | 40.00 | B | 2.644 |
- For user guide, see pages 462-468
(1) Optional: SDMT 12T3.. inserts with TSD 12T3M seat (2) For adaptation options, see page 461 For inserts, see pages: QDCT-PDN (427) QDMT 1205..PDTN-M (427) SDMR-HQ (427) SDMT-PDN-RM (426) SDMT-PDR-HQ (431)
| Spare Parts | | | | | | | | |
| Designation | | | | | | | | |
| F90SD D 50-22-12 | SR 14-544/S | BLD T15/M7 | SW6-T | | | | | SR M10X25 DIN912 |
| F90SD D 63-22-12 | SR 14-544/S | BLD T15/M7 | SW6-T | | | | | SR M10X25 DIN912 |
| F90SD D80-27-12 | SR 34-510 | BLD T15/M7 | SW6-T | TSD 1205N | TSD 12T3N | SR TC-602 | HW 4.0 | |
| F90SD D100-32-12 | SR 34-510 | BLD T15/M7 | SW6-T | TSD 1205N | TSD 12T3N | SR TC-602 | HW 4.0 | |
| F90SD D125-40-12 | SR 34-510 | BLD T15/M7 | SW6-T | TSD 1205N | TSD 12T3N | SR TC-602 | HW 4.0 | |
