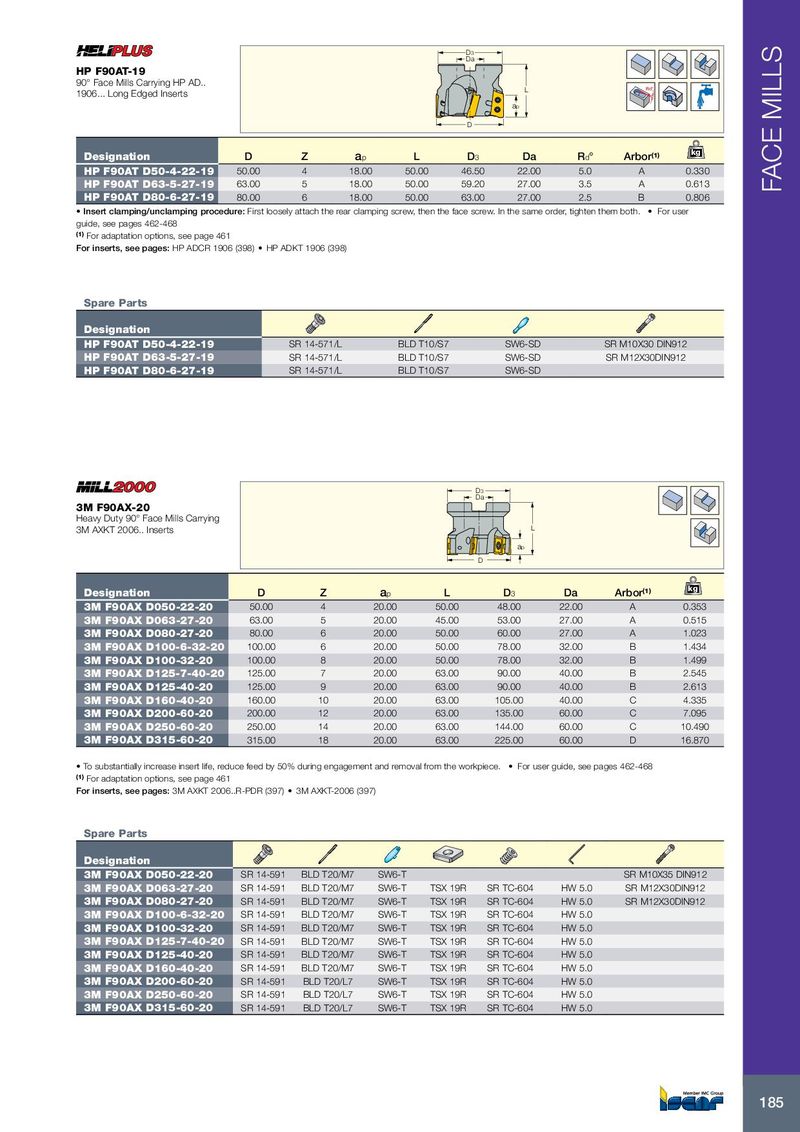

Каталог Iscar вращающийся инструмент 2017 - страница 189
Навигация
Каталог Iscar токарные пластины ISO 2022
Каталог Iscar инструмент для фрезерования
Каталог Iscar решения для глубокого сверления
Каталог Iscar полирующие фрезы
Новые режущие инструменты Iscar 2026
Каталог Iscar новые продукты 2018
| HP F90AT-19 ° | Da D3 | ||||||||
| 90 Face Mills Carrying HP AD.. 1906... Long Edged Inserts | D | ap L | Rd° | ||||||
| Designation | D | Z | ap | L | D3 | Da | Rd° | Arbor(1 | ) kg |
| HP F90AT D50-4-22-19 | 50.00 | 4 | 18.00 | 50.00 | 46.50 | 22.00 | 5.0 | A | 0.330 |
| HP F90AT D63-5-27-19 | 63.00 | 5 | 18.00 | 50.00 | 59.20 | 27.00 | 3.5 | A | 0.613 |
| HP F90AT D80-6-27-19 | 80.00 | 6 | 18.00 | 50.00 | 63.00 | 27.00 | 2.5 | B | 0.806 |
- Insert clamping/unclamping procedure: First loosely attach the rear clamping screw, then the face screw. In the same order, tighten them both.
- For user
guide, see pages 462-468 (1) For adaptation options, see page 461 For inserts, see pages: HP ADCR 1906 (398) HP ADKT 1906 (398)
Spare Parts
| Designation | ||||
| HP F90AT D50-4-22-19 | SR 14-571/L | BLD T10/S7 | SW6-SD | SR M10X30 DIN912 |
| HP F90AT D63-5-27-19 | SR 14-571/L | BLD T10/S7 | SW6-SD | SR M12X30DIN912 |
| HP F90AT D80-6-27-19 | SR 14-571/L | BLD T10/S7 | SW6-SD |
D3 Da
3M F90AX-20
Heavy Duty 90° Face Mills Carrying 3M AXKT 2006.. Inserts L ap D
| Designation | D | Z | a L | D Da | Arbor(1) | kg | ||
| p | 3 | |||||||
| 3M F90AX D050-22-20 | 50.00 | 4 | 20.00 | 50.00 | 48.00 | 22.00 | A | 0.353 |
| 3M F90AX D063-27-20 | 63.00 | 5 | 20.00 | 45.00 | 53.00 | 27.00 | A | 0.515 |
| 3M F90AX D080-27-20 | 80.00 | 6 | 20.00 | 50.00 | 60.00 | 27.00 | A | 1.023 |
| 3M F90AX D100-6-32-20 | 100.00 | 6 | 20.00 | 50.00 | 78.00 | 32.00 | B | 1.434 |
| 3M F90AX D100-32-20 | 100.00 | 8 | 20.00 | 50.00 | 78.00 | 32.00 | B | 1.499 |
| 3M F90AX D125-7-40-20 | 125.00 | 7 | 20.00 | 63.00 | 90.00 | 40.00 | B | 2.545 |
| 3M F90AX D125-40-20 | 125.00 | 9 | 20.00 | 63.00 | 90.00 | 40.00 | B | 2.613 |
| 3M F90AX D160-40-20 | 160.00 | 10 | 20.00 | 63.00 | 105.00 | 40.00 | C | 4.335 |
| 3M F90AX D200-60-20 | 200.00 | 12 | 20.00 | 63.00 | 135.00 | 60.00 | C | 7.095 |
| 3M F90AX D250-60-20 | 250.00 | 14 | 20.00 | 63.00 | 144.00 | 60.00 | C | 10.490 |
| 3M F90AX D315-60-20 | 315.00 | 18 | 20.00 | 63.00 | 225.00 | 60.00 | D | 16.870 |
- To substantially increase insert life, reduce feed by 50% during engagement and removal from the workpiece.
- For user guide, see pages 462-468
(1) For adaptation options, see page 461 For inserts, see pages: 3M AXKT 2006..R-PDR (397) 3M AXKT-2006 (397)
Spare Parts
| Designation | |||||||
| 3M F90AX D050-22-20 | SR 14-591 | BLD T20/M7 | SW6-T | SR M10X35 DIN912 | |||
| 3M F90AX D063-27-20 | SR 14-591 | BLD T20/M7 | SW6-T | TSX 19R | SR TC-604 | HW 5.0 | SR M12X30DIN912 |
| 3M F90AX D080-27-20 | SR 14-591 | BLD T20/M7 | SW6-T | TSX 19R | SR TC-604 | HW 5.0 | SR M12X30DIN912 |
| 3M F90AX D100-6-32-20 | SR 14-591 | BLD T20/M7 | SW6-T | TSX 19R | SR TC-604 | HW 5.0 | |
| 3M F90AX D100-32-20 | SR 14-591 | BLD T20/M7 | SW6-T | TSX 19R | SR TC-604 | HW 5.0 | |
| 3M F90AX D125-7-40-20 | SR 14-591 | BLD T20/M7 | SW6-T | TSX 19R | SR TC-604 | HW 5.0 | |
| 3M F90AX D125-40-20 | SR 14-591 | BLD T20/M7 | SW6-T | TSX 19R | SR TC-604 | HW 5.0 | |
| 3M F90AX D160-40-20 | SR 14-591 | BLD T20/M7 | SW6-T | TSX 19R | SR TC-604 | HW 5.0 | |
| 3M F90AX D200-60-20 | SR 14-591 | BLD T20/L7 | SW6-T | TSX 19R | SR TC-604 | HW 5.0 | |
| 3M F90AX D250-60-20 | SR 14-591 | BLD T20/L7 | SW6-T | TSX 19R | SR TC-604 | HW 5.0 | |
| 3M F90AX D315-60-20 | SR 14-591 | BLD T20/L7 | SW6-T | TSX 19R | SR TC-604 | HW 5.0 |
