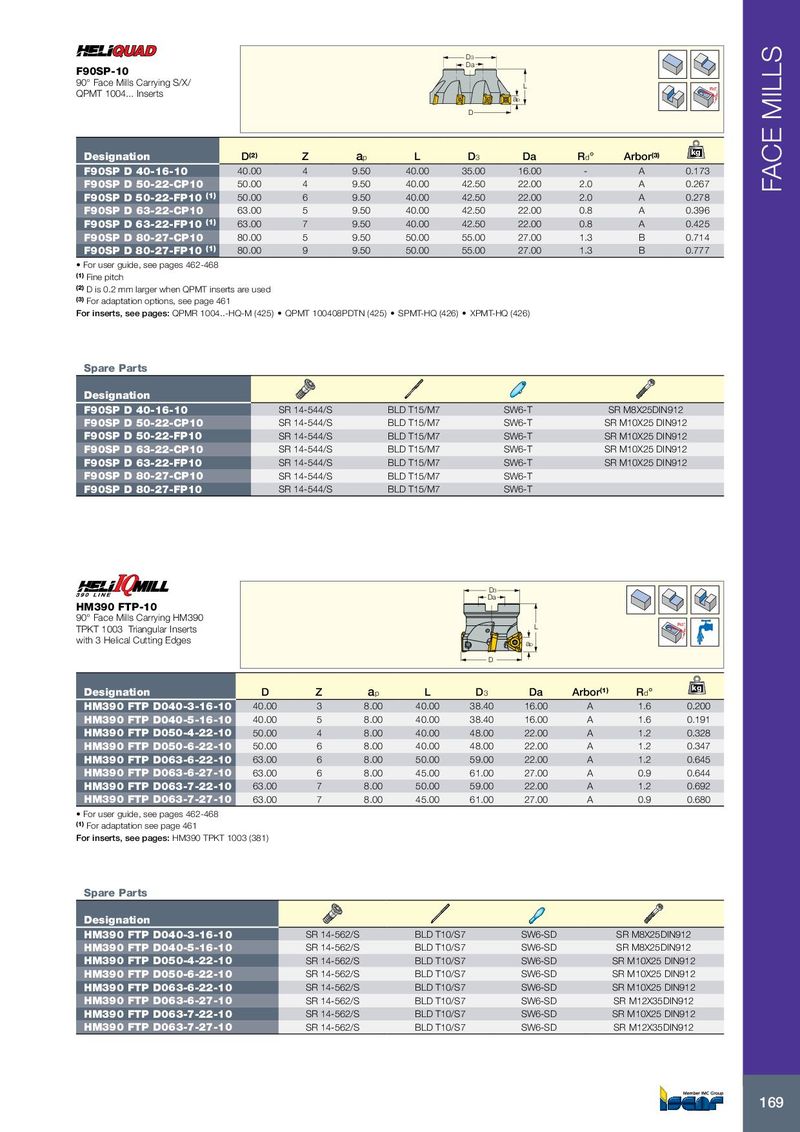

| F90SP-10 ° | | | | | Da D3 | | | |
| 90 Face Mills Carrying S/X/ QPMT 1004... Inserts | | | | | D | L ap | | Rd° |
| Designation | D(2) | Z | ap | L | D3 | Da | Rd° | Arbor(3) kg |
| F90SP D 40-16-10 | 40.00 | 4 | 9.50 | 40.00 | 35.00 | 16.00 | - | A 0.173 |
| F90SP D 50-22-CP10 | 50.00 | 4 | 9.50 | 40.00 | 42.50 | 22.00 | 2.0 | A 0.267 |
| F90SP D 50-22-FP10(1) | 50.00 | 6 | 9.50 | 40.00 | 42.50 | 22.00 | 2.0 | A 0.278 |
| F90SP D 63-22-CP10 | 63.00 | 5 | 9.50 | 40.00 | 42.50 | 22.00 | 0.8 | A 0.396 |
| F90SP D 63-22-FP10(1) | 63.00 | 7 | 9.50 | 40.00 | 42.50 | 22.00 | 0.8 | A 0.425 |
| F90SP D 80-27-CP10 | 80.00 | 5 | 9.50 | 50.00 | 55.00 | 27.00 | 1.3 | B 0.714 |
| F90SP D 80-27-FP10(1) | 80.00 | 9 | 9.50 | 50.00 | 55.00 | 27.00 | 1.3 | B 0.777 |
- For user guide, see pages 462-468
(1) Fine pitch (2) D is 0.2 mm larger when QPMT inserts are used (3) For adaptation options, see page 461 For inserts, see pages: QPMR 1004..-HQ-M (425) QPMT 100408PDTN (425) SPMT-HQ (426) XPMT-HQ (426)
Spare Parts
| Designation | | | | |
| F90SP D 40-16-10 | SR 14-544/S | BLD T15/M7 | SW6-T | SR M8X25DIN912 |
| F90SP D 50-22-CP10 | SR 14-544/S | BLD T15/M7 | SW6-T | SR M10X25 DIN912 |
| F90SP D 50-22-FP10 | SR 14-544/S | BLD T15/M7 | SW6-T | SR M10X25 DIN912 |
| F90SP D 63-22-CP10 | SR 14-544/S | BLD T15/M7 | SW6-T | SR M10X25 DIN912 |
| F90SP D 63-22-FP10 | SR 14-544/S | BLD T15/M7 | SW6-T | SR M10X25 DIN912 |
| F90SP D 80-27-CP10 | SR 14-544/S | BLD T15/M7 | SW6-T | |
| F90SP D 80-27-FP10 | SR 14-544/S | BLD T15/M7 | SW6-T | |
| HM390 FTP-10 | | | | | Da D3 | | | | |
| 90° Face Mills Carrying HM390 TPKT 1003 Triangular Inserts with 3 Helical Cutting Edges | | | | | D | L ap | | | Rd° |
| Designation | D | Z | ap | L | D3 | Da | Arbor(1) | Rd° | kg |
| HM390 FTP D040-3-16-10 | 40.00 | 3 | 8.00 | 40.00 | 38.40 | 16.00 | A | 1.6 | 0.200 |
| HM390 FTP D040-5-16-10 | 40.00 | 5 | 8.00 | 40.00 | 38.40 | 16.00 | A | 1.6 | 0.191 |
| HM390 FTP D050-4-22-10 | 50.00 | 4 | 8.00 | 40.00 | 48.00 | 22.00 | A | 1.2 | 0.328 |
| HM390 FTP D050-6-22-10 | 50.00 | 6 | 8.00 | 40.00 | 48.00 | 22.00 | A | 1.2 | 0.347 |
| HM390 FTP D063-6-22-10 | 63.00 | 6 | 8.00 | 50.00 | 59.00 | 22.00 | A | 1.2 | 0.645 |
| HM390 FTP D063-6-27-10 | 63.00 | 6 | 8.00 | 45.00 | 61.00 | 27.00 | A | 0.9 | 0.644 |
| HM390 FTP D063-7-22-10 | 63.00 | 7 | 8.00 | 50.00 | 59.00 | 22.00 | A | 1.2 | 0.692 |
| HM390 FTP D063-7-27-10 | 63.00 | 7 | 8.00 | 45.00 | 61.00 | 27.00 | A | 0.9 | 0.680 |
- For user guide, see pages 462-468
(1) For adaptation see page 461 For inserts, see pages: HM390 TPKT 1003 (381)
Spare Parts
| Designation | | | | |
| HM390 FTP D040-3-16-10 | SR 14-562/S | BLD T10/S7 | SW6-SD | SR M8X25DIN912 |
| HM390 FTP D040-5-16-10 | SR 14-562/S | BLD T10/S7 | SW6-SD | SR M8X25DIN912 |
| HM390 FTP D050-4-22-10 | SR 14-562/S | BLD T10/S7 | SW6-SD | SR M10X25 DIN912 |
| HM390 FTP D050-6-22-10 | SR 14-562/S | BLD T10/S7 | SW6-SD | SR M10X25 DIN912 |
| HM390 FTP D063-6-22-10 | SR 14-562/S | BLD T10/S7 | SW6-SD | SR M10X25 DIN912 |
| HM390 FTP D063-6-27-10 | SR 14-562/S | BLD T10/S7 | SW6-SD | SR M12X35DIN912 |
| HM390 FTP D063-7-22-10 | SR 14-562/S | BLD T10/S7 | SW6-SD | SR M10X25 DIN912 |
| HM390 FTP D063-7-27-10 | SR 14-562/S | BLD T10/S7 | SW6-SD | SR M12X35DIN912 |
