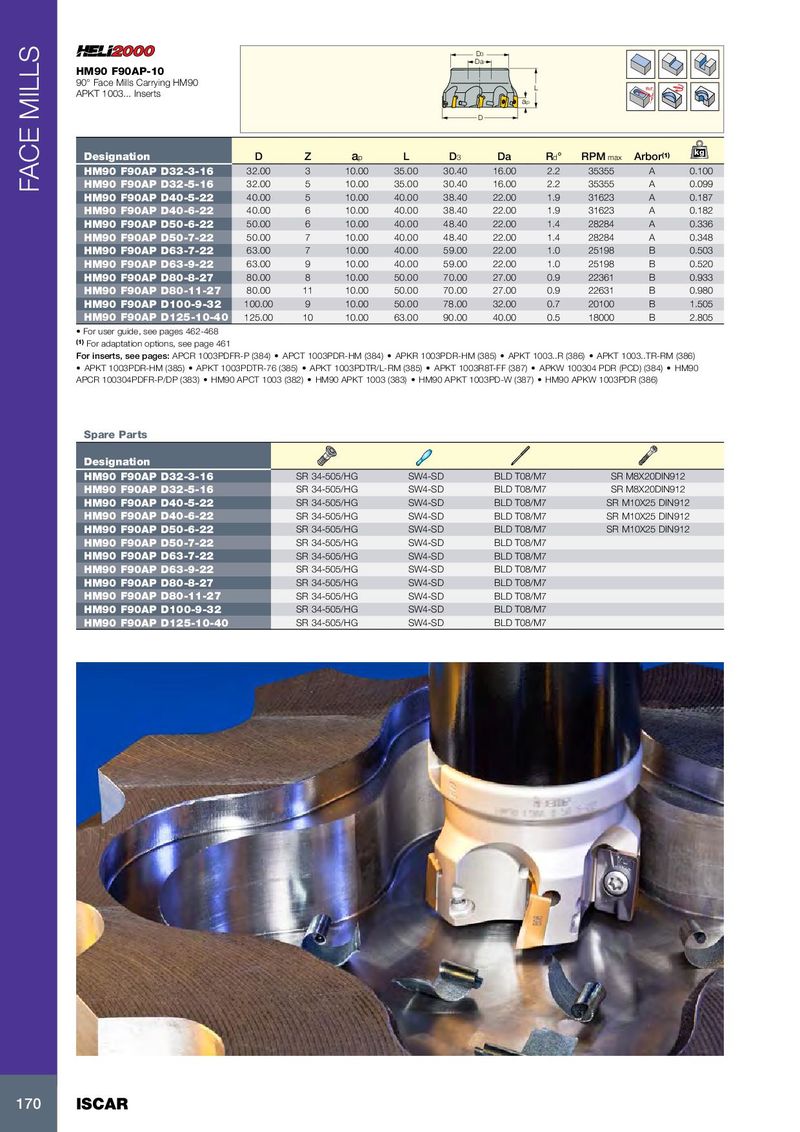

| HM90 F90AP-10 ° | Da D3 | |||||||||
| 90 Face Mills Carrying HM90 APKT 1003... Inserts | D ap | L | Rd° | |||||||
| Designation | D | Z | ap | L | D3 | Da | Rd° | RPMmax | Arbo | r(1) kg |
| HM90 F90AP D32-3-16 | 32.00 | 3 | 10.00 | 35.00 | 30.40 | 16.00 | 2.2 | 35355 | A | 0.100 |
| HM90 F90AP D32-5-16 | 32.00 | 5 | 10.00 | 35.00 | 30.40 | 16.00 | 2.2 | 35355 | A | 0.099 |
| HM90 F90AP D40-5-22 | 40.00 | 5 | 10.00 | 40.00 | 38.40 | 22.00 | 1.9 | 31623 | A | 0.187 |
| HM90 F90AP D40-6-22 | 40.00 | 6 | 10.00 | 40.00 | 38.40 | 22.00 | 1.9 | 31623 | A | 0.182 |
| HM90 F90AP D50-6-22 | 50.00 | 6 | 10.00 | 40.00 | 48.40 | 22.00 | 1.4 | 28284 | A | 0.336 |
| HM90 F90AP D50-7-22 | 50.00 | 7 | 10.00 | 40.00 | 48.40 | 22.00 | 1.4 | 28284 | A | 0.348 |
| HM90 F90AP D63-7-22 | 63.00 | 7 | 10.00 | 40.00 | 59.00 | 22.00 | 1.0 | 25198 | B | 0.503 |
| HM90 F90AP D63-9-22 | 63.00 | 9 | 10.00 | 40.00 | 59.00 | 22.00 | 1.0 | 25198 | B | 0.520 |
| HM90 F90AP D80-8-27 | 80.00 | 8 | 10.00 | 50.00 | 70.00 | 27.00 | 0.9 | 22361 | B | 0.933 |
| HM90 F90AP D80-11-27 | 80.00 | 11 | 10.00 | 50.00 | 70.00 | 27.00 | 0.9 | 22631 | B | 0.980 |
| HM90 F90AP D100-9-32 | 100.00 | 9 | 10.00 | 50.00 | 78.00 | 32.00 | 0.7 | 20100 | B | 1.505 |
| HM90 F90AP D125-10-40 | 125.00 | 10 | 10.00 | 63.00 | 90.00 | 40.00 | 0.5 | 18000 | B | 2.805 |
- For user guide, see pages 462-468
(1) For adaptation options, see page 461 For inserts, see pages: APCR 1003PDFR-P (384) APCT 1003PDR-HM (384) APKR 1003PDR-HM (385) APKT 1003..R (386) APKT 1003..TR-RM (386)
- APKT 1003PDR-HM (385)
- APKT 1003PDTR-76 (385)
- APKT 1003PDTR/L-RM (385)
- APKT 1003R8T-FF (387)
- APKW 100304 PDR (PCD) (384)
- HM90
APCR 100304PDFR-P/DP (383) HM90 APCT 1003 (382) HM90 APKT 1003 (383) HM90 APKT 1003PD-W (387) HM90 APKW 1003PDR (386)
Spare Parts
| Designation | ||||
| HM90 F90AP D32-3-16 | SR 34-505/HG | SW4-SD | BLD T08/M7 | SR M8X20DIN912 |
| HM90 F90AP D32-5-16 | SR 34-505/HG | SW4-SD | BLD T08/M7 | SR M8X20DIN912 |
| HM90 F90AP D40-5-22 | SR 34-505/HG | SW4-SD | BLD T08/M7 | SR M10X25 DIN912 |
| HM90 F90AP D40-6-22 | SR 34-505/HG | SW4-SD | BLD T08/M7 | SR M10X25 DIN912 |
| HM90 F90AP D50-6-22 | SR 34-505/HG | SW4-SD | BLD T08/M7 | SR M10X25 DIN912 |
| HM90 F90AP D50-7-22 | SR 34-505/HG | SW4-SD | BLD T08/M7 | |
| HM90 F90AP D63-7-22 | SR 34-505/HG | SW4-SD | BLD T08/M7 | |
| HM90 F90AP D63-9-22 | SR 34-505/HG | SW4-SD | BLD T08/M7 | |
| HM90 F90AP D80-8-27 | SR 34-505/HG | SW4-SD | BLD T08/M7 | |
| HM90 F90AP D80-11-27 | SR 34-505/HG | SW4-SD | BLD T08/M7 | |
| HM90 F90AP D100-9-32 | SR 34-505/HG | SW4-SD | BLD T08/M7 | |
| HM90 F90AP D125-10-40 | SR 34-505/HG | SW4-SD | BLD T08/M7 |
