| | | | Da D3 | | | | |
| H490 F90AX-09 | | | | | | | | |

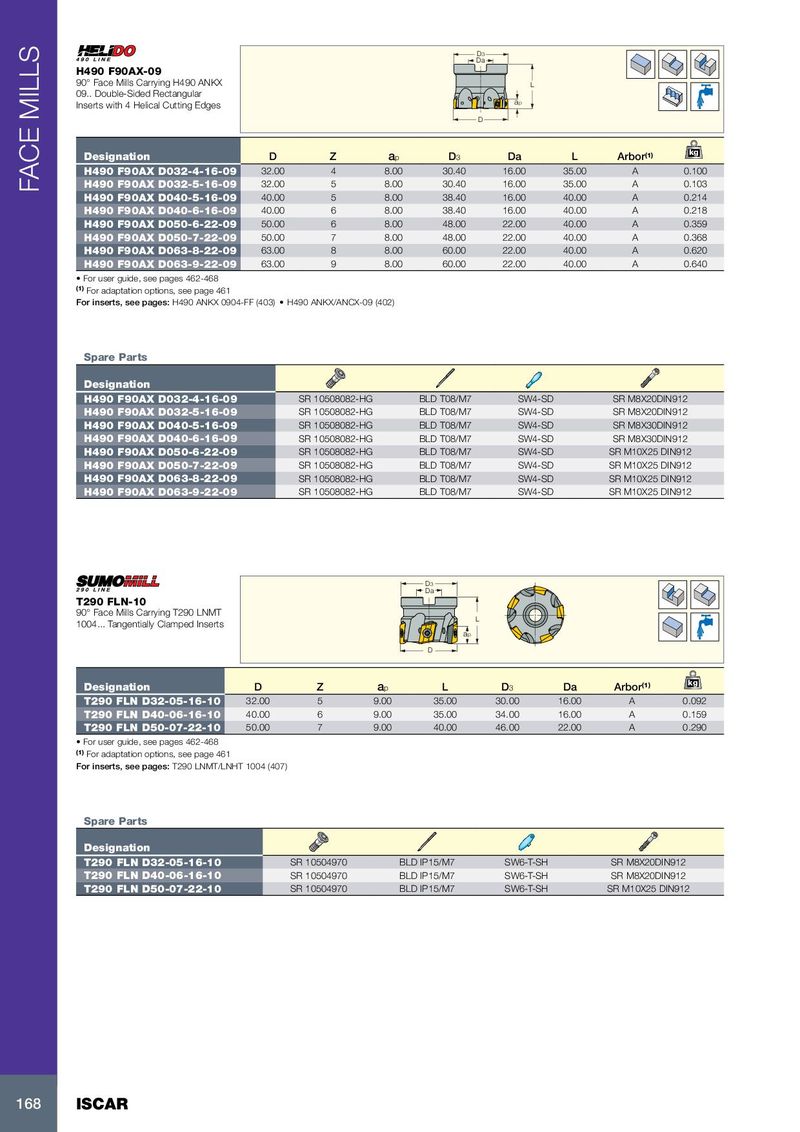

| 90° Face Mills Carrying H490 ANKX 09.. Double-Sided Rectangular Inserts with 4 Helical Cutting Edges | | | | D | L ap | | | |
| Designation | D | Z | ap | D3 | Da | L | Arbor(1) | kg |
| H490 F90AX D032-4-16-09 | 32.00 | 4 | 8.00 | 30.40 | 16.00 | 35.00 | A | 0.100 |
| H490 F90AX D032-5-16-09 | 32.00 | 5 | 8.00 | 30.40 | 16.00 | 35.00 | A | 0.103 |
| H490 F90AX D040-5-16-09 | 40.00 | 5 | 8.00 | 38.40 | 16.00 | 40.00 | A | 0.214 |
| H490 F90AX D040-6-16-09 | 40.00 | 6 | 8.00 | 38.40 | 16.00 | 40.00 | A | 0.218 |
| H490 F90AX D050-6-22-09 | 50.00 | 6 | 8.00 | 48.00 | 22.00 | 40.00 | A | 0.359 |
| H490 F90AX D050-7-22-09 | 50.00 | 7 | 8.00 | 48.00 | 22.00 | 40.00 | A | 0.368 |
| H490 F90AX D063-8-22-09 | 63.00 | 8 | 8.00 | 60.00 | 22.00 | 40.00 | A | 0.620 |
| H490 F90AX D063-9-22-09 | 63.00 | 9 | 8.00 | 60.00 | 22.00 | 40.00 | A | 0.640 |
- For user guide, see pages 462-468
(1) For adaptation options, see page 461 For inserts, see pages: H490 ANKX 0904-FF (403) H490 ANKX/ANCX-09 (402)
| Spare Parts | | | | |
| Designation | | | | |
| H490 F90AX D032-4-16-09 | SR 10508082-HG | BLD T08/M7 | SW4-SD | SR M8X20DIN912 |
| H490 F90AX D032-5-16-09 | SR 10508082-HG | BLD T08/M7 | SW4-SD | SR M8X20DIN912 |
| H490 F90AX D040-5-16-09 | SR 10508082-HG | BLD T08/M7 | SW4-SD | SR M8X30DIN912 |
| H490 F90AX D040-6-16-09 | SR 10508082-HG | BLD T08/M7 | SW4-SD | SR M8X30DIN912 |
| H490 F90AX D050-6-22-09 | SR 10508082-HG | BLD T08/M7 | SW4-SD | SR M10X25 DIN912 |
| H490 F90AX D050-7-22-09 | SR 10508082-HG | BLD T08/M7 | SW4-SD | SR M10X25 DIN912 |
| H490 F90AX D063-8-22-09 | SR 10508082-HG | BLD T08/M7 | SW4-SD | SR M10X25 DIN912 |
| H490 F90AX D063-9-22-09 | SR 10508082-HG | BLD T08/M7 | SW4-SD | SR M10X25 DIN912 |
| T290 FLN-10 | | | | Da D3 | | | | |
| 90° Face Mills Carrying T290 LNMT 1004... Tangentially Clamped Inserts | | | | D | ap L | | | |
| Designation | D | Z | ap | L | | D3 | Da | Arbor(1) kg |
| T290 FLN D32-05-16-10 | 32.00 | 5 | 9.00 | 35.00 | | 30.00 | 16.00 | A 0.092 |
| T290 FLN D40-06-16-10 | 40.00 | 6 | 9.00 | 35.00 | | 34.00 | 16.00 | A 0.159 |
| T290 FLN D50-07-22-10 | 50.00 | 7 | 9.00 | 40.00 | | 46.00 | 22.00 | A 0.290 |
- For user guide, see pages 462-468
(1) For adaptation options, see page 461 For inserts, see pages: T290 LNMT/LNHT 1004 (407)
| Spare Parts | | | | |
| Designation | | | | |
| T290 FLN D32-05-16-10 | SR 10504970 | BLD IP15/M7 | SW6-T-SH | SR M8X20DIN912 |
| T290 FLN D40-06-16-10 | SR 10504970 | BLD IP15/M7 | SW6-T-SH | SR M8X20DIN912 |
| T290 FLN D50-07-22-10 | SR 10504970 | BLD IP15/M7 | SW6-T-SH | SR M10X25 DIN912 |
