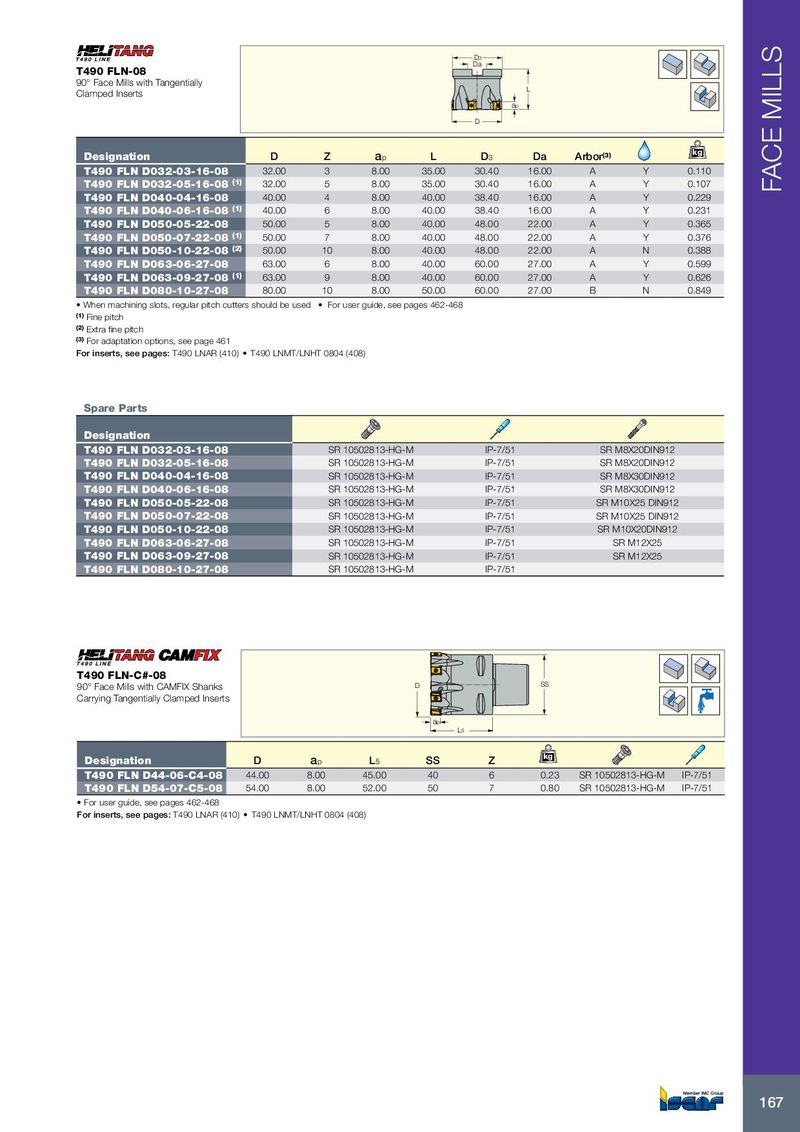

D3 Da T490 FLN-08 90° Face Mills with Tangentially L Clamped Inserts ap D kg Designation D Z a p L D 3 Da Arbor (3) T490 FLN D032-03-16-08 32.00 3 8.00 35.00 30.40 16.00 A Y 0.110 T490 FLN D032-05-16-08 (1) 32.00 5 8.00 35.00 30.40 16.00 A Y 0.107 FACE MILLS T490 FLN D040-04-16-08 40.00 4 8.00 40.00 38.40 16.00 A Y 0.229 T490 FLN D040-06-16-08 (1) 40.00 6 8.00 40.00 38.40 16.00 A Y 0.231 T490 FLN D050-05-22-08 50.00 5 8.00 40.00 48.00 22.00 A Y 0.365 T490 FLN D050-07-22-08 (1) 50.00 7 8.00 40.00 48.00 22.00 A Y 0.376 T490 FLN D050-10-22-08 (2) 50.00 10 8.00 40.00 48.00 22.00 A N 0.388 T490 FLN D063-06-27-08 63.00 6 8.00 40.00 60.00 27.00 A Y 0.599 T490 FLN D063-09-27-08 (1) 63.00 9 8.00 40.00 60.00 27.00 A Y 0.626 T490 FLN D080-10-27-08 80.00 10 8.00 50.00 60.00 27.00 B N 0.849 • When machining slots, regular pitch cutters should be used • For user guide, see pages 462-468 (1) Fine pitch (2) Extra fine pitch (3) For adaptation options, see page 461 For inserts, see pages: T490 LNAR (410) • T490 LNMT/LNHT 0804 (408) Spare Parts Designation T490 FLN D032-03-16-08 SR 10502813-HG-M IP-7/51 SR M8X20DIN912 T490 FLN D032-05-16-08 SR 10502813-HG-M IP-7/51 SR M8X20DIN912 T490 FLN D040-04-16-08 SR 10502813-HG-M IP-7/51 SR M8X30DIN912 T490 FLN D040-06-16-08 SR 10502813-HG-M IP-7/51 SR M8X30DIN912 T490 FLN D050-05-22-08 SR 10502813-HG-M IP-7/51 SR M10X25 DIN912 T490 FLN D050-07-22-08 SR 10502813-HG-M IP-7/51 SR M10X25 DIN912 T490 FLN D050-10-22-08 SR 10502813-HG-M IP-7/51 SR M10X20DIN912 T490 FLN D063-06-27-08 SR 10502813-HG-M IP-7/51 SR M12X25 T490 FLN D063-09-27-08 SR 10502813-HG-M IP-7/51 SR M12X25 T490 FLN D080-10-27-08 SR 10502813-HG-M IP-7/51 T490 FLN-C#-08 90° Face Mills with CAMFIX Shanks D SS Carrying Tangentially Clamped Inserts ap L5 kg Designation D a p L 5 SS Z T490 FLN D44-06-C4-08 44.00 8.00 45.00 40 6 0.23 SR 10502813-HG-M IP-7/51 T490 FLN D54-07-C5-08 54.00 8.00 52.00 50 7 0.80 SR 10502813-HG-M IP-7/51 • For user guide, see pages 462-468 For inserts, see pages: T490 LNAR (410) • T490 LNMT/LNHT 0804 (408) 167
