| H690 FWN | | | | | Da D3 | | | | |

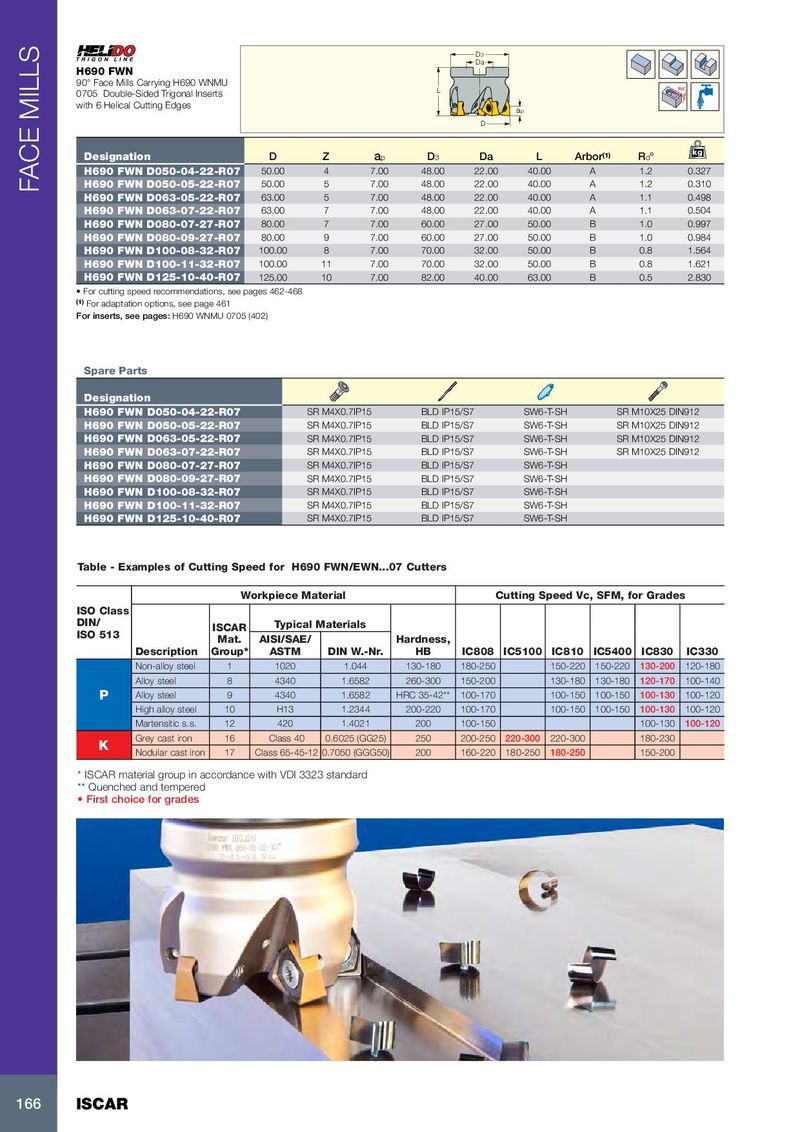

| 90° Face Mills Carrying H690 WNMU 0705 Double-Sided Trigonal Inserts with 6 Helical Cutting Edges | | | | L | D | ap | | | Rd° |
| Designation | D | Z | ap | D3 | Da | L | Arbor(1) | Rd° | kg |
| H690 FWN D050-04-22-R07 | 50.00 | 4 | 7.00 | 48.00 | 22.00 | 40.00 | A | 1.2 | 0.327 |
| H690 FWN D050-05-22-R07 | 50.00 | 5 | 7.00 | 48.00 | 22.00 | 40.00 | A | 1.2 | 0.310 |
| H690 FWN D063-05-22-R07 | 63.00 | 5 | 7.00 | 48.00 | 22.00 | 40.00 | A | 1.1 | 0.498 |
| H690 FWN D063-07-22-R07 | 63.00 | 7 | 7.00 | 48.00 | 22.00 | 40.00 | A | 1.1 | 0.504 |
| H690 FWN D080-07-27-R07 | 80.00 | 7 | 7.00 | 60.00 | 27.00 | 50.00 | B | 1.0 | 0.997 |
| H690 FWN D080-09-27-R07 | 80.00 | 9 | 7.00 | 60.00 | 27.00 | 50.00 | B | 1.0 | 0.984 |
| H690 FWN D100-08-32-R07 | 100.00 | 8 | 7.00 | 70.00 | 32.00 | 50.00 | B | 0.8 | 1.564 |
| H690 FWN D100-11-32-R07 | 100.00 | 11 | 7.00 | 70.00 | 32.00 | 50.00 | B | 0.8 | 1.621 |
| H690 FWN D125-10-40-R07 | 125.00 | 10 | 7.00 | 82.00 | 40.00 | 63.00 | B | 0.5 | 2.830 |
- For cutting speed recommendations, see pages 462-468
(1) For adaptation options, see page 461 For inserts, see pages: H690 WNMU 0705 (402)
Spare Parts
| Designation | | | | |
| H690 FWN D050-04-22-R07 | SR M4X0.7IP15 | BLD IP15/S7 | SW6-T-SH | SR M10X25 DIN912 |
| H690 FWN D050-05-22-R07 | SR M4X0.7IP15 | BLD IP15/S7 | SW6-T-SH | SR M10X25 DIN912 |
| H690 FWN D063-05-22-R07 | SR M4X0.7IP15 | BLD IP15/S7 | SW6-T-SH | SR M10X25 DIN912 |
| H690 FWN D063-07-22-R07 | SR M4X0.7IP15 | BLD IP15/S7 | SW6-T-SH | SR M10X25 DIN912 |
| H690 FWN D080-07-27-R07 | SR M4X0.7IP15 | BLD IP15/S7 | SW6-T-SH | |
| H690 FWN D080-09-27-R07 | SR M4X0.7IP15 | BLD IP15/S7 | SW6-T-SH | |
| H690 FWN D100-08-32-R07 | SR M4X0.7IP15 | BLD IP15/S7 | SW6-T-SH | |
| H690 FWN D100-11-32-R07 | SR M4X0.7IP15 | BLD IP15/S7 | SW6-T-SH | |
| H690 FWN D125-10-40-R07 | SR M4X0.7IP15 | BLD IP15/S7 | SW6-T-SH | |
Table - Examples of Cutting Speed for H690 FWN/EWN...07 Cutters
| | W | orkpiece Mat | erial | | C | utting S | peed Vc, | SFM, fo | r Grade | s |
| ISO Class DIN/ ISO 513 | Description | ISCAR Mat. Group | Typical AISI/SAE/ ASTM | Materials DIN W.-Nr. | Hardness, HB | IC808 | IC5100 | IC810 | IC5400 | IC830 | IC330 |
| Non-alloysteel | 1 | 1020 | 1.044 | 130-180 | 180-250 | | 150-220 | 150-220 | 130-200 | 120-180 |
| Alloysteel | 8 | 4340 | 1.6582 | 260-300 | 150-200 | | 130-180 | 130-180 | 120-170 | 100-140 |
| P | Alloysteel | 9 | 4340 | 1.6582 | HRC 35-42 | 100-170 | | 100-150 | 100-150 | 100-130 | 100-120 |
| High alloysteel | 10 | H13 | 1.2344 | 200-220 | 100-170 | | 100-150 | 100-150 | 100-130 | 100-120 |
| Martensitic s.s. | 12 | 420 | 1.4021 | 200 | 100-150 | | | | 100-130 | 100-120 |
| K | Greycast iron | 16 | Class 40 | 0.6025(GG25) | 250 | 200-250 | 220-300 | 220-300 | | 180-230 | |
| Nodular cast iron | 17 | Class 65-45-12 | 0.7050(GGG50) | 200 | 160-220 | 180-250 | 180-250 | | 150-200 | |
* ISCAR material group in accordance with VDI 3323 standard
** Quenched and tempered
