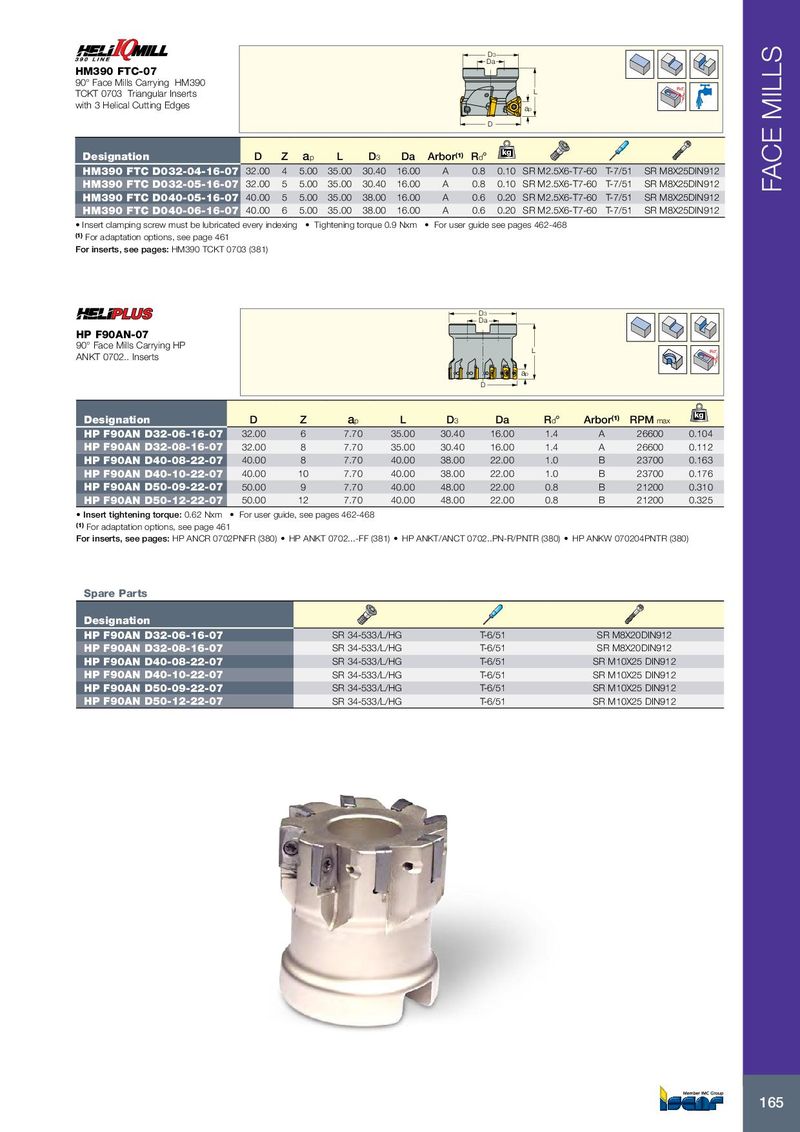

Каталог Iscar вращающийся инструмент 2017 - страница 169
Навигация
Каталог Iscar токарные пластины ISO 2022
Каталог Iscar инструмент для фрезерования
Каталог Iscar решения для глубокого сверления
Каталог Iscar полирующие фрезы
Новые режущие инструменты Iscar 2026
Каталог Iscar новые продукты 2018
| HM390 FTC-07 | D D | a 3 | ||||||||
| 90° Face Mills Carrying HM390 TCKT 0703 Triangular Inserts with 3 Helical Cutting Edges | D | L ap | Rd° | |||||||
| Designation | D | Z ap | L | D3 | Da | Arbor(1) Rd° | kg | |||
| HM390 FTC D032-04-16-07 | 32.00 | 4 5.00 | 35.00 | 30.40 | 16.00 | A 0.8 | 0.10 | SR M2.5X6-T7-60 | T-7/51 | SR M8X25DIN912 |
| HM390 FTC D032-05-16-07 | 32.00 | 5 5.00 | 35.00 | 30.40 | 16.00 | A 0.8 | 0.10 | SR M2.5X6-T7-60 | T-7/51 | SR M8X25DIN912 |
| HM390 FTC D040-05-16-07 | 40.00 | 5 5.00 | 35.00 | 38.00 | 16.00 | A 0.6 | 0.20 | SR M2.5X6-T7-60 | T-7/51 | SR M8X25DIN912 |
| HM390 FTC D040-06-16-07 | 40.00 | 6 5.00 | 35.00 | 38.00 | 16.00 | A 0.6 | 0.20 | SR M2.5X6-T7-60 | T-7/51 | SR M8X25DIN912 |
- Insert clamping screw must be lubricated every indexing
- Tightening torque 0.9 Nxm
- For user guide see pages 462-468
(1) For adaptation options, see page 461 For inserts, see pages: HM390 TCKT 0703 (381)
| HP F90AN-07 | Da D3 | |||||||||
| 90° Face Mills Carrying HP ANKT 0702.. Inserts | D | L ap | Rd° | |||||||
| Designation | D | Z | ap | L | D3 | Da | Rd° | Arbor(1) | RPMmax | kg |
| HP F90AN D32-06-16-07 | 32.00 | 6 | 7.70 | 35.00 | 30.40 | 16.00 | 1.4 | A | 26600 | 0.104 |
| HP F90AN D32-08-16-07 | 32.00 | 8 | 7.70 | 35.00 | 30.40 | 16.00 | 1.4 | A | 26600 | 0.112 |
| HP F90AN D40-08-22-07 | 40.00 | 8 | 7.70 | 40.00 | 38.00 | 22.00 | 1.0 | B | 23700 | 0.163 |
| HP F90AN D40-10-22-07 | 40.00 | 10 | 7.70 | 40.00 | 38.00 | 22.00 | 1.0 | B | 23700 | 0.176 |
| HP F90AN D50-09-22-07 | 50.00 | 9 | 7.70 | 40.00 | 48.00 | 22.00 | 0.8 | B | 21200 | 0.310 |
| HP F90AN D50-12-22-07 | 50.00 | 12 | 7.70 | 40.00 | 48.00 | 22.00 | 0.8 | B | 21200 | 0.325 |
- Insert tightening torque: 0.62 Nxm
- For user guide, see pages 462-468
(1) For adaptation options, see page 461 For inserts, see pages: HP ANCR 0702PNFR (380) HP ANKT 0702...-FF (381) HP ANKT/ANCT 0702..PN-R/PNTR (380) HP ANKW 070204PNTR (380)
Spare Parts
| Designation | |||
| HP F90AN D32-06-16-07 | SR 34-533/L/HG | T-6/51 | SR M8X20DIN912 |
| HP F90AN D32-08-16-07 | SR 34-533/L/HG | T-6/51 | SR M8X20DIN912 |
| HP F90AN D40-08-22-07 | SR 34-533/L/HG | T-6/51 | SR M10X25 DIN912 |
| HP F90AN D40-10-22-07 | SR 34-533/L/HG | T-6/51 | SR M10X25 DIN912 |
| HP F90AN D50-09-22-07 | SR 34-533/L/HG | T-6/51 | SR M10X25 DIN912 |
| HP F90AN D50-12-22-07 | SR 34-533/L/HG | T-6/51 | SR M10X25 DIN912 |
