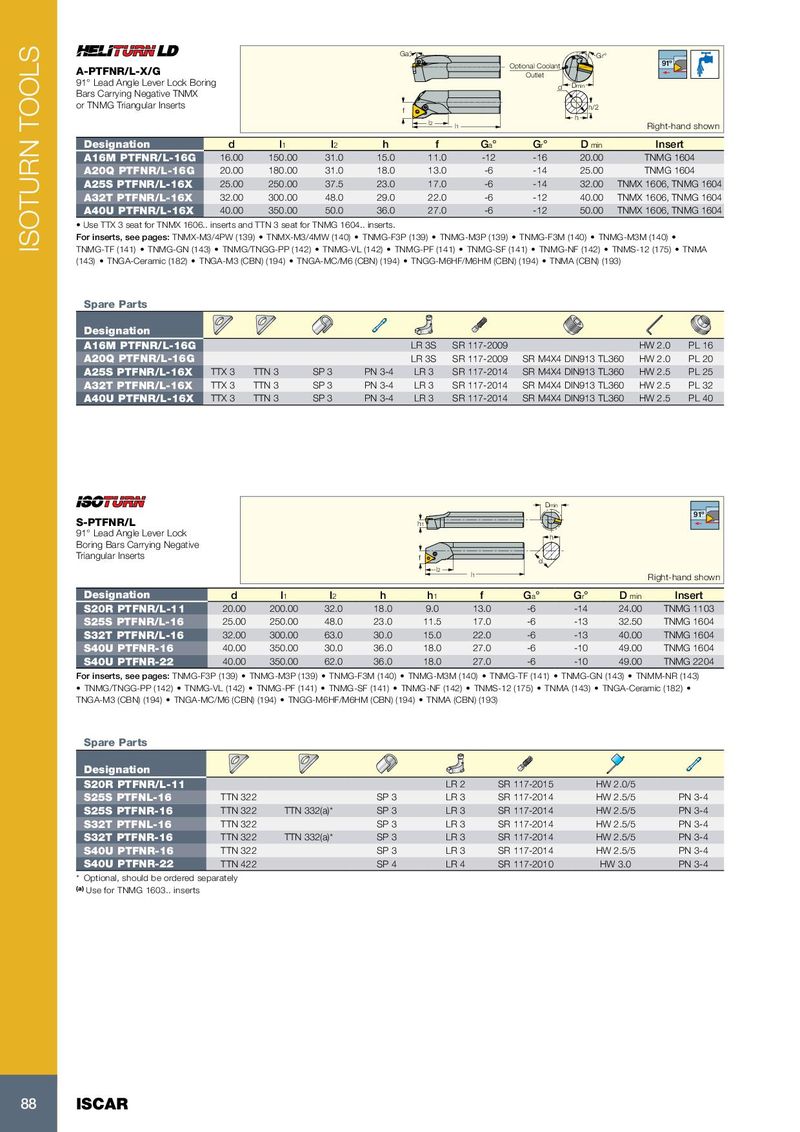

| A-PTFNR/L-X/G | Ga | ° | Optional Coola Outlet | Gr° nt | 91º | ||||
| 91° Lead Angle Lever Lock Borin Bars Carrying Negative TNMX or TNMG Triangular Inserts | g | f | l2 l1 | Dmin d h h/2 | Right-hand shown | ||||
| Designation | d | l1 | l2 | h | f | Ga° | Gr° | Dmin | Insert |
| A16M PTFNR/L-16G | 16.00 | 150.00 | 31.0 | 15.0 | 11.0 | -12 | -16 | 20.00 | TNMG 1604 |
| A20Q PTFNR/L-16G | 20.00 | 180.00 | 31.0 | 18.0 | 13.0 | -6 | -14 | 25.00 | TNMG 1604 |
| A25S PTFNR/L-16X | 25.00 | 250.00 | 37.5 | 23.0 | 17.0 | -6 | -14 | 32.00 | TNMX 1606, TNMG 1604 |
| A32T PTFNR/L-16X | 32.00 | 300.00 | 48.0 | 29.0 | 22.0 | -6 | -12 | 40.00 | TNMX 1606, TNMG 1604 |
| A40U PTFNR/L-16X | 40.00 | 350.00 | 50.0 | 36.0 | 27.0 | -6 | -12 | 50.00 | TNMX 1606,TNMG 1604 |
- Use TTX 3 seat for TNMX 1606.. inserts and TTN 3 seat for TNMG 1604.. inserts.
For inserts, see pages: TNMX-M3/4PW (139) TNMX-M3/4MW (140) TNMG-F3P (139) TNMG-M3P (139) TNMG-F3M (140) TNMG-M3M (140) TNMG-TF (141) TNMG-GN (143) TNMG/TNGG-PP (142) TNMG-VL (142) TNMG-PF (141) TNMG-SF (141) TNMG-NF (142) TNMS-12 (175) TNMA (143) TNGA-Ceramic (182) TNGA-M3 (CBN) (194) TNGA-MC/M6 (CBN) (194) TNGG-M6HF/M6HM (CBN) (194) TNMA (CBN) (193)
| Spare Parts | |||||||||
| Designation | |||||||||
| A16M PTFNR/L-16G | LR 3S | SR 117-2009 | HW 2.0 | PL 16 | |||||
| A20Q PTFNR/L-16G | LR 3S | SR 117-2009 | SR M4X4 DIN913 TL360 | HW 2.0 | PL 20 | ||||
| A25S PTFNR/L-16X | TTX 3 | TTN 3 | SP 3 | PN 3-4 | LR 3 | SR 117-2014 | SR M4X4 DIN913 TL360 | HW 2.5 | PL 25 |
| A32T PTFNR/L-16X | TTX 3 | TTN 3 | SP 3 | PN 3-4 | LR 3 | SR 117-2014 | SR M4X4 DIN913 TL360 | HW 2.5 | PL 32 |
| A40U PTFNR/L-16X | TTX 3 | TTN 3 | SP 3 | PN 3-4 | LR 3 | SR 117-2014 | SR M4X4 DIN913 TL360 | HW 2.5 | PL 40 |
| Dmin | |||||||||
| S-PTFNR/L | h1 | 91º | |||||||
| 91° Lead Angle Lever Lock Boring Bars Carrying Negative Triangular Inserts | f l2 | l1 | h d | Right-hand shown | |||||
| Designation | d | l1 | l2 | h | h1 | f | Ga° Gr° | Dmin | Insert |
| S20R PTFNR/L-11 | 20.00 | 200.00 | 32.0 | 18.0 | 9.0 | 13.0 | -6 -14 | 24.00 | TNMG 1103 |
| S25S PTFNR/L-16 | 25.00 | 250.00 | 48.0 | 23.0 | 11.5 | 17.0 | -6 -13 | 32.50 | TNMG 1604 |
| S32T PTFNR/L-16 | 32.00 | 300.00 | 63.0 | 30.0 | 15.0 | 22.0 | -6 -13 | 40.00 | TNMG 1604 |
| S40U PTFNR-16 | 40.00 | 350.00 | 30.0 | 36.0 | 18.0 | 27.0 | -6 -10 | 49.00 | TNMG 1604 |
| S40U PTFNR-22 | 40.00 | 350.00 | 62.0 | 36.0 | 18.0 | 27.0 | -6 -10 | 49.00 | TNMG 2204 |
For inserts, see pages: TNMG-F3P (139) TNMG-M3P (139) TNMG-F3M (140) TNMG-M3M (140) TNMG-TF (141) TNMG-GN (143) TNMM-NR (143)
- TNMG/TNGG-PP (142)
- TNMG-VL (142)
- TNMG-PF (141)
- TNMG-SF (141)
- TNMG-NF (142)
- TNMS-12 (175)
- TNMA (143)
- TNGA-Ceramic (182)
TNGA-M3 (CBN) (194) TNGA-MC/M6 (CBN) (194) TNGG-M6HF/M6HM (CBN) (194) TNMA (CBN) (193)
| Spare Parts | |||||||
| Designation | |||||||
| S20R PTFNR/L-11 | LR 2 | SR 117-2015 | HW 2.0/5 | ||||
| S25S PTFNL-16 | TTN 322 | SP 3 | LR 3 | SR 117-2014 | HW 2.5/5 | PN 3-4 | |
| S25S PTFNR-16 | TTN 322 | TTN 332(a) | SP 3 | LR 3 | SR 117-2014 | HW 2.5/5 | PN 3-4 |
| S32T PTFNL-16 | TTN 322 | SP 3 | LR 3 | SR 117-2014 | HW 2.5/5 | PN 3-4 | |
| S32T PTFNR-16 | TTN 322 | TTN 332(a) | SP 3 | LR 3 | SR 117-2014 | HW 2.5/5 | PN 3-4 |
| S40U PTFNR-16 | TTN 322 | SP 3 | LR 3 | SR 117-2014 | HW 2.5/5 | PN 3-4 | |
| S40U PTFNR-22 | TTN 422 | SP 4 | LR 4 | SR 117-2010 | HW 3.0 | PN 3-4 |
* Optional, should be ordered separately (a) Use for TNMG 1603.. inserts
