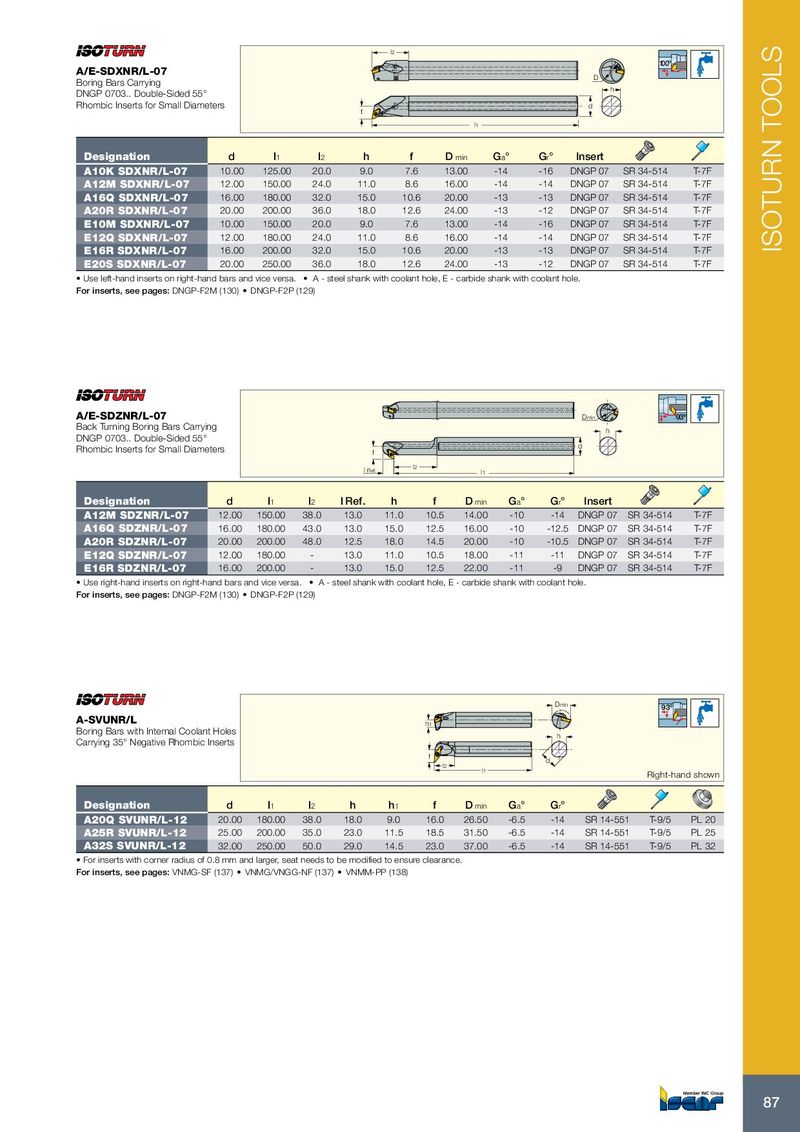

| A/E-SDXNR/L-07 Boring Bars Carrying DNGP 0703.. Double-Sided 55° Rhombic Inserts for Small Diame | ters | f | l2 | l1 | d h D | 100º | |||||
| Designation | d | l1 | l2 | h | f | Dmin | Ga° | Gr° | Insert | ||
| A10K SDXNR/L-07 | 10.00 | 125.00 | 20.0 | 9.0 | 7.6 | 13.00 | -14 | -16 | DNGP 07 | SR 34-514 | T-7F |
| A12M SDXNR/L-07 | 12.00 | 150.00 | 24.0 | 11.0 | 8.6 | 16.00 | -14 | -14 | DNGP 07 | SR 34-514 | T-7F |
| A16Q SDXNR/L-07 | 16.00 | 180.00 | 32.0 | 15.0 | 10.6 | 20.00 | -13 | -13 | DNGP 07 | SR 34-514 | T-7F |
| A20R SDXNR/L-07 | 20.00 | 200.00 | 36.0 | 18.0 | 12.6 | 24.00 | -13 | -12 | DNGP 07 | SR 34-514 | T-7F |
| E10M SDXNR/L-07 | 10.00 | 150.00 | 20.0 | 9.0 | 7.6 | 13.00 | -14 | -16 | DNGP 07 | SR 34-514 | T-7F |
| E12Q SDXNR/L-07 | 12.00 | 180.00 | 24.0 | 11.0 | 8.6 | 16.00 | -14 | -14 | DNGP 07 | SR 34-514 | T-7F |
| E16R SDXNR/L-07 | 16.00 | 200.00 | 32.0 | 15.0 | 10.6 | 20.00 | -13 | -13 | DNGP 07 | SR 34-514 | T-7F |
| E20S SDXNR/L-07 | 20.00 | 250.00 | 36.0 | 18.0 | 12.6 | 24.00 | -13 | -12 | DNGP 07 | SR 34-514 | T-7F |
- Use left-hand inserts on right-hand bars and vice versa.
- A - steel shank with coolant hole, E - carbide shank with coolant hole.
For inserts, see pages: DNGP-F2M (130) DNGP-F2P (129)
| A/E-SDZNR/L-07 | Dmin | 93º | ||||||||||
| Back Turning Boring Bars Carryi DNGP 0703.. Double-Sided 55° Rhombic Inserts for Small Diam | ng eters | lRe | f f. l2 | l1 | d h | |||||||
| Designation | d | l1 | l2 | l Ref. | h | f | Dmin | Ga° | Gr° | Insert | ||
| A12M SDZNR/L-07 | 12.00 | 150.00 | 38.0 | 13.0 | 11.0 | 10.5 | 14.00 | -10 | -14 | DNGP 07 | SR 34-514 | T-7F |
| A16Q SDZNR/L-07 | 16.00 | 180.00 | 43.0 | 13.0 | 15.0 | 12.5 | 16.00 | -10 | -12.5 | DNGP 07 | SR 34-514 | T-7F |
| A20R SDZNR/L-07 | 20.00 | 200.00 | 48.0 | 12.5 | 18.0 | 14.5 | 20.00 | -10 | -10.5 | DNGP 07 | SR 34-514 | T-7F |
| E12Q SDZNR/L-07 | 12.00 | 180.00 | - | 13.0 | 11.0 | 10.5 | 18.00 | -11 | -11 | DNGP 07 | SR 34-514 | T-7F |
| E16R SDZNR/L-07 | 16.00 | 200.00 | - | 13.0 | 15.0 | 12.5 | 22.00 | -11 | -9 | DNGP 07 | SR 34-514 | T-7F |
- Use right-hand inserts on right-hand bars and vice versa.
- A - steel shank with coolant hole, E - carbide shank with coolant hole.
For inserts, see pages: DNGP-F2M (130) DNGP-F2P (129)
| A-SVUNR/L | h1 | Dmin | 93º | |||||||||
| Boring Bars with Internal Coolan Carrying 35° Negative Rhombic | t Holes Inserts | l2 f | l1 | h d | Right-ha | nd shown | ||||||
| Designation | d | l1 | l2 | h | h1 | f | Dmin | Ga° | Gr° | |||
| A20Q SVUNR/L-12 | 20.00 | 180.00 | 38.0 | 18.0 | 9.0 | 16.0 | 26.50 | -6.5 | -14 | SR 14-551 | T-9/5 | PL 20 |
| A25R SVUNR/L-12 | 25.00 | 200.00 | 35.0 | 23.0 | 11.5 | 18.5 | 31.50 | -6.5 | -14 | SR 14-551 | T-9/5 | PL 25 |
| A32S SVUNR/L-12 | 32.00 | 250.00 | 50.0 | 29.0 | 14.5 | 23.0 | 37.00 | -6.5 | -14 | SR 14-551 | T-9/5 | PL 32 |
- For inserts with corner radius of 0.8 mm and larger, seat needs to be modified to ensure clearance.
For inserts, see pages: VNMG-SF (137) VNMG/VNGG-NF (137) VNMM-PP (138)
