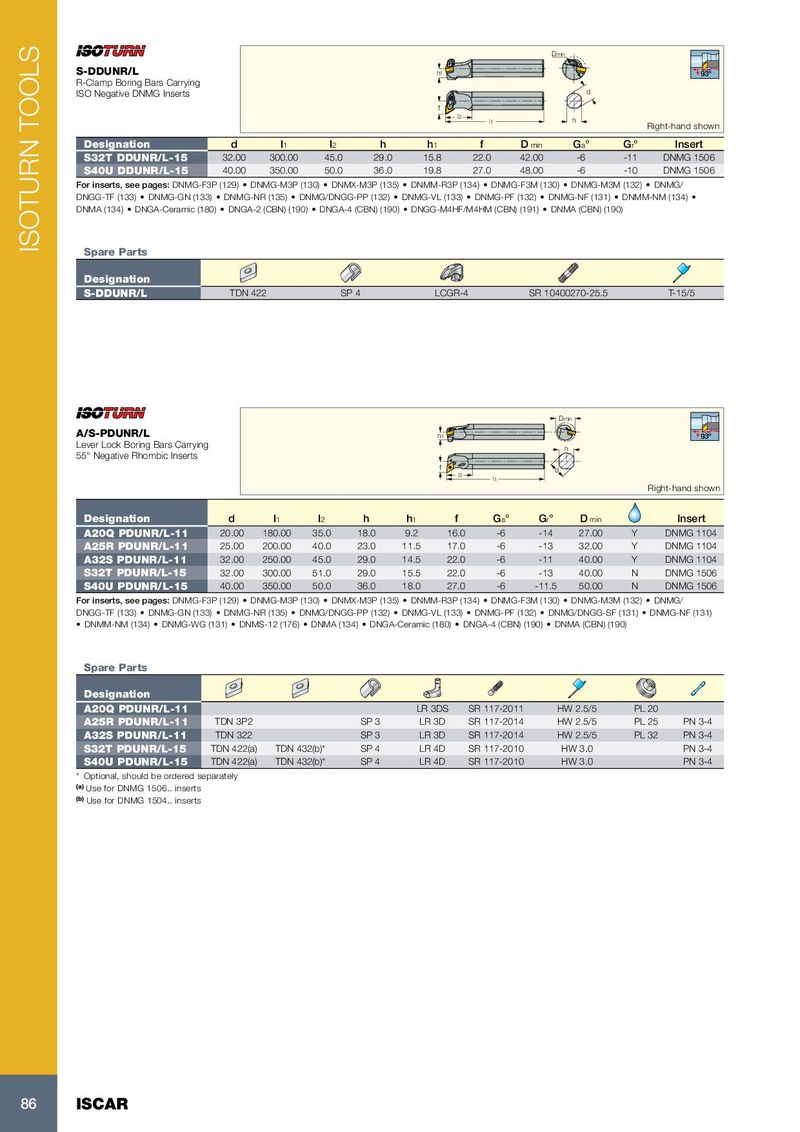

| S-DDUNR/L R-Clamp Boring Bars Carrying | h1 | Dmin | 93º | ||||||
| ISO Negative DNMG Inserts | l2 f | l1 | h d | Right-hand shown | |||||
| Designation | d | l1 | l2 | h | h1 | f | Dmin | Ga° | Gr° Insert |
| S32T DDUNR/L-15 | 32.00 | 300.00 | 45.0 | 29.0 | 15.8 | 22.0 | 42.00 | -6 | -11 DNMG 1506 |
| S40U DDUNR/L-15 | 40.00 | 350.00 | 50.0 | 36.0 | 19.8 | 27.0 | 48.00 | -6 | -10 DNMG 1506 |
For inserts, see pages: DNMG-F3P (129) DNMG-M3P (130) DNMX-M3P (135) DNMM-R3P (134) DNMG-F3M (130) DNMG-M3M (132) DNMG/ DNGG-TF (133) DNMG-GN (133) DNMG-NR (135) DNMG/DNGG-PP (132) DNMG-VL (133) DNMG-PF (132) DNMG-NF (131) DNMM-NM (134) DNMA (134) DNGA-Ceramic (180) DNGA-2 (CBN) (190) DNGA-4 (CBN) (190) DNGG-M4HF/M4HM (CBN) (191) DNMA (CBN) (190)
| Spare Parts | |||||
| Designation | |||||
| S-DDUNR/L | TDN 422 | SP 4 | LCGR-4 | SR 10400270-25.5 | T-15/5 |
| Dmi | n | |||||||||
| A/S-PDUNR/L | h1 | 93º | ||||||||
| Lever Lock Boring Bars Carrying 55° Negative Rhombic Inserts | f l2 | l1 | h d | |||||||
| Right-hand shown | ||||||||||
| Designation | d | l1 | l2 | h | h1 | f | Ga° | Gr° | Dmin | Insert |
| A20Q PDUNR/L-11 | 20.00 | 180.00 | 35.0 | 18.0 | 9.2 | 16.0 | -6 | -14 | 27.00 | Y DNMG 1104 |
| A25R PDUNR/L-11 | 25.00 | 200.00 | 40.0 | 23.0 | 11.5 | 17.0 | -6 | -13 | 32.00 | Y DNMG 1104 |
| A32S PDUNR/L-11 | 32.00 | 250.00 | 45.0 | 29.0 | 14.5 | 22.0 | -6 | -11 | 40.00 | Y DNMG 1104 |
| S32T PDUNR/L-15 | 32.00 | 300.00 | 51.0 | 29.0 | 15.5 | 22.0 | -6 | -13 | 40.00 | N DNMG 1506 |
| S40U PDUNR/L-15 | 40.00 | 350.00 | 50.0 | 36.0 | 18.0 | 27.0 | -6 | -11.5 | 50.00 | N DNMG 1506 |
For inserts, see pages: DNMG-F3P (129) DNMG-M3P (130) DNMX-M3P (135) DNMM-R3P (134) DNMG-F3M (130) DNMG-M3M (132) DNMG/ DNGG-TF (133) DNMG-GN (133) DNMG-NR (135) DNMG/DNGG-PP (132) DNMG-VL (133) DNMG-PF (132) DNMG/DNGG-SF (131) DNMG-NF (131)
- DNMM-NM (134)
- DNMG-WG (131)
- DNMS-12 (176)
- DNMA (134)
- DNGA-Ceramic (180)
- DNGA-4 (CBN) (190)
- DNMA (CBN) (190)
Spare Parts
| Designation | ||||||||
| A20Q PDUNR/L-11 | LR 3DS | SR 117-2011 | HW 2.5/5 | PL 20 | ||||
| A25R PDUNR/L-11 | TDN 3P2 | SP 3 | LR 3D | SR 117-2014 | HW 2.5/5 | PL 25 | PN 3-4 | |
| A32S PDUNR/L-11 | TDN 322 | SP 3 | LR 3D | SR 117-2014 | HW 2.5/5 | PL 32 | PN 3-4 | |
| S32T PDUNR/L-15 | TDN 422(a) | TDN 432(b) | SP 4 | LR 4D | SR 117-2010 | HW 3.0 | PN 3-4 | |
| S40U PDUNR/L-15 | TDN 422(a) | TDN 432(b) | SP 4 | LR 4D | SR 117-2010 | HW 3.0 | PN 3-4 |
* Optional, should be ordered separately (a) Use for DNMG 1506.. inserts (b) Use for DNMG 1504.. inserts
