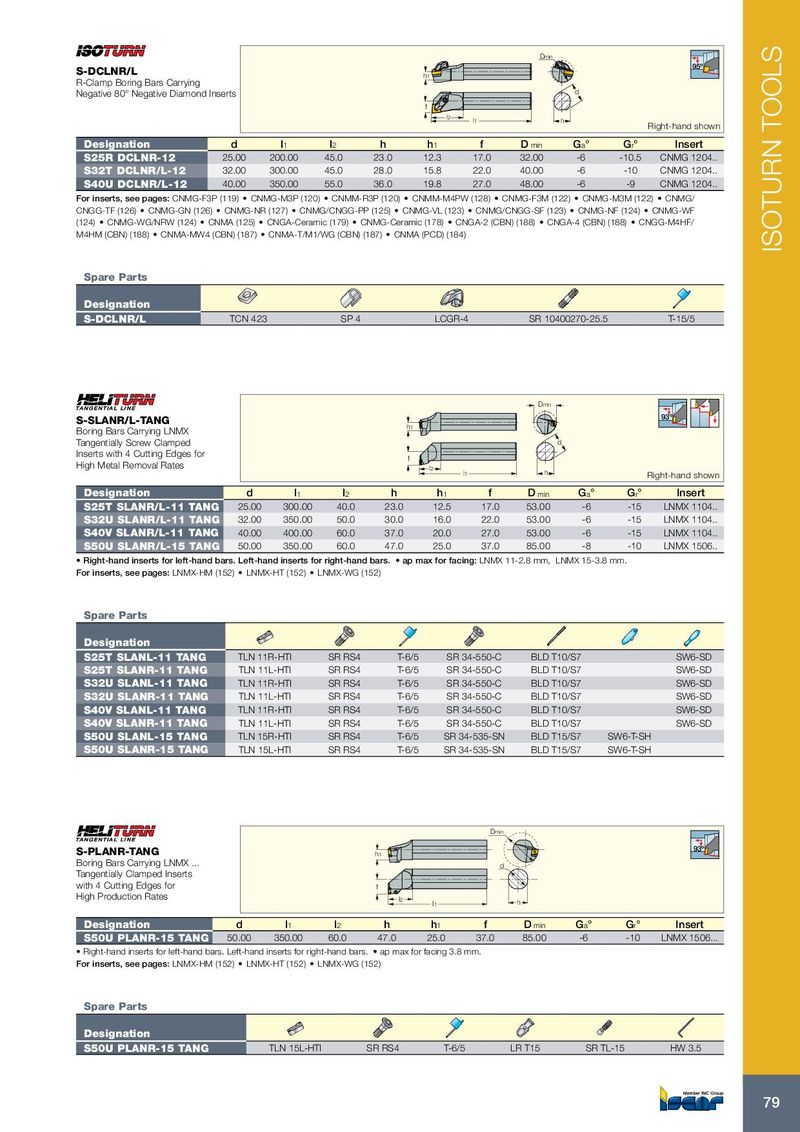

| S-DCLNR/L R-Clamp Boring Bars Carrying Negative 80° Negative Diamond I | nserts | | | | h1 l2 f | l1 | Dm | h d in | | Right-hand shown 95º |
| Designation | d | l1 | l2 | h | h1 | f | Dmin | Ga° | Gr° | Insert |
| S25R DCLNR-12 | 25.00 | 200.00 | 45.0 | 23.0 | 12.3 | 17.0 | 32.00 | -6 | -10.5 | CNMG 1204.. |
| S32T DCLNR/L-12 | 32.00 | 300.00 | 45.0 | 28.0 | 15.8 | 22.0 | 40.00 | -6 | -10 | CNMG 1204.. |
| S40U DCLNR/L-12 | 40.00 | 350.00 | 55.0 | 36.0 | 19.8 | 27.0 | 48.00 | -6 | -9 | CNMG 1204.. |
For inserts, see pages: CNMG-F3P (119) CNMG-M3P (120) CNMM-R3P (120) CNMM-M4PW (128) CNMG-F3M (122) CNMG-M3M (122) CNMG/ CNGG-TF (126) CNMG-GN (126) CNMG-NR (127) CNMG/CNGG-PP (125) CNMG-VL (123) CNMG/CNGG-SF (123) CNMG-NF (124) CNMG-WF (124) CNMG-WG/NRW (124) CNMA (125) CNGA-Ceramic (179) CNMG-Ceramic (178) CNGA-2 (CBN) (188) CNGA-4 (CBN) (188) CNGG-M4HF/ M4HM (CBN) (188) CNMA-MW4 (CBN) (187) CNMA-T/M1/WG (CBN) (187) CNMA (PCD) (184)
| Spare Parts | | | | | |
| Designation | | | | | |
| S-DCLNR/L | TCN 423 | SP 4 | LCGR-4 | SR 10400270-25.5 | T-15/5 |
| | | | | | | Dmin | | | |
| S-SLANR/L-TANG | | | | h1 | | | | | | 93º |
| Boring Bars Carrying LNMX Tangentially Screw Clamped Inserts with 4 Cutting Edges for High Metal Removal Rates | | | | f | l2 l1 | | h d | | R | ight-hand shown |
| Designation | d | l1 | l2 | h | h1 | f | Dmin | Ga° | Gr° | Insert |
| S25T SLANR/L-11 TANG | 25.00 | 300.00 | 40.0 | 23.0 | 12.5 | 17.0 | 53.00 | -6 | -15 | LNMX 1104.. |
| S32U SLANR/L-11 TANG | 32.00 | 350.00 | 50.0 | 30.0 | 16.0 | 22.0 | 53.00 | -6 | -15 | LNMX 1104.. |
| S40V SLANR/L-11 TANG | 40.00 | 400.00 | 60.0 | 37.0 | 20.0 | 27.0 | 53.00 | -6 | -15 | LNMX 1104.. |
| S50U SLANR/L-15 TANG | 50.00 | 350.00 | 60.0 | 47.0 | 25.0 | 37.0 | 85.00 | -8 | -10 | LNMX 1506.. |
- Right-hand inserts for left-hand bars. Left-hand inserts for right-hand bars.
- ap max for facing: LNMX 11-2.8 mm, LNMX 15-3.8 mm.
For inserts, see pages: LNMX-HM (152) LNMX-HT (152) LNMX-WG (152)
Spare Parts
| Designation | | | | | | | |
| S25T SLANL-11 TANG | TLN 11R-HTI | SR RS4 | T-6/5 | SR 34-550-C | BLD T10/S7 | | SW6-SD |
| S25T SLANR-11 TANG | TLN 11L-HTI | SR RS4 | T-6/5 | SR 34-550-C | BLD T10/S7 | | SW6-SD |
| S32U SLANL-11 TANG | TLN 11R-HTI | SR RS4 | T-6/5 | SR 34-550-C | BLD T10/S7 | | SW6-SD |
| S32U SLANR-11 TANG | TLN 11L-HTI | SR RS4 | T-6/5 | SR 34-550-C | BLD T10/S7 | | SW6-SD |
| S40V SLANL-11 TANG | TLN 11R-HTI | SR RS4 | T-6/5 | SR 34-550-C | BLD T10/S7 | | SW6-SD |
| S40V SLANR-11 TANG | TLN 11L-HTI | SR RS4 | T-6/5 | SR 34-550-C | BLD T10/S7 | | SW6-SD |
| S50U SLANL-15 TANG | TLN 15R-HTI | SR RS4 | T-6/5 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH | |
| S50U SLANR-15 TANG | TLN 15L-HTI | SR RS4 | T-6/5 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH | |
D min S-PLANR-TANG 93º h1 Boring Bars Carrying LNMX ... d Tangentially Clamped Inserts with 4 Cutting Edges for f High Production Rates I
| Designation | d | l1 | l2 | h | h1 | f | D min | Ga° | Gr° | | Insert |
| S50U PLANR-15 TANG | 50.00 | 350.00 | 60.0 | 47.0 | 25.0 | 37.0 | 85.00 | -6 | -10 | LNMX 1506... | |
- Right-hand inserts for left-hand bars. Left-hand inserts for right-hand bars.
- ap max for facing 3.8 mm.
For inserts, see pages: LNMX-HM (152) LNMX-HT (152) LNMX-WG (152)
Spare Parts
| Designation | | | | | | |
| S50U PLANR-15 TANG | TLN 15L-HTI | SR RS4 | T-6/5 | LR T15 | SR TL-15 | HW 3.5 |
