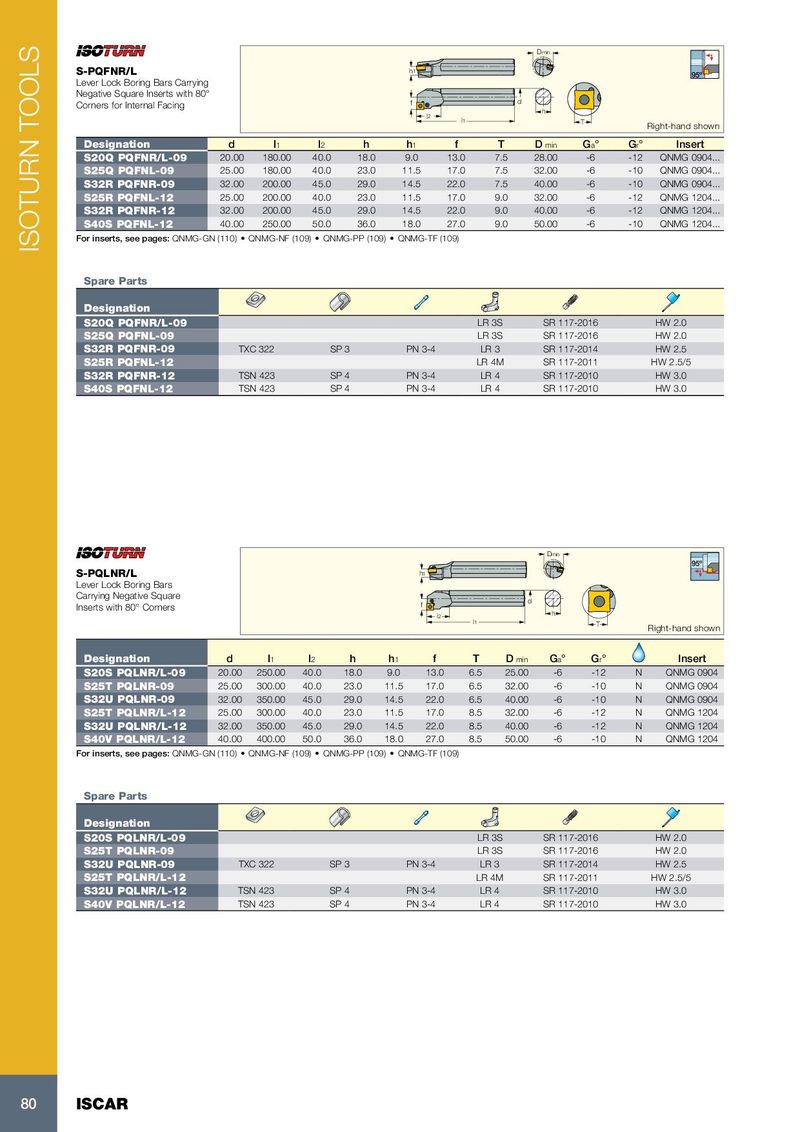

| S-PQFNR/L | | | | | h1 | | | Dmin | | | 95º |
| Lever Lock Boring Bars Carrying Negative Square Inserts with 80° | | | | | | | | | | | |
| Corners for Internal Facing | | | | | f l2 | l1 | | h | T | R | ight-hand shown |
| Designation | d | l1 | l2 | h | h1 | f | T | Dmin | Ga° | Gr° | Insert |
| S20Q PQFNR/L-09 | 20.00 | 180.00 | 40.0 | 18.0 | 9.0 | 13.0 | 7.5 | 28.00 | -6 | -12 | QNMG 0904... |
| S25Q PQFNL-09 | 25.00 | 180.00 | 40.0 | 23.0 | 11.5 | 17.0 | 7.5 | 32.00 | -6 | -10 | QNMG 0904... |
| S32R PQFNR-09 | 32.00 | 200.00 | 45.0 | 29.0 | 14.5 | 22.0 | 7.5 | 40.00 | -6 | -10 | QNMG 0904... |
| S25R PQFNL-12 | 25.00 | 200.00 | 40.0 | 23.0 | 11.5 | 17.0 | 9.0 | 32.00 | -6 | -12 | QNMG 1204... |
| S32R PQFNR-12 | 32.00 | 200.00 | 45.0 | 29.0 | 14.5 | 22.0 | 9.0 | 40.00 | -6 | -12 | QNMG 1204... |
| S40S PQFNL-12 | 40.00 | 250.00 | 50.0 | 36.0 | 18.0 | 27.0 | 9.0 | 50.00 | -6 | -10 | QNMG 1204... |
For inserts, see pages: QNMG-GN (110) • QNMG-NF (109) • QNMG-PP (109) • QNMG-TF (109)
Spare Parts
| Designation | | | | | | |
| S20Q PQFNR/L-09 | | | | LR 3S | SR 117-2016 | HW 2.0 |
| S25Q PQFNL-09 | | | | LR 3S | SR 117-2016 | HW 2.0 |
| S32R PQFNR-09 | TXC 322 | SP 3 | PN 3-4 | LR 3 | SR 117-2014 | HW 2.5 |
| S25R PQFNL-12 | | | | LR 4M | SR 117-2011 | HW 2.5/5 |
| S32R PQFNR-12 | TSN 423 | SP 4 | PN 3-4 | LR 4 | SR 117-2010 | HW 3.0 |
| S40S PQFNL-12 | TSN 423 | SP 4 | PN 3-4 | LR 4 | SR 117-2010 | HW 3.0 |
| -PQLNR/L | | | | | | h1 | | | Dmin | | | 95º |
| ver Lock Boring Bars arrying Negative Square | | | | | | | | d | | | | |
| serts with 80° Corners | | | | | | f l2 | l1 | | h | T | R | ight-hand shown |
| Designation | d | l1 | l2 | h | h1 | f | T | Dmin | Ga° | Gr° | | Insert |
| S20S PQLNR/L-09 | 20.00 | 250.00 | 40.0 | 18.0 | 9.0 | 13.0 | 6.5 | 25.00 | -6 | -12 | N | QNMG 0904 |
| S25T PQLNR-09 | 25.00 | 300.00 | 40.0 | 23.0 | 11.5 | 17.0 | 6.5 | 32.00 | -6 | -10 | N | QNMG 0904 |
| S32U PQLNR-09 | 32.00 | 350.00 | 45.0 | 29.0 | 14.5 | 22.0 | 6.5 | 40.00 | -6 | -10 | N | QNMG 0904 |
| S25T PQLNR/L-12 | 25.00 | 300.00 | 40.0 | 23.0 | 11.5 | 17.0 | 8.5 | 32.00 | -6 | -12 | N | QNMG 1204 |
| S32U PQLNR/L-12 | 32.00 | 350.00 | 45.0 | 29.0 | 14.5 | 22.0 | 8.5 | 40.00 | -6 | -12 | N | QNMG 1204 |
| S40V PQLNR/L-12 | 40.00 | 400.00 | 50.0 | 36.0 | 18.0 | 27.0 | 8.5 | 50.00 | -6 | -10 | N | QNMG 1204 |
For inserts, see pages: QNMG-GN (110) • QNMG-NF (109) • QNMG-PP (109) • QNMG-TF (109)
Spare Parts
| Designation | | | | | | |
| S20S PQLNR/L-09 | | | | LR 3S | SR 117-2016 | HW 2.0 |
| S25T PQLNR-09 | | | | LR 3S | SR 117-2016 | HW 2.0 |
| S32U PQLNR-09 | TXC 322 | SP 3 | PN 3-4 | LR 3 | SR 117-2014 | HW 2.5 |
| S25T PQLNR/L-12 | | | | LR 4M | SR 117-2011 | HW 2.5/5 |
| S32U PQLNR/L-12 | TSN 423 | SP 4 | PN 3-4 | LR 4 | SR 117-2010 | HW 3.0 |
| S40V PQLNR/L-12 | TSN 423 | SP 4 | PN 3-4 | LR 4 | SR 117-2010 | HW 3.0 |
