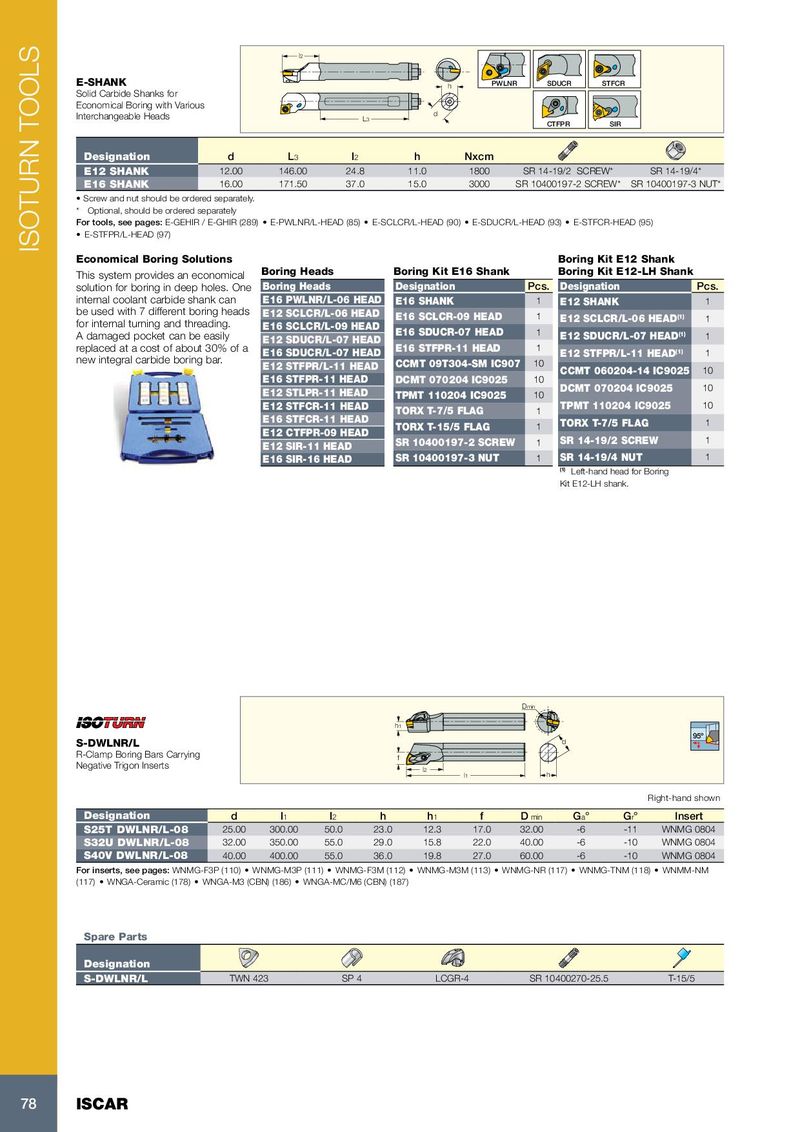

Каталог Iscar токарный инструмент 2017 - страница 82
Навигация
Каталог Iscar резьбонарезные фрезы
Каталог Iscar инструмент для обработки алюминиевых колёс
Каталог Iscar державки и пластины для нарезания резьбы 2022
Каталог Iscar расточные системы 2022
Каталог Iscar высокоточные развертки и метчики 2022
Токарные инструменты Iscar (часть 2) 2026
E-SHANK PWLNR SDUCR STFCR
Solid Carbide Shanks for Economical Boring with Various Interchangeable Heads d L3
CTFPR SIR
| Designation | d | L3 | l2 | h | Nxcm | ||
| E12 SHANK | 12.00 | 146.00 | 24.8 | 11.0 | 1800 | SR 14-19/2 SCREW* | SR 14-19/4* |
| E16 SHANK | 16.00 | 171.50 | 37.0 | 15.0 | 3000 | SR 10400197-2 SCREW* SR 10400197-3 NUT* |
- Screw and nut should be ordered separately.
* Optional, should be ordered separately For tools, see pages: E-GEHIR / E-GHIR (289) E-PWLNR/L-HEAD (85) E-SCLCR/L-HEAD (90) E-SDUCR/L-HEAD (93) E-STFCR-HEAD (95)
- E-STFPR/L-HEAD (97)
Economical Boring Solutions Boring Kit E12 Shank
| This system provides an economical | Boring Heads | Boring Kit E16 Shank | Boring Kit E12-LH Shank | ||
| solution for boring in deep holes. One | Boring Heads | Designation | Pcs. | Designation | Pcs. |
| internal coolant carbide shank can | E16 PWLNR/L-06 HEAD | E16 SHANK | 1 | E12 SHANK | 1 |
| be used with 7 different boring heads | E12 SCLCR/L-06 HEAD | E16 SCLCR-09 HEAD | |||
| 1 | E12 SCLCR/L-06 HEAD(1) | 1 | |||
| for internal turning and threading. | E16 SCLCR/L-09 HEAD | ||||
| A damaged pocket can be easily | E16 SDUCR-07 HEAD | 1 | E12 SDUCR/L-07 HEAD | ||
| E12 SDUCR/L-07 HEAD | (1) 1 | ||||
| replaced at a cost of about 30% of a | E16 SDUCR/L-07 HEAD | E16 STFPR-11 HEAD | 1 | ||
| E12 STFPR/L-11 HEAD(1) | 1 | ||||
| new integral carbide boring bar. | CCMT 09T304-SM IC907 | 10 | |||
| E12 STFPR/L-11 HEAD | CCMT 060204-14 IC9025 | ||||
| 10 | |||||
| E16 STFPR-11 HEAD | DCMT 070204 IC9025 | 10 | |||
| E12 STLPR-11 HEAD | DCMT 070204 IC9025 | 10 | |||
| TPMT 110204 IC9025 | 10 | ||||
| E12 STFCR-11 HEAD | TORX T-7/5 FLAG | TPMT 110204 IC9025 | 10 | ||
| 1 | |||||
| E16 STFCR-11 HEAD | TORX T-7/5 FLAG | 1 | |||
| E12 CTFPR-09 HEAD | TORX T-15/5 FLAG | 1 | |||
| SR 10400197-2 SCREW | 1 | SR 14-19/2 SCREW | 1 | ||
| E12 SIR-11 HEAD | |||||
| E16 SIR-16 HEAD | SR 10400197-3 NUT | 1 | SR 14-19/4 NUT | 1 |
(1) Left-hand head for Boring Kit E12-LH shank.
Dmin h1 S-DWLNR/L 95º d R-Clamp Boring Bars Carrying f Negative Trigon Inserts l2 l 1 h Right-hand shown
| Designation | d | l1 | l2 | h | h1 | f | D min | Ga° | G r° | Insert | |
| S25T DWLNR/L-08 | 25.00 | 300.00 | 50.0 | 23.0 | 12.3 | 17.0 | 32.00 | -6 | -11 | WNMG 0804 | |
| S32U DWLNR/L-08 | 32.00 | 350.00 | 55.0 | 29.0 | 15.8 | 22.0 | 40.00 | -6 | -10 | WNMG 0804 | |
| S40V DWLNR/L-08 | 40.00 | 400.00 | 55.0 | 36.0 | 19.8 | 27.0 | 60.00 | -6 | -10 | WNMG 0804 |
For inserts, see pages: WNMG-F3P (110) WNMG-M3P (111) WNMG-F3M (112) WNMG-M3M (113) WNMG-NR (117) WNMG-TNM (118) WNMM-NM (117) WNGA-Ceramic (178) WNGA-M3 (CBN) (186) WNGA-MC/M6 (CBN) (187)
Spare Parts
| Designation | ||||
| S-DWLNR/L | TWN 423 | SP 4 LCGR-4 | SR 10400270-25.5 | T-15/5 |
