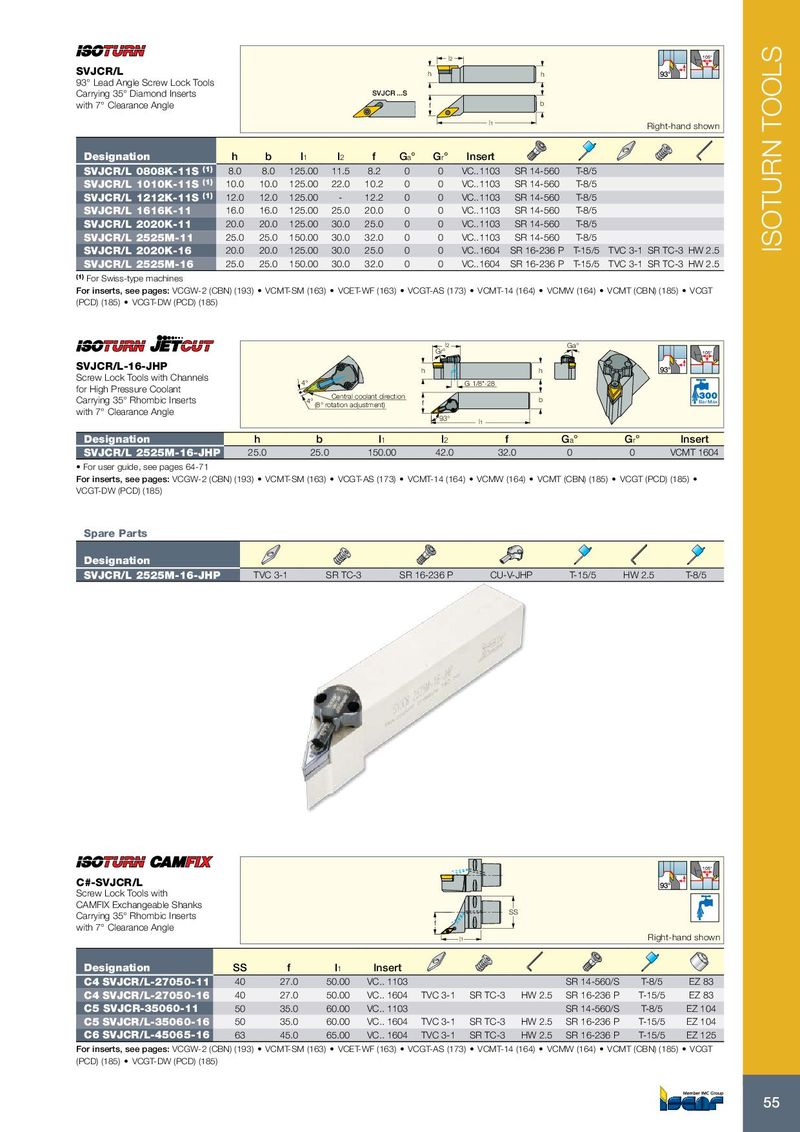

| SVJCR/L 93° Lead Angle Screw Lock Tools Carrying 35° Diamond Inserts with 7° Clearance Angle | SVJCR | ...S | l2 h f | b h | 93° | 105° | |||||||
| l1 | Right-han | d shown | |||||||||||
| Designation | h | b | l1 | l2 | f | Ga° | Gr° | Insert | |||||
| SVJCR/L 0808K-11S(1) | 8.0 | 8.0 | 125.00 | 11.5 | 8.2 | 0 | 0 | VC..1103 | SR 14-560 | T-8/5 | |||
| SVJCR/L 1010K-11S(1) | 10.0 | 10.0 | 125.00 | 22.0 | 10.2 | 0 | 0 | VC..1103 | SR 14-560 | T-8/5 | |||
| SVJCR/L 1212K-11S(1) | 12.0 | 12.0 | 125.00 | - | 12.2 | 0 | 0 | VC..1103 | SR 14-560 | T-8/5 | |||
| SVJCR/L 1616K-11 | 16.0 | 16.0 | 125.00 | 25.0 | 20.0 | 0 | 0 | VC..1103 | SR 14-560 | T-8/5 | |||
| SVJCR/L 2020K-11 | 20.0 | 20.0 | 125.00 | 30.0 | 25.0 | 0 | 0 | VC..1103 | SR 14-560 | T-8/5 | |||
| SVJCR/L 2525M-11 | 25.0 | 25.0 | 150.00 | 30.0 | 32.0 | 0 | 0 | VC..1103 | SR 14-560 | T-8/5 | |||
| SVJCR/L 2020K-16 | 20.0 | 20.0 | 125.00 | 30.0 | 25.0 | 0 | 0 | VC..1604 | SR 16-236 P | T-15/5 | TVC 3-1 | SR TC-3 | HW 2.5 |
| SVJCR/L 2525M-16 | 25.0 | 25.0 | 150.00 | 30.0 | 32.0 | 0 | 0 | VC..1604 | SR 16-236 P | T-15/5 | TVC 3-1 | SR TC-3 | HW 2.5 |
(1) For Swiss-type machines For inserts, see pages: VCGW-2 (CBN) (193) VCMT-SM (163) VCET-WF (163) VCGT-AS (173) VCMT-14 (164) VCMW (164) VCMT (CBN) (185) VCGT (PCD) (185) VCGT-DW (PCD) (185)
l2 Ga° Gr° 105°
SVJCR/L-16-JHP
| h | h | 93° | |
| Screw Lock Tools with Channels |
| for High Pressure Coolant | 4° | G 1/8"-28 |
| Carrying 35° Rhombic Inserts | 4° (8° rotation adjustment)Central coolant direction | b |
| Bar Max f | ||
| with 7° Clearance Angle | ||
| 93° l | ||
| 1 |
| Designation | h | b | l1 | l2 | f | Ga° | Gr° | Insert | |
| SVJCR/L 2525M-16-JHP | 25.0 | 25.0 | 150.00 | 42.0 | 32.0 | 0 | 0 | VCMT 1604 |
- For user guide, see pages 64-71
For inserts, see pages: VCGW-2 (CBN) (193) VCMT-SM (163) VCGT-AS (173) VCMT-14 (164) VCMW (164) VCMT (CBN) (185) VCGT (PCD) (185) VCGT-DW (PCD) (185)
Spare Parts
Designation
SVJCR/L 2525M-16-JHP TVC 3-1 SR TC-3 SR 16-236 P CU-V-JHP T-15/5 HW 2.5 T-8/5
| C#-SVJCR/L | 93° | 105° | ||||||||
| Screw Lock Tools with CAMFIX Exchangeable Shanks Carrying 35° Rhombic Inserts with 7° Clearance Angle | f l | S 1 | S | Right-h | and shown | |||||
| Designation | SS | f | l1 | Insert | ||||||
| C4 SVJCR/L-27050-11 | 40 | 27.0 | 50.00 | VC.. 1103 | SR 14-560/S | T-8/5 | EZ 83 | |||
| C4 SVJCR/L-27050-16 | 40 | 27.0 | 50.00 | VC.. 1604 | TVC 3-1 | SR TC-3 | HW 2.5 | SR 16-236 P | T-15/5 | EZ 83 |
| C5 SVJCR-35060-11 | 50 | 35.0 | 60.00 | VC.. 1103 | SR 14-560/S | T-8/5 | EZ 104 | |||
| C5 SVJCR/L-35060-16 | 50 | 35.0 | 60.00 | VC.. 1604 | TVC 3-1 | SR TC-3 | HW 2.5 | SR 16-236 P | T-15/5 | EZ 104 |
| C6 SVJCR/L-45065-16 | 63 | 45.0 | 65.00 | VC.. 1604 | TVC 3-1 | SR TC-3 | HW 2.5 | SR 16-236 P | T-15/5 | EZ 125 |
For inserts, see pages: VCGW-2 (CBN) (193) VCMT-SM (163) VCET-WF (163) VCGT-AS (173) VCMT-14 (164) VCMW (164) VCMT (CBN) (185) VCGT (PCD) (185) VCGT-DW (PCD) (185)
