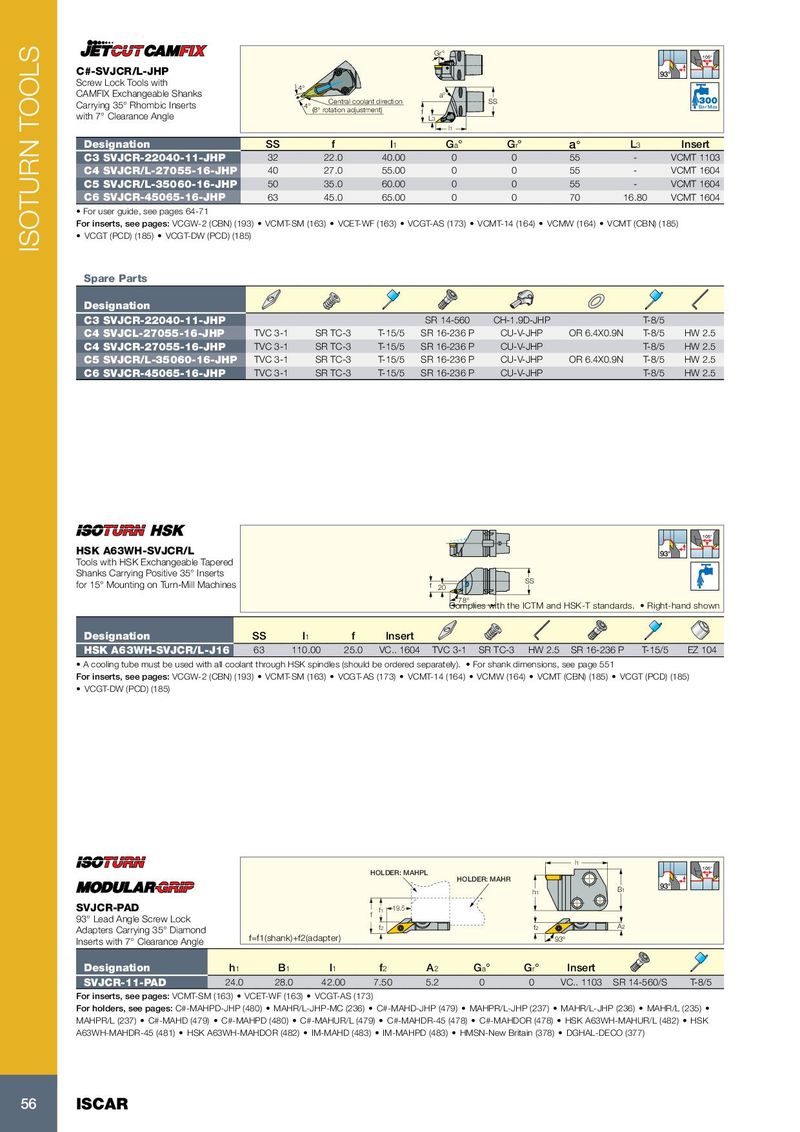

Каталог Iscar токарный инструмент 2017 - страница 60
Навигация
Каталог Iscar резьбонарезные фрезы
Каталог Iscar инструмент для обработки алюминиевых колёс
Каталог Iscar державки и пластины для нарезания резьбы 2022
Каталог Iscar расточные системы 2022
Каталог Iscar высокоточные развертки и метчики 2022
Токарные инструменты Iscar (часть 2) 2026
| C#-SVJCR/L-JHP Screw Lock Tools with CAMFIX Exchangeable Shanks Carrying 35° Rhombic Inserts with 7° Clearance Angle | Central coola 4° 4° (8° rotation adjust | nt direction ment) | Gr° a° f l1 L3 | SS | 93° 105° Bar Max | |
| Designation | SS f | l1 | Ga° | Gr° | a° | L3 Insert |
| C3 SVJCR-22040-11-JHP | 32 22.0 | 40.00 | 0 | 0 | 55 | - VCMT 1103 |
| C4 SVJCR/L-27055-16-JHP | 40 27.0 | 55.00 | 0 | 0 | 55 | - VCMT 1604 |
| C5 SVJCR/L-35060-16-JHP | 50 35.0 | 60.00 | 0 | 0 | 55 | - VCMT 1604 |
| C6 SVJCR-45065-16-JHP | 63 45.0 | 65.00 | 0 | 0 | 70 | 16.80 VCMT 1604 |
- For user guide, see pages 64-71
For inserts, see pages: VCGW-2 (CBN) (193) VCMT-SM (163) VCET-WF (163) VCGT-AS (173) VCMT-14 (164) VCMW (164) VCMT (CBN) (185)
- VCGT (PCD) (185)
- VCGT-DW (PCD) (185)
| Spare Parts | ||||||||
| Designation | ||||||||
| C3 SVJCR-22040-11-JHP | SR 14-560 | CH-1.9D-JHP | T-8/5 | |||||
| C4 SVJCL-27055-16-JHP | TVC 3-1 | SR TC-3 | T-15/5 | SR 16-236 P | CU-V-JHP | OR 6.4X0.9N | T-8/5 | HW 2.5 |
| C4 SVJCR-27055-16-JHP | TVC 3-1 | SR TC-3 | T-15/5 | SR 16-236 P | CU-V-JHP | T-8/5 | HW 2.5 | |
| C5 SVJCR/L-35060-16-JHP | TVC 3-1 | SR TC-3 | T-15/5 | SR 16-236 P | CU-V-JHP | OR 6.4X0.9N | T-8/5 | HW 2.5 |
| C6 SVJCR-45065-16-JHP | TVC 3-1 | SR TC-3 | T-15/5 | SR 16-236 P | CU-V-JHP | T-8/5 | HW 2.5 |
105°
HSK A63WH-SVJCR/L
93° Tools with HSK Exchangeable Tapered Shanks Carrying Positive 35° Inserts for 15° Mounting on Turn-Mill Machines SS f 20 Complies with the ICTM and HSK-T standards. Right-hand shown78° l 1
| Designation | SS | l1 | f | Insert | ||||||
| HSK A63WH-SVJCR/L-J16 | 63 | 110.00 | 25.0 | VC.. 1604 | TVC 3-1 | SR TC-3 | HW 2.5 | SR 16-236 P | T-15/5 | EZ 104 |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
- For shank dimensions, see page 551
For inserts, see pages: VCGW-2 (CBN) (193) VCMT-SM (163) VCGT-AS (173) VCMT-14 (164) VCMW (164) VCMT (CBN) (185) VCGT (PCD) (185)
- VCGT-DW (PCD) (185)
l 1 HOLDER: MAHPL 105° HOLDER: MAHR 93° h B1 1 SVJCR-PAD 19.5 f1 93° Lead Angle Screw Lock f
| Adapters Carrying 35° Diamond | f | f | A2 |
| 2 | 2 |
Inserts with 7° Clearance Angle f=f1(shank)+f2(adapter) 93º
| Designation | h1 | B 1 | l1 | f2 | A2 | Ga° | Gr° | Insert | ||
| SVJCR-11-PAD | 24.0 | 28.0 | 42.00 | 7.50 | 5.2 | 0 | 0 | VC.. 1103 | SR 14-560/S | T-8/5 |
For inserts, see pages: VCMT-SM (163) VCET-WF (163) VCGT-AS (173) For holders, see pages: C#-MAHPD-JHP (480) MAHR/L-JHP-MC (236) C#-MAHD-JHP (479) MAHPR/L-JHP (237) MAHR/L-JHP (236) MAHR/L (235) MAHPR/L (237) C#-MAHD (479) C#-MAHPD (480) C#-MAHUR/L (479) C#-MAHDR-45 (478) C#-MAHDOR (478) HSK A63WH-MAHUR/L (482) HSK A63WH-MAHDR-45 (481) HSK A63WH-MAHDOR (482) IM-MAHD (483) IM-MAHPD (483) HMSN-New Britain (378) DGHAL-DECO (377)
