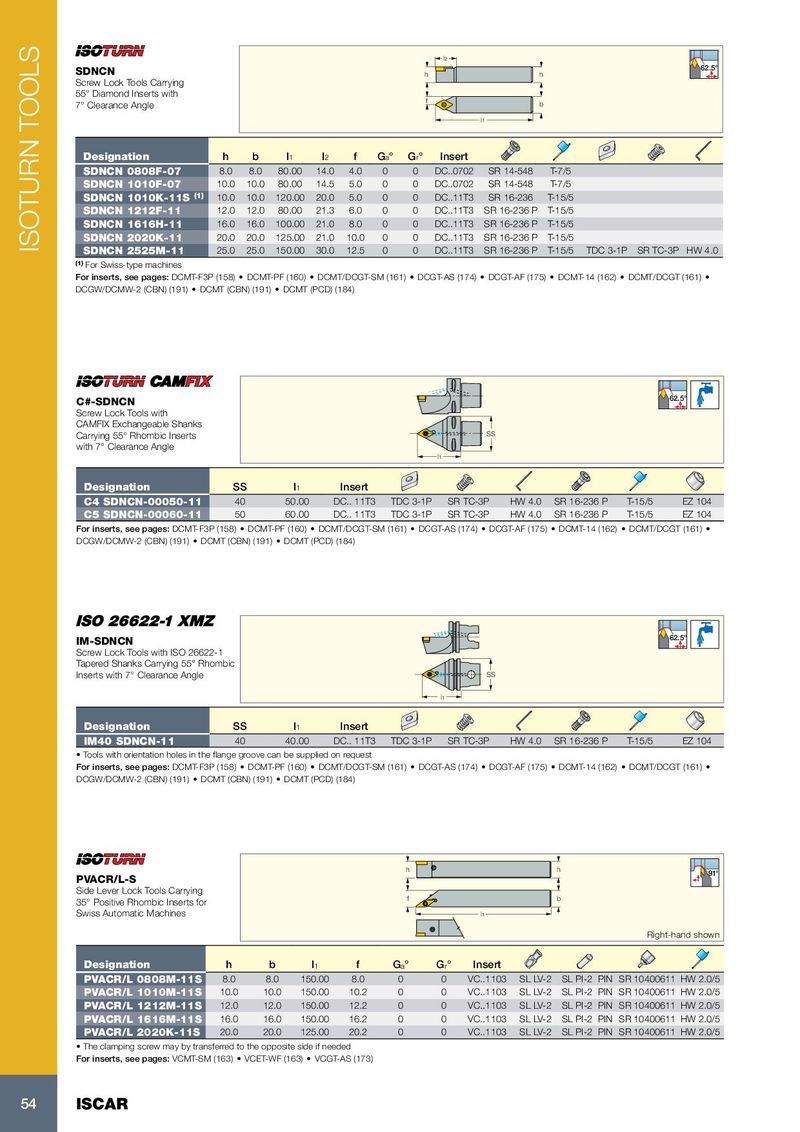

| SDNCN Screw Lock Tools Carrying 55° Diamond Inserts with 7° Clearance Angle | l2 h f | l1 | h b | 62.5° | |||||||||
| Designation | h | b | l1 | l2 | f | Ga° | Gr° | Insert | |||||
| SDNCN 0808F-07 | 8.0 | 8.0 | 80.00 | 14.0 | 4.0 | 0 | 0 | DC..0702 | SR 14-548 | T-7/5 | |||
| SDNCN 1010F-07 | 10.0 | 10.0 | 80.00 | 14.5 | 5.0 | 0 | 0 | DC..0702 | SR 14-548 | T-7/5 | |||
| SDNCN 1010K-11S(1) | 10.0 | 10.0 | 120.00 | 20.0 | 5.0 | 0 | 0 | DC..11T3 | SR 16-236 | T-15/5 | |||
| SDNCN 1212F-11 | 12.0 | 12.0 | 80.00 | 21.3 | 6.0 | 0 | 0 | DC..11T3 | SR 16-236 P | T-15/5 | |||
| SDNCN 1616H-11 | 16.0 | 16.0 | 100.00 | 21.0 | 8.0 | 0 | 0 | DC..11T3 | SR 16-236 P | T-15/5 | |||
| SDNCN 2020K-11 | 20.0 | 20.0 | 125.00 | 21.0 | 10.0 | 0 | 0 | DC..11T3 | SR 16-236 P | T-15/5 | |||
| SDNCN 2525M-11 | 25.0 | 25.0 | 150.00 | 30.0 | 12.5 | 0 | 0 | DC..11T3 | SR 16-236 P | T-15/5 | TDC 3-1P | SR TC-3P | HW 4.0 |
(1) For Swiss-type machines For inserts, see pages: DCMT-F3P (158) DCMT-PF (160) DCMT/DCGT-SM (161) DCGT-AS (174) DCGT-AF (175) DCMT-14 (162) DCMT/DCGT (161) DCGW/DCMW-2 (CBN) (191) DCMT (CBN) (191) DCMT (PCD) (184)
| C#-SDNCN Screw Lock Tools with CAMFIX Exchangeable Shanks Carrying 55° Rhombic Inserts with 7° Clearance Angle | SS l1 | 62.5° | ||||||
| Designation | SS | l1 | Insert | |||||
| C4 SDNCN-00050-11 | 40 | 50.00 | DC.. 11T3 | TDC 3-1P SR TC-3P | HW 4.0 | SR 16-236 P | T-15/5 | EZ 104 |
| C5 SDNCN-00060-11 | 50 | 60.00 | DC.. 11T3 | TDC 3-1P SR TC-3P | HW 4.0 | SR 16-236 P | T-15/5 | EZ 104 |
For inserts, see pages: DCMT-F3P (158) DCMT-PF (160) DCMT/DCGT-SM (161) DCGT-AS (174) DCGT-AF (175) DCMT-14 (162) DCMT/DCGT (161) DCGW/DCMW-2 (CBN) (191) DCMT (CBN) (191) DCMT (PCD) (184)
IM-SDNCN 62.5° Screw Lock Tools with ISO 26622-1 Tapered Shanks Carrying 55° Rhombic Inserts with 7° Clearance Angle SS l 1
| Designation | SS | l1 | Insert | ||||||
| IM40 SDNCN-11 | 40 | 40.00 | DC.. 11T3 | TDC 3-1P | SR TC-3P | HW 4.0 | SR 16-236 P | T-15/5 | EZ 104 |
- Tools with orientation holes in the flange groove can be supplied on request
For inserts, see pages: DCMT-F3P (158) DCMT-PF (160) DCMT/DCGT-SM (161) DCGT-AS (174) DCGT-AF (175) DCMT-14 (162) DCMT/DCGT (161) DCGW/DCMW-2 (CBN) (191) DCMT (CBN) (191) DCMT (PCD) (184)
| PVACR/L-S Side Lever Lock Tools Carrying 35° Positive Rhombic Inserts for | h f | h b | 91° | |||||||
| Swiss Automatic Machines | l1 | |||||||||
| Right-h | and shown | |||||||||
| Designation | h | b | l1 | f | Ga° | Gr° | Insert | |||
| PVACR/L 0808M-11S | 8.0 | 8.0 | 150.00 | 8.0 | 0 | 0 | VC..1103 | SL LV-2 | SL PI-2 PIN SR 10400611 | HW 2.0/5 |
| PVACR/L 1010M-11S | 10.0 | 10.0 | 150.00 | 10.2 | 0 | 0 | VC..1103 | SL LV-2 | SL PI-2 PIN SR 10400611 | HW 2.0/5 |
| PVACR/L 1212M-11S | 12.0 | 12.0 | 150.00 | 12.2 | 0 | 0 | VC..1103 | SL LV-2 | SL PI-2 PIN SR 10400611 | HW 2.0/5 |
| PVACR/L 1616M-11S | 16.0 | 16.0 | 150.00 | 16.2 | 0 | 0 | VC..1103 | SL LV-2 | SL PI-2 PIN SR 10400611 | HW 2.0/5 |
| PVACR/L 2020K-11S | 20.0 | 20.0 | 125.00 | 20.2 | 0 | 0 | VC..1103 | SL LV-2 | SL PI-2 PIN SR 10400611 | HW 2.0/5 |
- The clamping screw may by transferred to the opposite side if needed
For inserts, see pages: VCMT-SM (163) VCET-WF (163) VCGT-AS (173)
