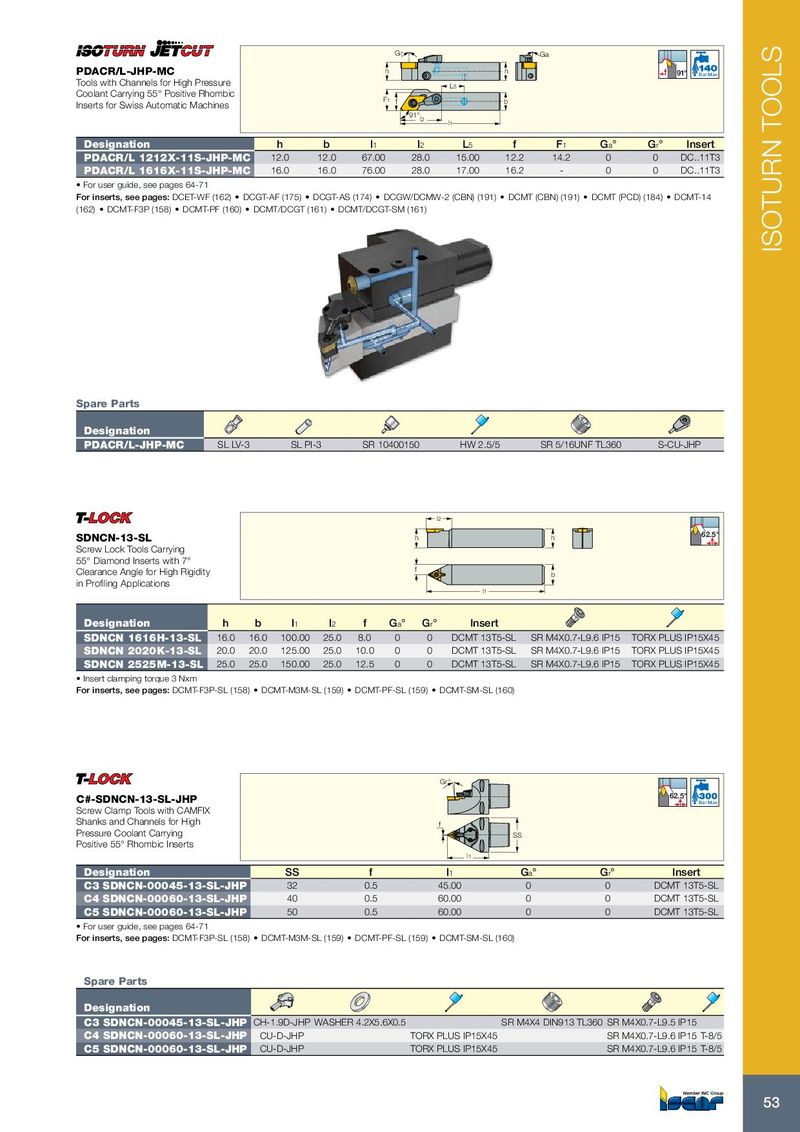

| PDACR/L-JHP-MC Tools with Channels for High Pressure | h L5 Gr | h G | a | 91° Bar Max | |||
| Coolant Carrying 55° Positive Rhombic Inserts for Swiss Automatic Machines | f F1 l1 l2 91° | b | |||||
| Designation | h | b | l1 l2 L5 | f | F1 | Ga° | Gr° Insert |
| PDACR/L 1212X-11S-JHP-MC | 12.0 | 12.0 | 67.00 28.0 15.00 | 12.2 | 14.2 | 0 | 0 DC..11T3 |
| PDACR/L 1616X-11S-JHP-MC | 16.0 | 16.0 | 76.00 28.0 17.00 | 16.2 | - | 0 | 0 DC..11T3 |
- For user guide, see pages 64-71
For inserts, see pages: DCET-WF (162) DCGT-AF (175) DCGT-AS (174) DCGW/DCMW-2 (CBN) (191) DCMT (CBN) (191) DCMT (PCD) (184) DCMT-14 (162) DCMT-F3P (158) DCMT-PF (160) DCMT/DCGT (161) DCMT/DCGT-SM (161)
Spare Parts
Designation
PDACR/L-JHP-MC SL LV-3 SL PI-3 SR 10400150 HW 2.5/5 SR 5/16UNF TL360 S-CU-JHP
l 2
SDNCN-13-SL h h 62.5°
Screw Lock Tools Carrying 55° Diamond Inserts with 7° Clearance Angle for High Rigidity f b
in Profiling Applications l 1
| Designation | h | b | l1 | l2 | f | Ga° | Gr° | Insert | ||||
| SDNCN 1616H-13-SL | 16.0 | 16.0 | 100.00 | 25.0 | 8.0 | 0 | 0 | DCMT 13T5-SL | SR M4X0.7-L9.6 IP15 | TORX PLUS IP15X45 | ||
| SDNCN 2020K-13-SL | 20.0 | 20.0 | 125.00 | 25.0 | 10.0 | 0 | 0 | DCMT 13T5-SL | SR M4X0.7-L9.6 IP15 | TORX PLUS IP15X45 | ||
| SDNCN 2525M-13-SL | 25.0 | 25.0 | 150.00 | 25.0 | 12.5 | 0 | 0 | DCMT 13T5-SL | SR M4X0.7-L9.6 IP15 | TORX PLUS IP15X45 |
- Insert clamping torque 3 Nxm
For inserts, see pages: DCMT-F3P-SL (158) DCMT-M3M-SL (159) DCMT-PF-SL (159) DCMT-SM-SL (160)
| C#-SDNCN-13-SL-JHP Screw Clamp Tools with CAMFIX | Gr° | 62.5° Bar Max | |||
| Shanks and Channels for High Pressure Coolant Carrying Positive 55° Rhombic Inserts | l1 f SS | ||||
| Designation | SS | f | l1 Ga° | Gr° | Insert |
| C3 SDNCN-00045-13-SL-JHP | 32 | 0.5 | 45.00 0 | 0 | DCMT 13T5-SL |
| C4 SDNCN-00060-13-SL-JHP | 40 | 0.5 | 60.00 0 | 0 | DCMT 13T5-SL |
| C5 SDNCN-00060-13-SL-JHP | 50 | 0.5 | 60.00 0 | 0 | DCMT 13T5-SL |
- For user guide, see pages 64-71
For inserts, see pages: DCMT-F3P-SL (158) DCMT-M3M-SL (159) DCMT-PF-SL (159) DCMT-SM-SL (160)
Spare Parts
| Designation | ||
| C3 SDNCN-00045-13-SL-JHP | CH-1.9D-JHP WASHER 4.2X5.6X0.5 | SR M4X4 DIN913 TL360 SR M4X0.7-L9.5 IP15 |
| C4 SDNCN-00060-13-SL-JHP | CU-D-JHP TORX PLUS IP15X45 | SR M4X0.7-L9.6 IP15 T-8/5 |
| C5 SDNCN-00060-13-SL-JHP | CU-D-JHP TORX PLUS IP15X45 | SR M4X0.7-L9.6 IP15 T-8/5 |
