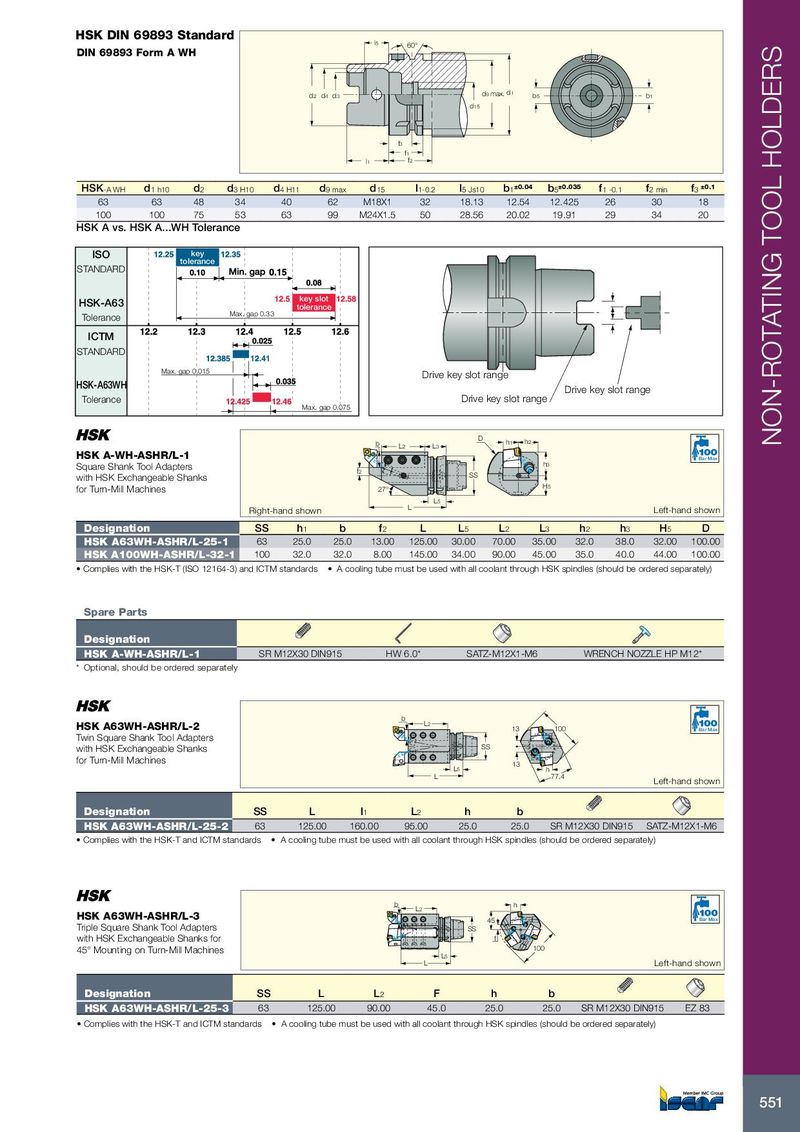

HSK DIN 69893 Standard
DIN 69893 Form A WH
| d | d | d | d9 max. d1 | b | b |
| 2 4 | 3 | 5 | 1 |
d 15
f3 f 1 l 1 f2
| HSK-A WH | d1 h10 | d2 | d 3 H10 | d4 H11 | d9 max | d15 | l1-0.2 | l5 Js10 | b1±0.04 | b5±0.035 | f1 -0.1 | f2 min | f3 ±0.1 | |
| 63 | 63 | 48 | 34 | 40 | 62 | M18X1 | 32 | 18.13 | 12.54 | 12.425 | 26 | 30 | 18 | |
| 100 | 100 | 75 | 53 | 63 | 99 | M24X1.5 | 50 | 28.56 | 20.02 | 19.91 | 29 | 34 | 20 |
HSK A vs. HSK A...WH Tolerance ISO key tolerance STANDARD
HSK-A63 key slot tolerance Tolerance Max. gap 0.33
ICTM
STANDARD Max. gap 0.015 Drive key slot range
HSK-A63WH Drive key slot range
Tolerance Drive key slot range Max. gap 0.075
| D | h | h | |||||
| b | L | L | 1 | 2 | |||
| HSK A-WH-ASHR/L-1 | 2 | 3 | |||||
| Bar Max | |||||||
| Square Shank Tool Adapters | h3 | ||||||
| with HSK Exchangeable Shanks | f2 | SS | |||||
| for Turn-Mill Machines | 27° | H5 | |||||
| L5 |
Right-hand shown L Left-hand shown
| Designation | SS | h1 | b | f2 | L | L5 | L2 | L3 | h2 | h3 | H5 | D | |
| HSK A63WH-ASHR/L-25-1 | 63 | 25.0 | 25.0 | 13.00 | 125.00 | 30.00 | 70.00 | 35.00 | 32.0 | 38.0 | 32.00 | 100.00 | |
| HSK A100WH-ASHR/L-32-1 | 100 | 32.0 | 32.0 | 8.00 | 145.00 | 34.00 | 90.00 | 45.00 | 35.0 | 40.0 | 44.00 | 100.00 |
- Complies with the HSK-T (ISO 12164-3) and ICTM standards
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
| Spare Parts | ||||||
| Designation | ||||||
| HSK A-WH-ASHR/L-1 | SR M | 12X30 DIN91 | 5 HW 6.0 | SATZ-M | 12X1-M6 WREN | CH NOZZLE HP M12 |
| Optional, should be ordered separately | ||||||
| HSK A63WH-ASHR/L-2 Twin Square Shank Tool Adapters with HSK Exchangeable Shanks for Turn-Mill Machines | L2 L b | SS L5 | 13 13 100 h 77.4 | Left-hand shown Bar Max | ||
| Designation | SS | L | l1 L2 | h | b | |
| HSK A63WH-ASHR/L-25-2 | 63 | 125.00 | 160.00 95.00 | 25.0 | 25.0 SR M12X30 D | IN915 SATZ-M12X1-M6 |
- Complies with the HSK-T and ICTM standards
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
b h HSK A63WH-ASHR/L-3 L2 45 Bar Max Triple Square Shank Tool Adapters SS with HSK Exchangeable Shanks for f 45° Mounting on Turn-Mill Machines 100 L5 L Left-hand shown
| Designation | SS | L | L2 | F | h | b | |||
| HSK A63WH-ASHR/L-25-3 | 63 | 125.00 | 90.00 | 45.0 | 25.0 | 25.0 | SR M12X30 DIN915 | EZ 83 |
- Complies with the HSK-T and ICTM standards
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
