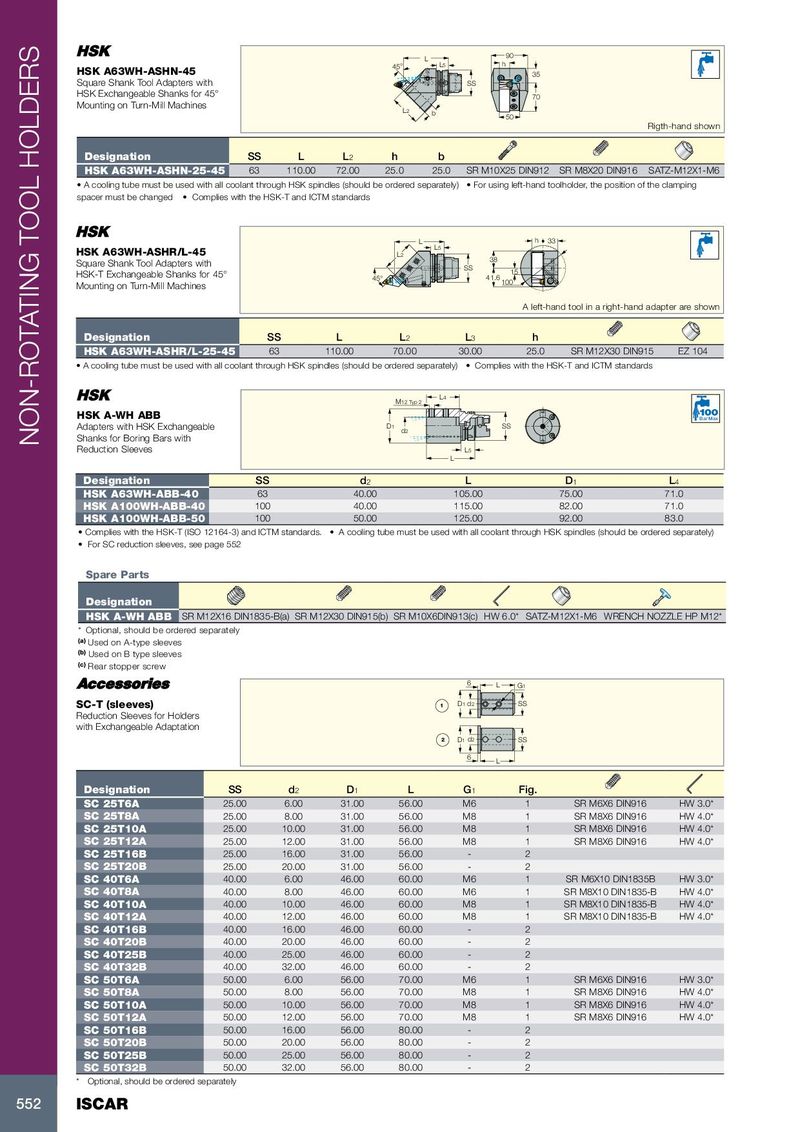

HSK A63WH-ASHN-45 45° L5 h
Square Shank Tool Adapters with SS HSK Exchangeable Shanks for 45° 70 Mounting on Turn-Mill Machines
L2 b 50 Rigth-hand shown
| Designation | SS | L | L2 | h | b | |||
| HSK A63WH-ASHN-25-45 | 63 | 110.00 | 72.00 | 25.0 | 25.0 | SR M10X25 DIN912 SR M8X20 DIN916 | SATZ-M12X1-M6 |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
- For using left-hand toolholder, the position of the clamping
spacer must be changed Complies with the HSK-T and ICTM standards
L h 33
HSK A63WH-ASHR/L-45 L5 L2 Square Shank Tool Adapters with 38 SS 15
HSK-T Exchangeable Shanks for 45° 45° 41.6 Mounting on Turn-Mill Machines 100 A left-hand tool in a right-hand adapter are shown
| Designation | SS | L | L2 | L3 | h | ||
| HSK A63WH-ASHR/L-25-45 | 63 | 110.00 | 70.00 | 30.00 | 25.0 | SR M12X30 DIN915 | EZ 104 |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
- Complies with the HSK-T and ICTM standards
L4 M12 Typ 2
HSK A-WH ABB
Adapters with HSK Exchangeable Bar Max D1 SS d2 Shanks for Boring Bars with Reduction Sleeves L 5 L
| Designation | SS | d2 | L | D1 | L4 | |
| HSK A63WH-ABB-40 | 63 | 40.00 | 105.00 | 75.00 | 71.0 | |
| HSK A100WH-ABB-40 | 100 | 40.00 | 115.00 | 82.00 | 71.0 | |
| HSK A100WH-ABB-50 | 100 | 50.00 | 125.00 | 92.00 | 83.0 |
| • Complies with the HSK-T (ISO 12 • For SC reduction sleeves, see p | 164-3) and IC age 552 | TM standards. | • A cooling t | ube must be | used with all | coolant through HSK spindles (should be ordere | d separately) |
| Spare Parts | |||||||
| Designation | |||||||
| HSK A-WH ABB SR M1 Optional, should be ordered sep (a)Used on A-type sleeves (b)Used on B type sleeves (c)Rear stopper screw | 2X16 DIN183 arately | 5-B(a) SR M1 | 2X30 DIN915( | b) SR M10 | X6DIN913(c) | HW 6.0 SATZ-M12X1-M6 WRENCH NOZ | ZLE HP M12 |
| 6 | L G1 | ||||||
| SC-T (sleeves) Reduction Sleeves for Holders | D1 d2 1 | SS | |||||
| with Exchangeable Adaptation | D1 d2 6 2 | L SS | |||||
| Designation | SS | d2 | D1 | L | G1 | Fig. | |
| SC 25T6A | 25.00 | 6.00 | 31.00 | 56.00 | M6 | 1 SR M6X6 DIN916 | HW 3.0 |
| SC 25T8A | 25.00 | 8.00 | 31.00 | 56.00 | M8 | 1 SR M8X6 DIN916 | HW 4.0 |
| SC 25T10A | 25.00 | 10.00 | 31.00 | 56.00 | M8 | 1 SR M8X6 DIN916 | HW 4.0 |
| SC 25T12A | 25.00 | 12.00 | 31.00 | 56.00 | M8 | 1 SR M8X6 DIN916 | HW 4.0 |
| SC 25T16B | 25.00 | 16.00 | 31.00 | 56.00 | - | 2 | |
| SC 25T20B | 25.00 | 20.00 | 31.00 | 56.00 | - | 2 | |
| SC 40T6A | 40.00 | 6.00 | 46.00 | 60.00 | M6 | 1 SR M6X10 DIN1835B | HW 3.0 |
| SC 40T8A | 40.00 | 8.00 | 46.00 | 60.00 | M6 | 1 SR M8X10 DIN1835-B | HW 4.0 |
| SC 40T10A | 40.00 | 10.00 | 46.00 | 60.00 | M8 | 1 SR M8X10 DIN1835-B | HW 4.0 |
| SC 40T12A | 40.00 | 12.00 | 46.00 | 60.00 | M8 | 1 SR M8X10 DIN1835-B | HW 4.0 |
| SC 40T16B | 40.00 | 16.00 | 46.00 | 60.00 | - | 2 | |
| SC 40T20B | 40.00 | 20.00 | 46.00 | 60.00 | - | 2 | |
| SC 40T25B | 40.00 | 25.00 | 46.00 | 60.00 | - | 2 | |
| SC 40T32B | 40.00 | 32.00 | 46.00 | 60.00 | - | 2 | |
| SC 50T6A | 50.00 | 6.00 | 56.00 | 70.00 | M6 | 1 SR M6X6 DIN916 | HW 3.0 |
| SC 50T8A | 50.00 | 8.00 | 56.00 | 70.00 | M8 | 1 SR M8X6 DIN916 | HW 4.0 |
| SC 50T10A | 50.00 | 10.00 | 56.00 | 70.00 | M8 | 1 SR M8X6 DIN916 | HW 4.0 |
| SC 50T12A | 50.00 | 12.00 | 56.00 | 70.00 | M8 | 1 SR M8X6 DIN916 | HW 4.0 |
| SC 50T16B | 50.00 | 16.00 | 56.00 | 80.00 | - | 2 | |
| SC 50T20B | 50.00 | 20.00 | 56.00 | 80.00 | - | 2 | |
| SC 50T25B | 50.00 | 25.00 | 56.00 | 80.00 | - | 2 | |
| SC 50T32B | 50.00 | 32.00 | 56.00 | 80.00 | - | 2 |
