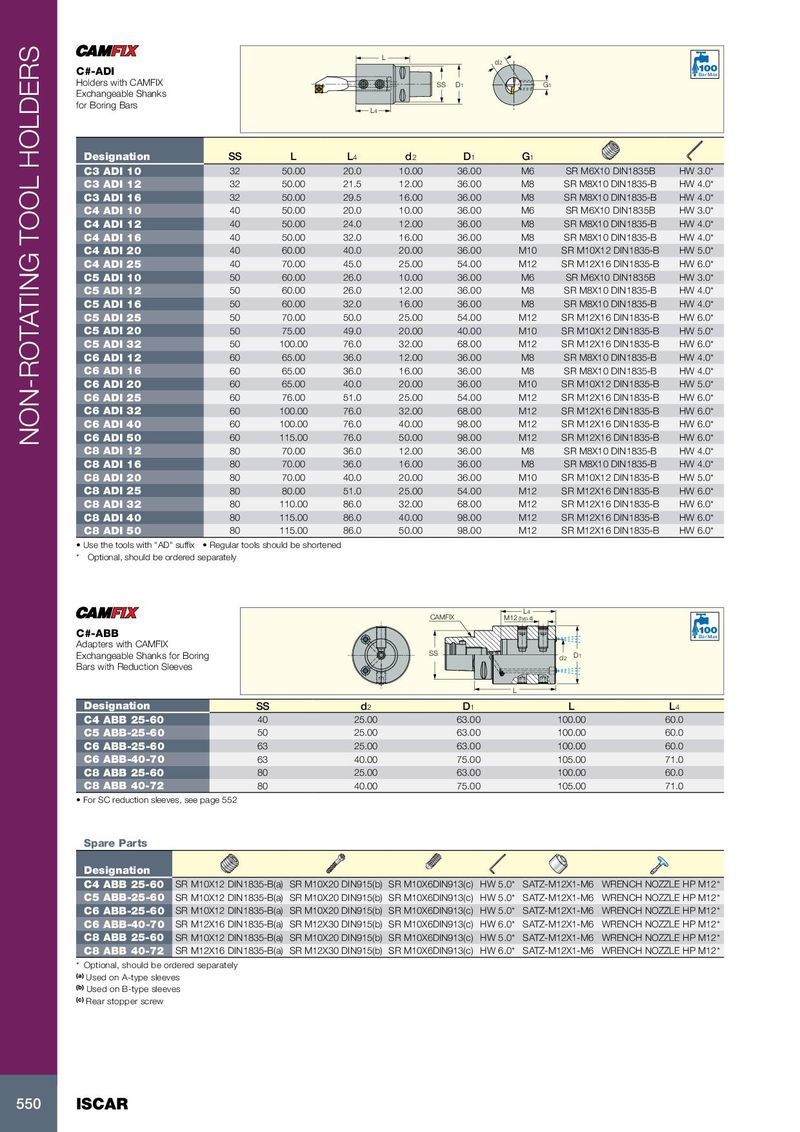

| | | L | | d2 | | | |
| C#-ADI | | | | | | | | Bar Max |
| Holders with CAMFIX Exchangeable Shanks for Boring Bars | | | L4 | SS D1 | | G | 1 | |
| Designation | SS | L | L4 d2 | D1 | G1 | | | |
| C3 ADI 10 | 32 | 50.00 | 20.0 10.00 | 36.00 | M6 | | SR M6X10 DIN1835B | HW 3.0 |
| C3 ADI 12 | 32 | 50.00 | 21.5 12.00 | 36.00 | M8 | | SR M8X10 DIN1835-B | HW 4.0 |
| C3 ADI 16 | 32 | 50.00 | 29.5 16.00 | 36.00 | M8 | | SR M8X10 DIN1835-B | HW 4.0 |
| C4 ADI 10 | 40 | 50.00 | 20.0 10.00 | 36.00 | M6 | | SR M6X10 DIN1835B | HW 3.0 |
| C4 ADI 12 | 40 | 50.00 | 24.0 12.00 | 36.00 | M8 | | SR M8X10 DIN1835-B | HW 4.0 |
| C4 ADI 16 | 40 | 50.00 | 32.0 16.00 | 36.00 | M8 | | SR M8X10 DIN1835-B | HW 4.0 |
| C4 ADI 20 | 40 | 60.00 | 40.0 20.00 | 36.00 | M10 | | SR M10X12 DIN1835-B | HW 5.0 |
| C4 ADI 25 | 40 | 70.00 | 45.0 25.00 | 54.00 | M12 | | SR M12X16 DIN1835-B | HW 6.0 |
| C5 ADI 10 | 50 | 60.00 | 26.0 10.00 | 36.00 | M6 | | SR M6X10 DIN1835B | HW 3.0 |
| C5 ADI 12 | 50 | 60.00 | 26.0 12.00 | 36.00 | M8 | | SR M8X10 DIN1835-B | HW 4.0 |
| C5 ADI 16 | 50 | 60.00 | 32.0 16.00 | 36.00 | M8 | | SR M8X10 DIN1835-B | HW 4.0 |
| C5 ADI 25 | 50 | 70.00 | 50.0 25.00 | 54.00 | M12 | | SR M12X16 DIN1835-B | HW 6.0 |
| C5 ADI 20 | 50 | 75.00 | 49.0 20.00 | 40.00 | M10 | | SR M10X12 DIN1835-B | HW 5.0 |
| C5 ADI 32 | 50 | 100.00 | 76.0 32.00 | 68.00 | M12 | | SR M12X16 DIN1835-B | HW 6.0 |
| C6 ADI 12 | 60 | 65.00 | 36.0 12.00 | 36.00 | M8 | | SR M8X10 DIN1835-B | HW 4.0 |
| C6 ADI 16 | 60 | 65.00 | 36.0 16.00 | 36.00 | M8 | | SR M8X10 DIN1835-B | HW 4.0 |
| C6 ADI 20 | 60 | 65.00 | 40.0 20.00 | 36.00 | M10 | | SR M10X12 DIN1835-B | HW 5.0 |
| C6 ADI 25 | 60 | 76.00 | 51.0 25.00 | 54.00 | M12 | | SR M12X16 DIN1835-B | HW 6.0 |
| C6 ADI 32 | 60 | 100.00 | 76.0 32.00 | 68.00 | M12 | | SR M12X16 DIN1835-B | HW 6.0 |
| C6 ADI 40 | 60 | 100.00 | 76.0 40.00 | 98.00 | M12 | | SR M12X16 DIN1835-B | HW 6.0 |
| C6 ADI 50 | 60 | 115.00 | 76.0 50.00 | 98.00 | M12 | | SR M12X16 DIN1835-B | HW 6.0 |
| C8 ADI 12 | 80 | 70.00 | 36.0 12.00 | 36.00 | M8 | | SR M8X10 DIN1835-B | HW 4.0 |
| C8 ADI 16 | 80 | 70.00 | 36.0 16.00 | 36.00 | M8 | | SR M8X10 DIN1835-B | HW 4.0 |
| C8 ADI 20 | 80 | 70.00 | 40.0 20.00 | 36.00 | M10 | | SR M10X12 DIN1835-B | HW 5.0 |
| C8 ADI 25 | 80 | 80.00 | 51.0 25.00 | 54.00 | M12 | | SR M12X16 DIN1835-B | HW 6.0 |
| C8 ADI 32 | 80 | 110.00 | 86.0 32.00 | 68.00 | M12 | | SR M12X16 DIN1835-B | HW 6.0 |
| C8 ADI 40 | 80 | 115.00 | 86.0 40.00 | 98.00 | M12 | | SR M12X16 DIN1835-B | HW 6.0 |
| C8 ADI 50 | 80 | 115.00 | 86.0 50.00 | 98.00 | M12 | | SR M12X16 DIN1835-B | HW 6.0 |
- Use the tools with "AD" suffix
- Regular tools should be shortened
- Optional, should be ordered separately
| | | CAMFIX L4 M12 (typ.4) | | |
| C#-ABB Adapters with CAMFIX Exchangeable Shanks for Boring Bars with Reduction Sleeves | | | SS L D1 d2 | | Bar Max |
| Designation | SS | d2 | D1 L | L4 | |
| C4 ABB 25-60 | 40 | 25.00 | 63.00 100.00 | 60.0 | |
| C5 ABB-25-60 | 50 | 25.00 | 63.00 100.00 | 60.0 | |
| C6 ABB-25-60 | 63 | 25.00 | 63.00 100.00 | 60.0 | |
| C6 ABB-40-70 | 63 | 40.00 | 75.00 105.00 | 71.0 | |
| C8 ABB 25-60 | 80 | 25.00 | 63.00 100.00 | 60.0 | |
| C8 ABB 40-72 | 80 | 40.00 | 75.00 105.00 | 71.0 | |
- For SC reduction sleeves, see page 552
Spare Parts
| Designation | | | | | | |
| C4 ABB 25-60 | SR M10X12 DIN1835-B(a) | SR M10X20 DIN915(b) | SR M10X6DIN913(c) | HW 5.0 | SATZ-M12X1-M6 | WRENCH NOZZLE HP M12 |
| C5 ABB-25-60 | SR M10X12 DIN1835-B(a) | SR M10X20 DIN915(b) | SR M10X6DIN913(c) | HW 5.0 | SATZ-M12X1-M6 | WRENCH NOZZLE HP M12 |
| C6 ABB-25-60 | SR M10X12 DIN1835-B(a) | SR M10X20 DIN915(b) | SR M10X6DIN913(c) | HW 5.0 | SATZ-M12X1-M6 | WRENCH NOZZLE HP M12 |
| C6 ABB-40-70 | SR M12X16 DIN1835-B(a) | SR M12X30 DIN915(b) | SR M10X6DIN913(c) | HW 6.0 | SATZ-M12X1-M6 | WRENCH NOZZLE HP M12 |
| C8 ABB 25-60 | SR M10X12 DIN1835-B(a) | SR M10X20 DIN915(b) | SR M10X6DIN913(c) | HW 5.0 | SATZ-M12X1-M6 | WRENCH NOZZLE HP M12 |
| C8 ABB 40-72 | SR M12X16 DIN1835-B(a) | SR M12X30 DIN915(b) | SR M10X6DIN913(c) | HW 6.0 | SATZ-M12X1-M6 | WRENCH NOZZLE HP M12 |
- Optional, should be ordered separately
(a) Used on A-type sleeves (b) Used on B-type sleeves (c) Rear stopper screw
