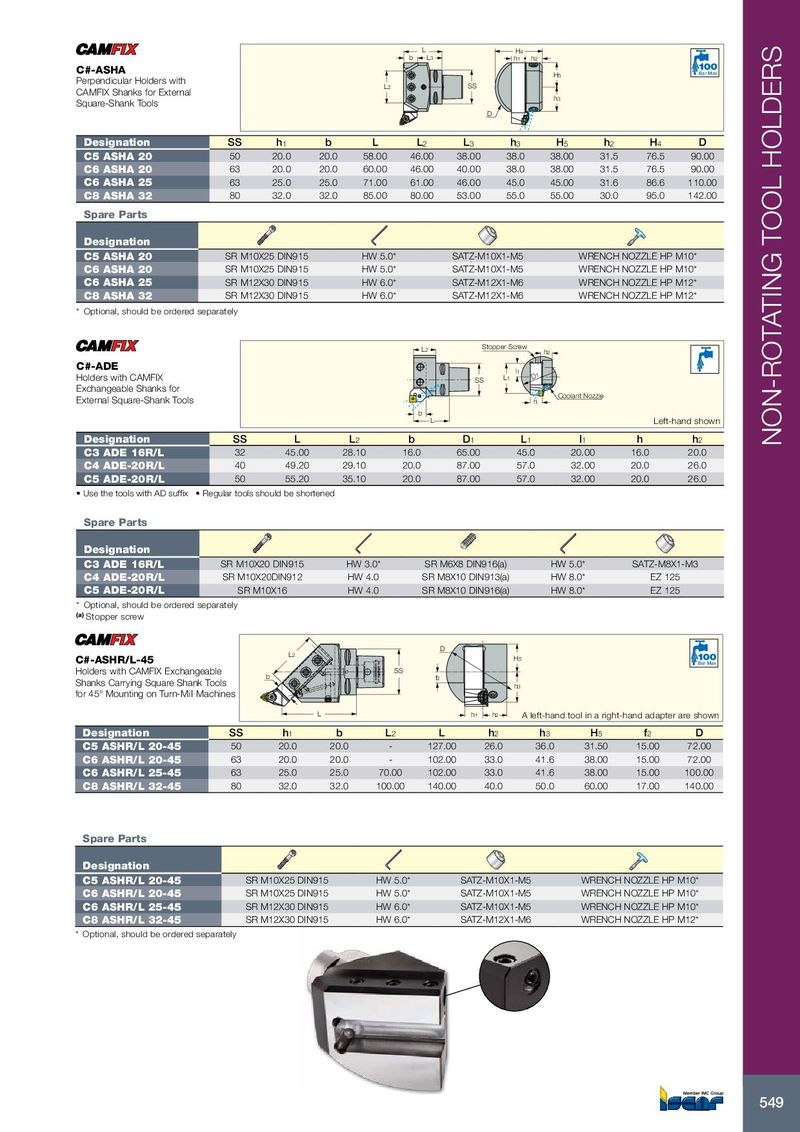

| C#-ASHA Perpendicular Holders with CAMFIX Shanks for External Square-Shank Tools | L2 | L3 b L | SS D | H4 h1 h2 | H5 h3 | Bar Max | |||||
| Designation | SS | h1 | b | L | L2 | L3 | h3 | H5 | h2 | H4 | D |
| C5 ASHA 20 | 50 | 20.0 | 20.0 | 58.00 | 46.00 | 38.00 | 38.0 | 38.00 | 31.5 | 76.5 | 90.00 |
| C6 ASHA 20 | 63 | 20.0 | 20.0 | 60.00 | 46.00 | 40.00 | 38.0 | 38.00 | 31.5 | 76.5 | 90.00 |
| C6 ASHA 25 | 63 | 25.0 | 25.0 | 71.00 | 61.00 | 46.00 | 45.0 | 45.00 | 31.6 | 86.6 | 110.00 |
| C8 ASHA 32 | 80 | 32.0 | 32.0 | 85.00 | 80.00 | 53.00 | 55.0 | 55.00 | 30.0 | 95.0 | 142.00 |
| Spare Parts | |||||||||||
| Designation | |||||||||||
| C5 ASHA 20 | SR M1 | 0X25 DIN915 | HW 5.0 | SATZ-M1 | 0X1-M5 | WRENCH N | OZZLE HP | M10 | |||
| C6 ASHA 20 | SR M1 | 0X25 DIN915 | HW 5.0 | SATZ-M1 | 0X1-M5 | WRENCH N | OZZLE HP | M10 | |||
| C6 ASHA 25 | SR M1 | 2X30 DIN915 | HW 6.0 | SATZ-M1 | 2X1-M6 | WRENCH N | OZZLE HP | M12 | |||
| C8 ASHA 32 | SR M1 | 2X30 DIN915 | HW 6.0 | SATZ-M1 | 2X1-M6 | WRENCH N | OZZLE HP | M12 |
- Optional, should be ordered separately
| C#-ADE Holders with CAMFIX Exchangeable Shanks for External Square-Shank Tools | b L L2 | SS Sto | pper Screw L1 l1 h h2 D1 | Coolant Nozzle | Le | ft-hand shown | |||
| Designation | SS | L | L2 | b | D1 | L1 | l1 | h | h2 |
| C3 ADE 16R/L | 32 | 45.00 | 28.10 | 16.0 | 65.00 | 45.0 | 20.00 | 16.0 | 20.0 |
| C4 ADE-20R/L | 40 | 49.20 | 29.10 | 20.0 | 87.00 | 57.0 | 32.00 | 20.0 | 26.0 |
| C5 ADE-20R/L | 50 | 55.20 | 35.10 | 20.0 | 87.00 | 57.0 | 32.00 | 20.0 | 26.0 |
- Use the tools with AD suffix
- Regular tools should be shortened Spare Parts
| Designation | |||||
| C3 ADE 16R/L | SR M10X20 DIN915 | HW 3.0 | SR M6X8 DIN916(a) | HW 5.0 | SATZ-M8X1-M3 |
| C4 ADE-20R/L | SR M10X20DIN912 | HW 4.0 | SR M8X10 DIN913(a) | HW 8.0 | EZ 125 |
| C5 ADE-20R/L | SR M10X16 | HW 4.0 | SR M8X10 DIN916(a) | HW 8.0 | EZ 125 |
- Optional, should be ordered separately
(a) Stopper screw
| C#-ASHR/L-45 Holders with CAMFIX Exchangea Shanks Carrying Square Shank for 45° Mounting on Turn-Mill Ma | ble Tools chines | b L2 | SS | D f2 | h3 H5 | Bar Max | ||||
| L | h1 h2 | A left-hand | tool in a right- | hand adapte | r are shown | |||||
| Designation | SS | h1 | b | L2 | L | h2 | h3 | H5 | f2 | D |
| C5 ASHR/L 20-45 | 50 | 20.0 | 20.0 | - | 127.00 | 26.0 | 36.0 | 31.50 | 15.00 | 72.00 |
| C6 ASHR/L 20-45 | 63 | 20.0 | 20.0 | - | 102.00 | 33.0 | 41.6 | 38.00 | 15.00 | 72.00 |
| C6 ASHR/L 25-45 | 63 | 25.0 | 25.0 | 70.00 | 102.00 | 33.0 | 41.6 | 38.00 | 15.00 | 100.00 |
| C8 ASHR/L 32-45 | 80 | 32.0 | 32.0 | 100.00 | 140.00 | 40.0 | 50.0 | 60.00 | 17.00 | 140.00 |
Spare Parts
| Designation | ||||
| C5 ASHR/L 20-45 | SR M10X25 DIN915 | HW 5.0 | SATZ-M10X1-M5 | WRENCH NOZZLE HP M10 |
| C6 ASHR/L 20-45 | SR M10X25 DIN915 | HW 5.0 | SATZ-M10X1-M5 | WRENCH NOZZLE HP M10 |
| C6 ASHR/L 25-45 | SR M12X30 DIN915 | HW 6.0 | SATZ-M10X1-M5 | WRENCH NOZZLE HP M10 |
| C8 ASHR/L 32-45 | SR M12X30 DIN915 | HW 6.0 | SATZ-M12X1-M6 | WRENCH NOZZLE HP M12 |
- Optional, should be ordered separately
