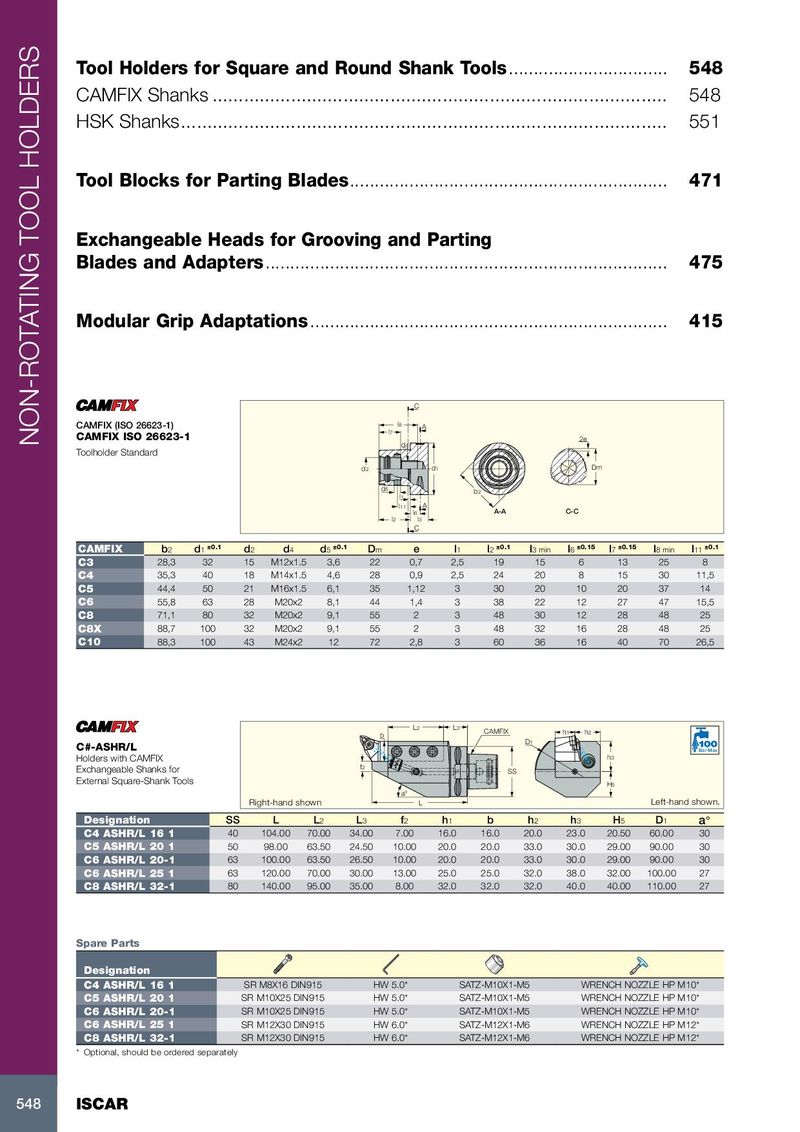

Tool Holders for Square and Round Shank Tools ................................ 548 CAMFIX Shanks ....................................................................................... 548 HSK Shanks ............................................................................................. 551 Tool Blocks for Parting Blades ................................................................ 471 Exchangeable Heads for Grooving and Parting Blades and Adapters ................................................................................. 475 Modular Grip Adaptations ........................................................................ 415 C CAMFIX (ISO 26623-1) l8 A l7 CAMFIX ISO 26623-1 2e NON-ROTATING TOOL HOLDERS d4 Toolholder Standard d2 d1 Dm d5 b2 l1 l11 A l6 A-A C-C l2 l3 C CAMFIX b 2 d 1 ±0.1 d 2 d 4 d 5 ±0.1 D m e l 1 l 2 ±0.1 l 3 min l 6 ±0.15 l 7 ±0.15 l 8 min l 11 ±0.1 C3 28,3 32 15 M12x1.5 3,6 22 0,7 2,5 19 15 6 13 25 8 C4 35,3 40 18 M14x1.5 4,6 28 0,9 2,5 24 20 8 15 30 11,5 C5 44,4 50 21 M16x1.5 6,1 35 1,12 3 30 20 10 20 37 14 C6 55,8 63 28 M20x2 8,1 44 1,4 3 38 22 12 27 47 15,5 C8 71,1 80 32 M20x2 9,1 55 2 3 48 30 12 28 48 25 C8X 88,7 100 32 M20x2 9,1 55 2 3 48 32 16 28 48 25 C10 88,3 100 43 M24x2 12 72 2,8 3 60 36 16 40 70 26,5 L2 L3 b CAMFIX h1 h2 D1 C#-ASHR/L Bar Max Holders with CAMFIX h3 Exchangeable Shanks for f2 SS External Square-Shank Tools H5 a° Right-hand shown L Left-hand shown. Designation SS L L 2 L 3 f 2 h 1 b h 2 h 3 H 5 D 1 a° C4 ASHR/L 16 1 40 104.00 70.00 34.00 7.00 16.0 16.0 20.0 23.0 20.50 60.00 30 C5 ASHR/L 20 1 50 98.00 63.50 24.50 10.00 20.0 20.0 33.0 30.0 29.00 90.00 30 C6 ASHR/L 20-1 63 100.00 63.50 26.50 10.00 20.0 20.0 33.0 30.0 29.00 90.00 30 C6 ASHR/L 25 1 63 120.00 70.00 30.00 13.00 25.0 25.0 32.0 38.0 32.00 100.00 27 C8 ASHR/L 32-1 80 140.00 95.00 35.00 8.00 32.0 32.0 32.0 40.0 40.00 110.00 27 Spare Parts Designation C4 ASHR/L 16 1 SR M8X16 DIN915 HW 5.0* SATZ-M10X1-M5 WRENCH NOZZLE HP M10* C5 ASHR/L 20 1 SR M10X25 DIN915 HW 5.0* SATZ-M10X1-M5 WRENCH NOZZLE HP M10* C6 ASHR/L 20-1 SR M10X25 DIN915 HW 5.0* SATZ-M10X1-M5 WRENCH NOZZLE HP M10* C6 ASHR/L 25 1 SR M12X30 DIN915 HW 6.0* SATZ-M12X1-M6 WRENCH NOZZLE HP M12* C8 ASHR/L 32-1 SR M12X30 DIN915 HW 6.0* SATZ-M12X1-M6 WRENCH NOZZLE HP M12* * Optional, should be ordered separately 548 ISCAR
