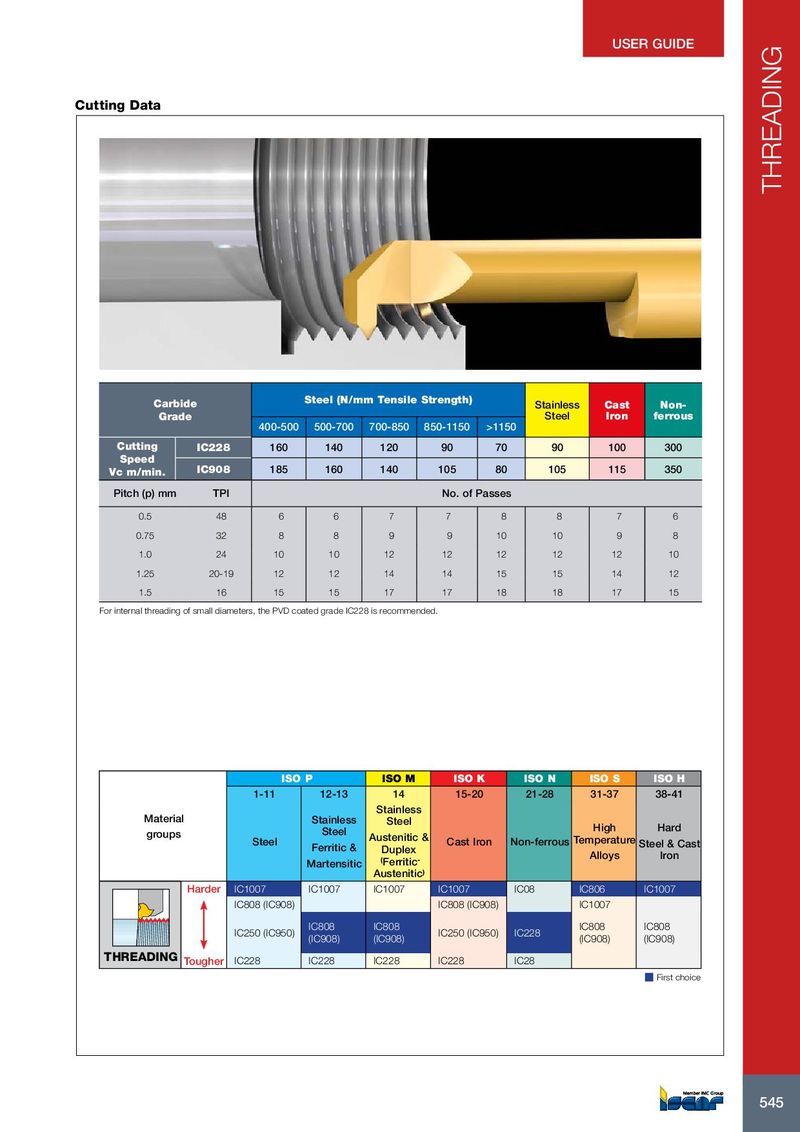

Cutting Data
| Carbi Grad | de e | Steel (N/m | m Tensile | Strength) | Stainless Steel | Cast Iron | Non- ferrous | ||
| 400-500 | 500-700 | 700-850 | 850-1150 | >1150 | |||||
| Cutting | IC228 | 160 | 140 | 120 | 90 | 70 | 90 | 100 | 300 |
| Speed Vc m/min. | IC908 | 185 | 160 | 140 | 105 | 80 | 105 | 115 | 350 |
| Pitch (p) mm | TPI | No. of | Passes | ||||||
| 0.5 | 48 | 6 | 6 | 7 | 7 | 8 | 8 | 7 | 6 |
| 0.75 | 32 | 8 | 8 | 9 | 9 | 10 | 10 | 9 | 8 |
| 1.0 | 24 | 10 | 10 | 12 | 12 | 12 | 12 | 12 | 10 |
| 1.25 | 20-19 | 12 | 12 | 14 | 14 | 15 | 15 | 14 | 12 |
| 1.5 | 16 | 15 | 15 | 17 | 17 | 18 | 18 | 17 | 15 |
For internal threading of small diameters, the PVD coated grade IC228 is recommended.
| ISO | P | ISO M | ISO K | ISO N | ISO S | ISO H | ||
| Material groups | 1-11 Steel | 12-13 Stainless Steel Ferritic & Martensitic | 14 Stainless Steel Austenitic & Duplex (Ferritic- Austenitic) | 15-20 Cast Iron | 21-28 Non-ferrous | 31-37 High Temperatur Alloys | 38-41 e Hard Steel & Cast Iron | |
| Harder | IC1007 | IC1007 | IC1007 | IC1007 | IC08 | IC806 | IC1007 | |
| IC808 (IC908) | IC808 (IC908) | IC1007 | ||||||
| IC250 (IC950) | IC808 (IC908) | IC808 (IC908) | IC250 (IC950) | IC228 | IC808 (IC908) | IC808 (IC908) | ||
| THREADING | Tougher | IC228 | IC228 | IC228 | IC228 | IC28 |
First choice
