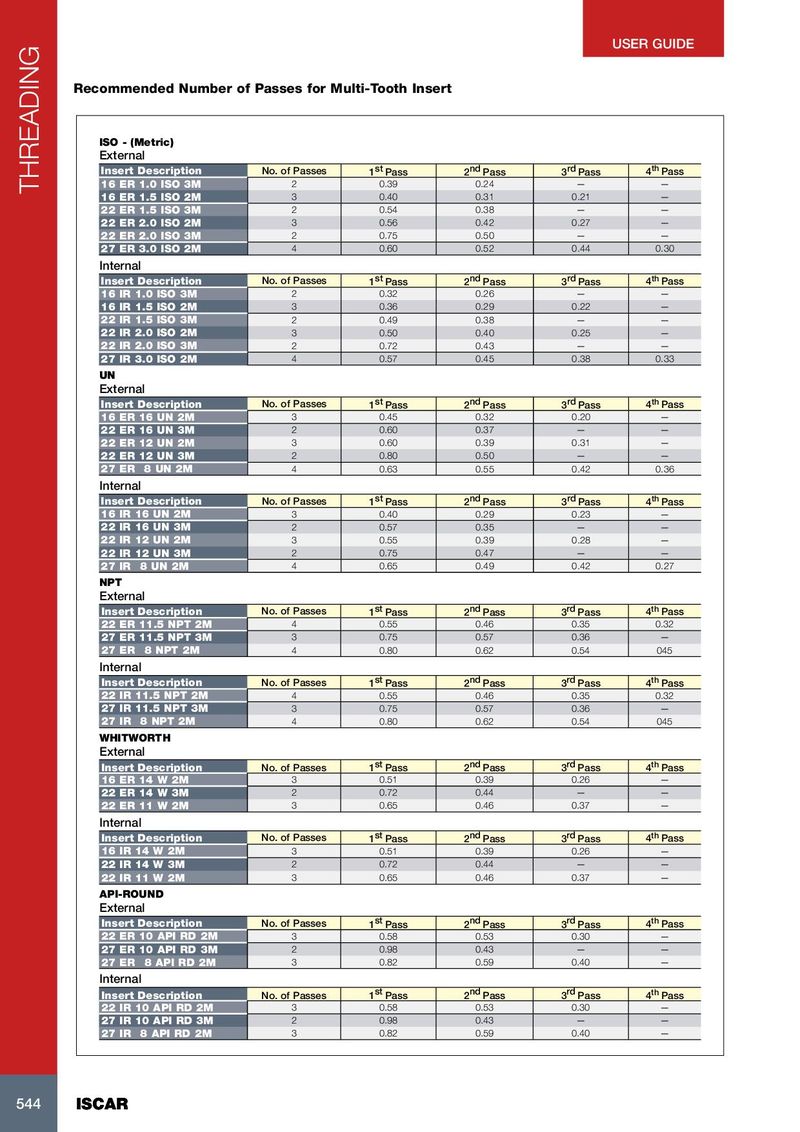

Recommended Number of Passes for Multi-Tooth Insert
| ISO - (Metric) External | |||||
| Insert Description | No. of Passes | 1st Pass | 2nd Pass | 3rd Pass | 4th Pass |
| 16 ER 1.0 ISO 3M 16 ER 1.5 ISO 2M | 2 3 | 0.39 0.40 | 0.24 0.31 | — 0.21 | — — |
| 22 ER 1.5 ISO 3M | 2 | 0.54 | 0.38 | — | — |
| 22 ER 2.0 ISO 2M 22 ER 20 ISO 3M | 3 2 | 0.56 075 | 0.42 050 | 0.27 | — |
| . | . | . | — | — | |
| 27 ER 3.0 ISO 2M | 4 | 0.60 | 0.52 | 0.44 | 0.30 |
| Internal | |||||
| Insert Description | No. of Passes | 1st Pass | 2nd Pass | 3rd Pass | 4th Pass |
| 16 IR 1.0 ISO 3M 16 IR 1.5 ISO 2M | 2 3 | 0.32 0.36 | 0.26 0.29 | — 0.22 | — — |
| 22 IR 1.5 ISO 3M | 2 | 0.49 | 0.38 | — | — |
| 22 IR 2.0 ISO 2M 22 IR 20 ISO 3M | 3 2 | 0.50 072 | 0.40 043 | 0.25 | — |
| . 27 IR 3.0 ISO 2M | 4 | . 0.57 | . 0.45 | — 0.38 | — 0.33 |
| UN External | |||||
| Insert Description | No. of Passes | 1st Pass | 2nd Pass | 3rd Pass | 4th Pass |
| 16 ER 16 UN 2M 22 ER 16 UN 3M | 3 2 | 0.45 0.60 | 0.32 0.37 | 0.20 — | — — |
| 22 ER 12 UN 2M | 3 | 0.60 | 0.39 | 0.31 | — |
| 22 ER 12 UN 3M | 2 | 0.80 | 0.50 | — | — |
| 27 ER 8 UN 2M | 4 | 0.63 | 0.55 | 0.42 | 0.36 |
| Internal | |||||
| Insert Description | No. of Passes | 1st Pass | 2nd Pass | 3rd Pass | 4th Pass |
| 16 IR 16 UN 2M | 3 | 0.40 | 0.29 | 0.23 | — |
| 22 IR 16 UN 3M | 2 | 0.57 | 0.35 | — | — |
| 22 IR 12 UN 2M | 3 | 0.55 | 0.39 | 0.28 | — |
| 22 IR 12 UN 3M | 2 | 0.75 | 0.47 | — | — |
| 27 IR 8 UN 2M | 4 | 0.65 | 0.49 | 0.42 | 0.27 |
| NPT | |||||
| External | |||||
| Insert Description | No. of Passes | 1st Pass | 2nd Pass | 3rd Pass | 4th Pass |
| 22 ER 11.5 NPT 2M | 4 | 0.55 | 0.46 | 0.35 | 0.32 |
| 27 ER 11.5 NPT 3M | 3 | 0.75 | 0.57 | 0.36 | — |
| 27 ER 8 NPT 2M | 4 | 0.80 | 0.62 | 0.54 | 045 |
| Internal | |||||
| Insert Description | No. of Passes | 1st Pass | 2nd Pass | 3rd Pass | 4th Pass |
| 22 IR 11.5 NPT 2M 27 IR 115 NPT 3M | 4 3 | 0.55 075 | 0.46 057 | 0.35 036 | 0.32 — |
| . 27 IR 8 NPT 2M | 4 | . 0.80 | . 0.62 | . 0.54 | 045 |
| WHITWORTH | |||||
| External | |||||
| Insert Description | No. of Passes | 1st Pass | 2nd Pass | 3rd Pass | 4th Pass |
| 16 ER 14 W 2M 22 ER 14 W 3M | 3 2 | 0.51 0.72 | 0.39 0.44 | 0.26 — | — — |
| 22 ER 11 W 2M | 3 | 0.65 | 0.46 | 0.37 | — |
| Internal | |||||
| Insert Description | No. of Passes | 1st Pass | 2nd Pass | 3rd Pass | 4th Pass |
| 16 IR 14 W 2M 22 IR 14 W 3M | 3 2 | 0.51 0.72 | 0.39 0.44 | 0.26 — | — — |
| 22 IR 11 W 2M | 3 | 0.65 | 0.46 | 0.37 | — |
| API-ROUND | |||||
| External | |||||
| Insert Description | No. of Passes | 1st Pass | 2nd Pass | 3rd Pass | 4th Pass |
| 22 ER 10 API RD 2M 27 ER 10 API RD 3M | 3 2 | 0.58 0.98 | 0.53 0.43 | 0.30 — | — — |
| 27 ER 8 API RD 2M | 3 | 0.82 | 0.59 | 0.40 | — |
| Internal | |||||
| Insert Description | No. of Passes | 1st Pass | 2nd Pass | 3rd Pass | 4th Pass |
| 22 IR 10 API RD 2M | 3 | 0.58 | 0.53 | 0.30 | — |
| 27 IR 10 API RD 3M 27 IR 8 API RD 2M | 2 3 | 0.98 0.82 | 0.43 0.59 | — 0.40 | — — |
