| SS | |||||

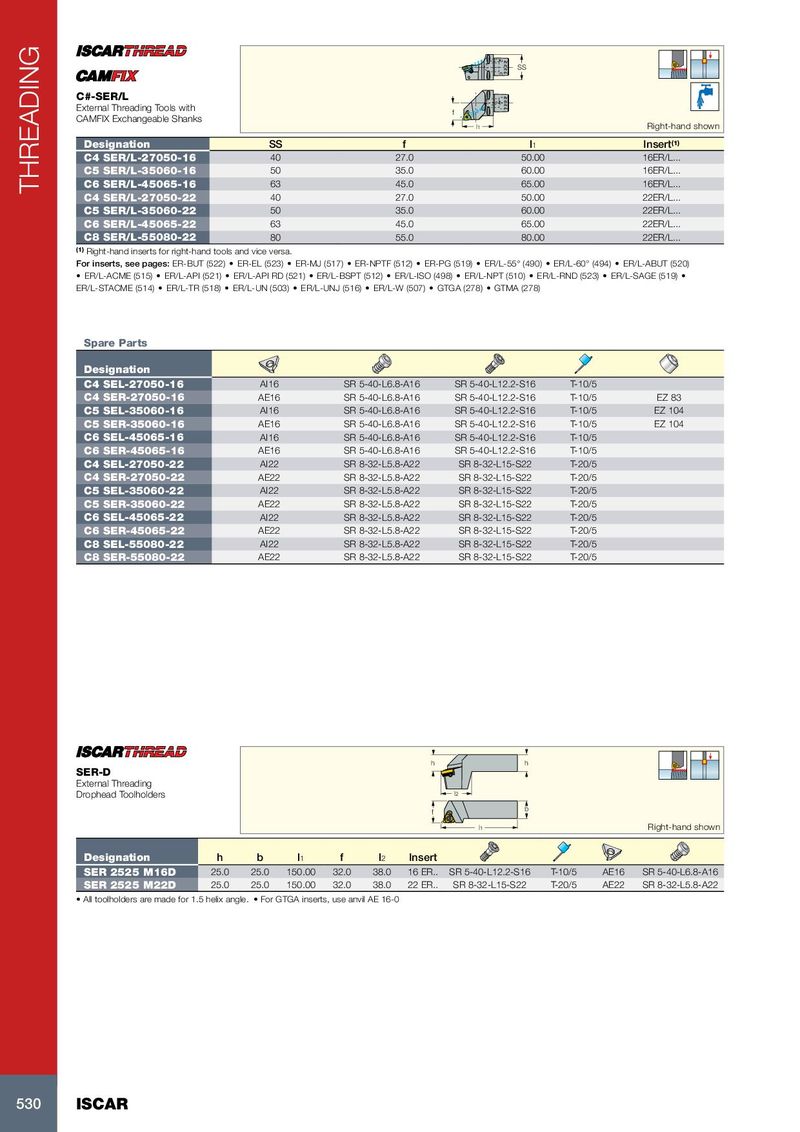

| C#-SER/L External Threading Tools with CAMFIX Exchangeable Shanks | f l1 | Right-hand shown | |||
| Designation | SS | f | l1 | Insert(1) | |
| C4 SER/L-27050-16 | 40 | 27.0 | 50.00 | 16ER/L... | |
| C5 SER/L-35060-16 | 50 | 35.0 | 60.00 | 16ER/L... | |
| C6 SER/L-45065-16 | 63 | 45.0 | 65.00 | 16ER/L... | |
| C4 SER/L-27050-22 | 40 | 27.0 | 50.00 | 22ER/L... | |
| C5 SER/L-35060-22 | 50 | 35.0 | 60.00 | 22ER/L... | |
| C6 SER/L-45065-22 | 63 | 45.0 | 65.00 | 22ER/L... | |
| C8 SER/L-55080-22 | 80 | 55.0 | 80.00 | 22ER/L... |
(1) Right-hand inserts for right-hand tools and vice versa. For inserts, see pages: ER-BUT (522) ER-EL (523) ER-MJ (517) ER-NPTF (512) ER-PG (519) ER/L-55° (490) ER/L-60° (494) ER/L-ABUT (520)
- ER/L-ACME (515)
- ER/L-API (521)
- ER/L-API RD (521)
- ER/L-BSPT (512)
- ER/L-ISO (498)
- ER/L-NPT (510)
- ER/L-RND (523)
- ER/L-SAGE (519)
ER/L-STACME (514) ER/L-TR (518) ER/L-UN (503) ER/L-UNJ (516) ER/L-W (507) GTGA (278) GTMA (278)
Spare Parts
| Designation | |||||
| C4 SEL-27050-16 | AI16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | |
| C4 SER-27050-16 | AE16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | EZ 83 |
| C5 SEL-35060-16 | AI16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | EZ 104 |
| C5 SER-35060-16 | AE16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | EZ 104 |
| C6 SEL-45065-16 | AI16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | |
| C6 SER-45065-16 | AE16 | SR 5-40-L6.8-A16 | SR 5-40-L12.2-S16 | T-10/5 | |
| C4 SEL-27050-22 | AI22 | SR 8-32-L5.8-A22 | SR 8-32-L15-S22 | T-20/5 | |
| C4 SER-27050-22 | AE22 | SR 8-32-L5.8-A22 | SR 8-32-L15-S22 | T-20/5 | |
| C5 SEL-35060-22 | AI22 | SR 8-32-L5.8-A22 | SR 8-32-L15-S22 | T-20/5 | |
| C5 SER-35060-22 | AE22 | SR 8-32-L5.8-A22 | SR 8-32-L15-S22 | T-20/5 | |
| C6 SEL-45065-22 | AI22 | SR 8-32-L5.8-A22 | SR 8-32-L15-S22 | T-20/5 | |
| C6 SER-45065-22 | AE22 | SR 8-32-L5.8-A22 | SR 8-32-L15-S22 | T-20/5 | |
| C8 SEL-55080-22 | AI22 | SR 8-32-L5.8-A22 | SR 8-32-L15-S22 | T-20/5 | |
| C8 SER-55080-22 | AE22 | SR 8-32-L5.8-A22 | SR 8-32-L15-S22 | T-20/5 |
h h
SER-D
External Threading Drophead Toolholders l2 f b l1 Right-hand shown
| Designation | h | b | l1 | f | l2 | Insert | ||||
| SER 2525 M16D | 25.0 | 25.0 | 150.00 | 32.0 | 38.0 | 16 ER.. | SR 5-40-L12.2-S16 | T-10/5 | AE16 | SR 5-40-L6.8-A16 |
| SER 2525 M22D | 25.0 | 25.0 | 150.00 | 32.0 | 38.0 | 22 ER.. | SR 8-32-L15-S22 | T-20/5 | AE22 | SR 8-32-L5.8-A22 |
- All toolholders are made for 1.5 helix angle.
- For GTGA inserts, use anvil AE 16-0
