Каталог Iscar токарный инструмент 2017 - страница 533

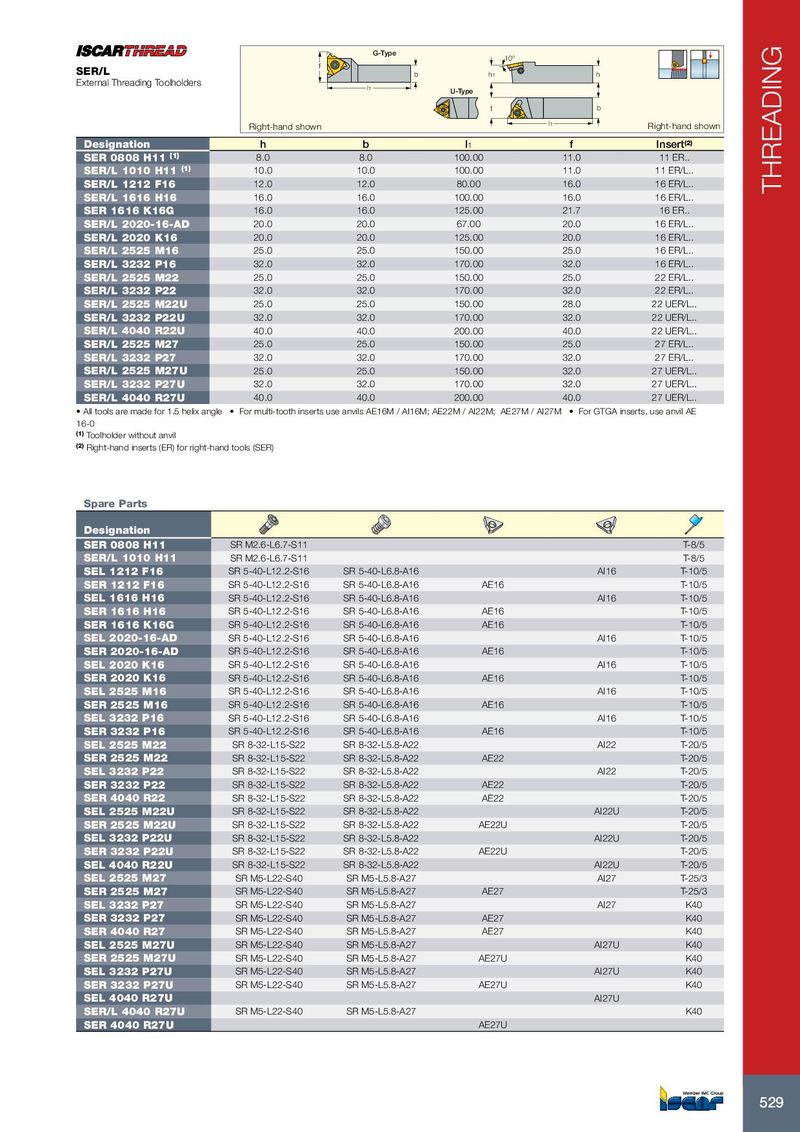

G-Type 10° f SER/L b h1 h External Threading Toolholders l1 U-Type f b Right-hand shown l1 Right-hand shown Designation h b l 1 f Insert (2) SER 0808 H11 (1) 8.0 8.0 100.00 11.0 11 ER.. SER/L 1010 H11 (1) 10.0 10.0 100.00 11.0 11 ER/L.. SER/L 1212 F16 12.0 12.0 80.00 16.0 16 ER/L.. THREADING SER/L 1616 H16 16.0 16.0 100.00 16.0 16 ER/L.. SER 1616 K16G 16.0 16.0 125.00 21.7 16 ER.. SER/L 2020-16-AD 20.0 20.0 67.00 20.0 16 ER/L.. SER/L 2020 K16 20.0 20.0 125.00 20.0 16 ER/L.. SER/L 2525 M16 25.0 25.0 150.00 25.0 16 ER/L.. SER/L 3232 P16 32.0 32.0 170.00 32.0 16 ER/L.. SER/L 2525 M22 25.0 25.0 150.00 25.0 22 ER/L.. SER/L 3232 P22 32.0 32.0 170.00 32.0 22 ER/L.. SER/L 2525 M22U 25.0 25.0 150.00 28.0 22 UER/L.. SER/L 3232 P22U 32.0 32.0 170.00 32.0 22 UER/L.. SER/L 4040 R22U 40.0 40.0 200.00 40.0 22 UER/L.. SER/L 2525 M27 25.0 25.0 150.00 25.0 27 ER/L.. SER/L 3232 P27 32.0 32.0 170.00 32.0 27 ER/L.. SER/L 2525 M27U 25.0 25.0 150.00 32.0 27 UER/L.. SER/L 3232 P27U 32.0 32.0 170.00 32.0 27 UER/L.. SER/L 4040 R27U 40.0 40.0 200.00 40.0 27 UER/L.. • All tools are made for 1.5 helix angle • For multi-tooth inserts use anvils AE16M / AI16M; AE22M / AI22M; AE27M / AI27M • For GTGA inserts, use anvil AE 16-0 (1) Toolholder without anvil (2) Right-hand inserts (ER) for right-hand tools (SER) Spare Parts Designation SER 0808 H11 SR M2.6-L6.7-S11 T-8/5 SER/L 1010 H11 SR M2.6-L6.7-S11 T-8/5 SEL 1212 F16 SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AI16 T-10/5 SER 1212 F16 SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AE16 T-10/5 SEL 1616 H16 SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AI16 T-10/5 SER 1616 H16 SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AE16 T-10/5 SER 1616 K16G SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AE16 T-10/5 SEL 2020-16-AD SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AI16 T-10/5 SER 2020-16-AD SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AE16 T-10/5 SEL 2020 K16 SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AI16 T-10/5 SER 2020 K16 SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AE16 T-10/5 SEL 2525 M16 SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AI16 T-10/5 SER 2525 M16 SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AE16 T-10/5 SEL 3232 P16 SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AI16 T-10/5 SER 3232 P16 SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AE16 T-10/5 SEL 2525 M22 SR 8-32-L15-S22 SR 8-32-L5.8-A22 AI22 T-20/5 SER 2525 M22 SR 8-32-L15-S22 SR 8-32-L5.8-A22 AE22 T-20/5 SEL 3232 P22 SR 8-32-L15-S22 SR 8-32-L5.8-A22 AI22 T-20/5 SER 3232 P22 SR 8-32-L15-S22 SR 8-32-L5.8-A22 AE22 T-20/5 SER 4040 R22 SR 8-32-L15-S22 SR 8-32-L5.8-A22 AE22 T-20/5 SEL 2525 M22U SR 8-32-L15-S22 SR 8-32-L5.8-A22 AI22U T-20/5 SER 2525 M22U SR 8-32-L15-S22 SR 8-32-L5.8-A22 AE22U T-20/5 SEL 3232 P22U SR 8-32-L15-S22 SR 8-32-L5.8-A22 AI22U T-20/5 SER 3232 P22U SR 8-32-L15-S22 SR 8-32-L5.8-A22 AE22U T-20/5 SEL 4040 R22U SR 8-32-L15-S22 SR 8-32-L5.8-A22 AI22U T-20/5 SEL 2525 M27 SR M5-L22-S40 SR M5-L5.8-A27 AI27 T-25/3 SER 2525 M27 SR M5-L22-S40 SR M5-L5.8-A27 AE27 T-25/3 SEL 3232 P27 SR M5-L22-S40 SR M5-L5.8-A27 AI27 K40 SER 3232 P27 SR M5-L22-S40 SR M5-L5.8-A27 AE27 K40 SER 4040 R27 SR M5-L22-S40 SR M5-L5.8-A27 AE27 K40 SEL 2525 M27U SR M5-L22-S40 SR M5-L5.8-A27 AI27U K40 SER 2525 M27U SR M5-L22-S40 SR M5-L5.8-A27 AE27U K40 SEL 3232 P27U SR M5-L22-S40 SR M5-L5.8-A27 AI27U K40 SER 3232 P27U SR M5-L22-S40 SR M5-L5.8-A27 AE27U K40 SEL 4040 R27U AI27U SER/L 4040 R27U SR M5-L22-S40 SR M5-L5.8-A27 K40 SER 4040 R27U AE27U 529
