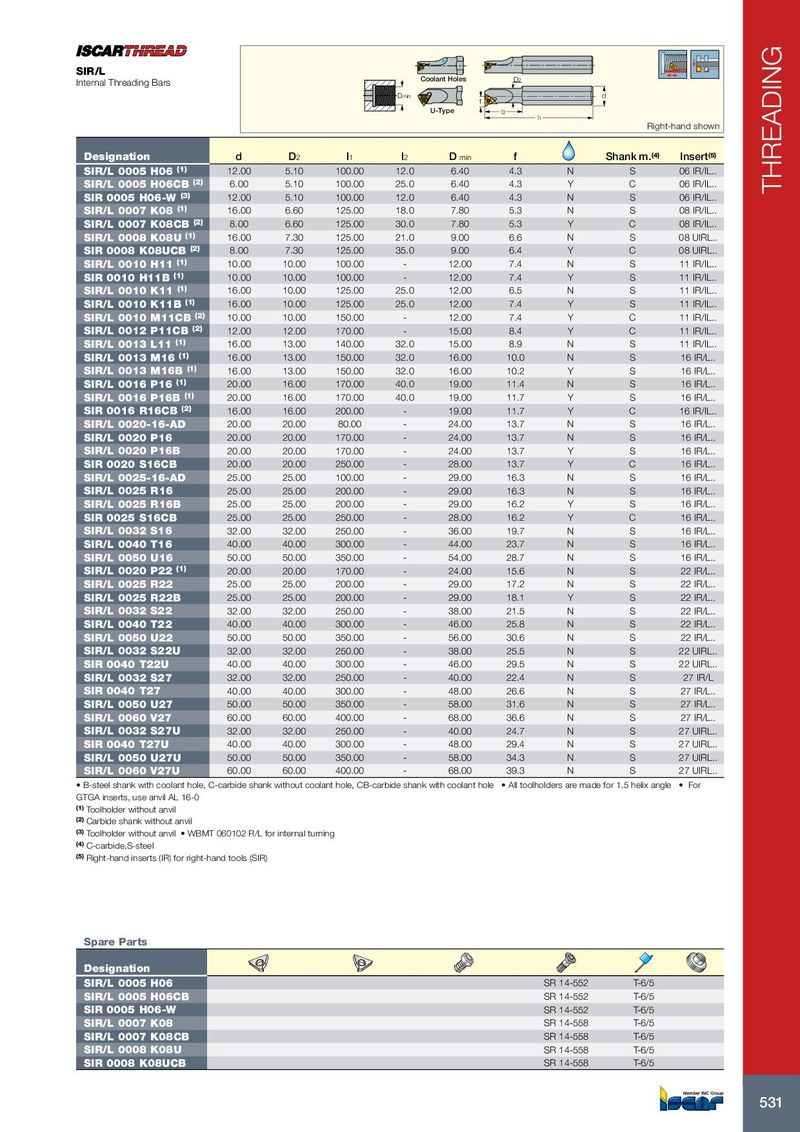

Каталог Iscar токарный инструмент 2017 - страница 535
Навигация
Каталог Iscar резьбонарезные фрезы
Каталог Iscar инструмент для обработки алюминиевых колёс
Каталог Iscar державки и пластины для нарезания резьбы 2022
Каталог Iscar расточные системы 2022
Каталог Iscar высокоточные развертки и метчики 2022
Токарные инструменты Iscar (часть 2) 2026
| SIR/L | Coolant Holes | D2 | ||||||
| Internal Threading Bars | Dmin | U-Type | l l2 f | d | ||||
| 1 | Right-hand shown | |||||||
| Designation | d | D2 | l1 | l2 | Dmin | f | Shank m.(4) Insert(5) | |
| SIR/L 0005 H06(1) | 12.00 | 5.10 | 100.00 | 12.0 | 6.40 | 4.3 | N | S 06 IR/IL.. |
| SIR/L 0005 H06CB(2) | 6.00 | 5.10 | 100.00 | 25.0 | 6.40 | 4.3 | Y | C 06 IR/IL.. |
| SIR 0005 H06-W(3) | 12.00 | 5.10 | 100.00 | 12.0 | 6.40 | 4.3 | N | S 06 IR/IL.. |
| SIR/L 0007 K08(1) | 16.00 | 6.60 | 125.00 | 18.0 | 7.80 | 5.3 | N | S 08 IR/IL.. |
| SIR/L 0007 K08CB(2) | 8.00 | 6.60 | 125.00 | 30.0 | 7.80 | 5.3 | Y | C 08 IR/IL.. |
| SIR/L 0008 K08U(1) | 16.00 | 7.30 | 125.00 | 21.0 | 9.00 | 6.6 | N | S 08 UIRL.. |
| SIR 0008 K08UCB(2) | 8.00 | 7.30 | 125.00 | 35.0 | 9.00 | 6.4 | Y | C 08 UIRL.. |
| SIR/L 0010 H11(1) | 10.00 | 10.00 | 100.00 | - | 12.00 | 7.4 | N | S 11 IR/IL.. |
| SIR 0010 H11B(1) | 10.00 | 10.00 | 100.00 | - | 12.00 | 7.4 | Y | S 11 IR/IL.. |
| SIR/L 0010 K11(1) | 16.00 | 10.00 | 125.00 | 25.0 | 12.00 | 6.5 | N | S 11 IR/IL.. |
| SIR/L 0010 K11B(1) | 16.00 | 10.00 | 125.00 | 25.0 | 12.00 | 7.4 | Y | S 11 IR/IL.. |
| SIR/L 0010 M11CB(2) | 10.00 | 10.00 | 150.00 | - | 12.00 | 7.4 | Y | C 11 IR/IL.. |
| SIR/L 0012 P11CB(2) | 12.00 | 12.00 | 170.00 | - | 15.00 | 8.4 | Y | C 11 IR/IL.. |
| SIR/L 0013 L11(1) | 16.00 | 13.00 | 140.00 | 32.0 | 15.00 | 8.9 | N | S 11 IR/IL.. |
| SIR/L 0013 M16(1) | 16.00 | 13.00 | 150.00 | 32.0 | 16.00 | 10.0 | N | S 16 IR/L.. |
| SIR/L 0013 M16B(1) | 16.00 | 13.00 | 150.00 | 32.0 | 16.00 | 10.2 | Y | S 16 IR/L.. |
| SIR/L 0016 P16(1) | 20.00 | 16.00 | 170.00 | 40.0 | 19.00 | 11.4 | N | S 16 IR/L.. |
| SIR/L 0016 P16B(1) | 20.00 | 16.00 | 170.00 | 40.0 | 19.00 | 11.7 | Y | S 16 IR/L.. |
| SIR 0016 R16CB(2) | 16.00 | 16.00 | 200.00 | - | 19.00 | 11.7 | Y | C 16 IR/IL.. |
| SIR/L 0020-16-AD | 20.00 | 20.00 | 80.00 | - | 24.00 | 13.7 | N | S 16 IR/L.. |
| SIR/L 0020 P16 | 20.00 | 20.00 | 170.00 | - | 24.00 | 13.7 | N | S 16 IR/L.. |
| SIR/L 0020 P16B | 20.00 | 20.00 | 170.00 | - | 24.00 | 13.7 | Y | S 16 IR/L.. |
| SIR 0020 S16CB | 20.00 | 20.00 | 250.00 | - | 28.00 | 13.7 | Y | C 16 IR/L.. |
| SIR/L 0025-16-AD | 25.00 | 25.00 | 100.00 | - | 29.00 | 16.3 | N | S 16 IR/L.. |
| SIR/L 0025 R16 | 25.00 | 25.00 | 200.00 | - | 29.00 | 16.3 | N | S 16 IR/L.. |
| SIR/L 0025 R16B | 25.00 | 25.00 | 200.00 | - | 29.00 | 16.2 | Y | S 16 IR/L.. |
| SIR 0025 S16CB | 25.00 | 25.00 | 250.00 | - | 28.00 | 16.2 | Y | C 16 IR/L.. |
| SIR/L 0032 S16 | 32.00 | 32.00 | 250.00 | - | 36.00 | 19.7 | N | S 16 IR/L.. |
| SIR/L 0040 T16 | 40.00 | 40.00 | 300.00 | - | 44.00 | 23.7 | N | S 16 IR/L.. |
| SIR/L 0050 U16 | 50.00 | 50.00 | 350.00 | - | 54.00 | 28.7 | N | S 16 IR/L.. |
| SIR/L 0020 P22(1) | 20.00 | 20.00 | 170.00 | - | 24.00 | 15.6 | N | S 22 IR/L.. |
| SIR/L 0025 R22 | 25.00 | 25.00 | 200.00 | - | 29.00 | 17.2 | N | S 22 IR/L.. |
| SIR/L 0025 R22B | 25.00 | 25.00 | 200.00 | - | 29.00 | 18.1 | Y | S 22 IR/L.. |
| SIR/L 0032 S22 | 32.00 | 32.00 | 250.00 | - | 38.00 | 21.5 | N | S 22 IR/L.. |
| SIR/L 0040 T22 | 40.00 | 40.00 | 300.00 | - | 46.00 | 25.8 | N | S 22 IR/L.. |
| SIR/L 0050 U22 | 50.00 | 50.00 | 350.00 | - | 56.00 | 30.6 | N | S 22 IR/L.. |
| SIR/L 0032 S22U | 32.00 | 32.00 | 250.00 | - | 38.00 | 25.5 | N | S 22 UIRL.. |
| SIR 0040 T22U | 40.00 | 40.00 | 300.00 | - | 46.00 | 29.5 | N | S 22 UIRL.. |
| SIR/L 0032 S27 | 32.00 | 32.00 | 250.00 | - | 40.00 | 22.4 | N | S 27 IR/L |
| SIR 0040 T27 | 40.00 | 40.00 | 300.00 | - | 48.00 | 26.6 | N | S 27 IR/L.. |
| SIR/L 0050 U27 | 50.00 | 50.00 | 350.00 | - | 58.00 | 31.6 | N | S 27 IR/L.. |
| SIR/L 0060 V27 | 60.00 | 60.00 | 400.00 | - | 68.00 | 36.6 | N | S 27 IR/L.. |
| SIR/L 0032 S27U | 32.00 | 32.00 | 250.00 | - | 40.00 | 24.7 | N | S 27 UIRL.. |
| SIR 0040 T27U | 40.00 | 40.00 | 300.00 | - | 48.00 | 29.4 | N | S 27 UIRL.. |
| SIR/L 0050 U27U | 50.00 | 50.00 | 350.00 | - | 58.00 | 34.3 | N | S 27 UIRL.. |
| SIR/L 0060 V27U | 60.00 | 60.00 | 400.00 | - | 68.00 | 39.3 | N | S 27 UIRL.. |
- B-steel shank with coolant hole, C-carbide shank without coolant hole, CB-carbide shank with coolant hole
- All toolholders are made for 1.5 helix angle
- For
GTGA inserts, use anvil AL 16-0 (1) Toolholder without anvil (2) Carbide shank without anvil (3) Toolholder without anvil WBMT 060102 R/L for internal turning (4) C-carbide,S-steel (5) Right-hand inserts (IR) for right-hand tools (SIR)
Spare Parts
| Designation | ||
| SIR/L 0005 H06 | SR 14-552 | T-6/5 |
| SIR/L 0005 H06CB | SR 14-552 | T-6/5 |
| SIR 0005 H06-W | SR 14-552 | T-6/5 |
| SIR/L 0007 K08 | SR 14-558 | T-6/5 |
| SIR/L 0007 K08CB | SR 14-558 | T-6/5 |
| SIR/L 0008 K08U | SR 14-558 | T-6/5 |
| SIR 0008 K08UCB | SR 14-558 | T-6/5 |
