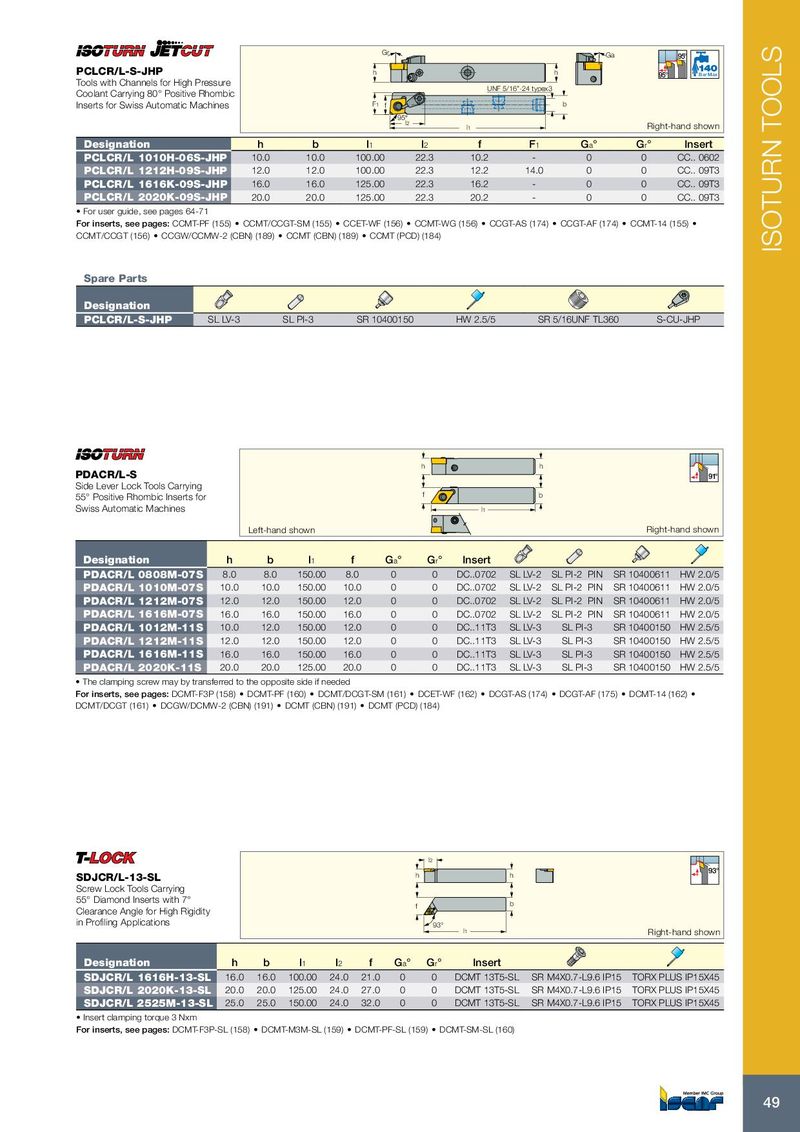

| PCLCR/L-S-JHP Tools with Channels for High Pressure Coolant Carrying 80° Positive Rhombic Inserts for Swiss Automatic Machines | h F1 f Gr | l2 95° | l1 UNF 5/ | 16”-24 typex3 b h | Ga | Right-hand shown 95° 95° Bar Max | ||
| Designation | h | b | l1 | l2 | f | F1 | Ga° | Gr° Insert |
| PCLCR/L 1010H-06S-JHP | 10.0 | 10.0 | 100.00 | 22.3 | 10.2 | - | 0 | 0 CC.. 0602 |
| PCLCR/L 1212H-09S-JHP | 12.0 | 12.0 | 100.00 | 22.3 | 12.2 | 14.0 | 0 | 0 CC.. 09T3 |
| PCLCR/L 1616K-09S-JHP | 16.0 | 16.0 | 125.00 | 22.3 | 16.2 | - | 0 | 0 CC.. 09T3 |
| PCLCR/L 2020K-09S-JHP | 20.0 | 20.0 | 125.00 | 22.3 | 20.2 | - | 0 | 0 CC.. 09T3 |
- For user guide, see pages 64-71
For inserts, see pages: CCMT-PF (155) CCMT/CCGT-SM (155) CCET-WF (156) CCMT-WG (156) CCGT-AS (174) CCGT-AF (174) CCMT-14 (155) CCMT/CCGT (156) CCGW/CCMW-2 (CBN) (189) CCMT (CBN) (189) CCMT (PCD) (184)
Spare Parts
Designation
PCLCR/L-S-JHP SL LV-3 SL PI-3 SR 10400150 HW 2.5/5 SR 5/16UNF TL360 S-CU-JHP
h h
PDACR/L-S
91° Side Lever Lock Tools Carrying
| 55° Positive Rhombic Inserts for | f | b | |||
| Swiss Automatic Machines | l | ||||
| 1 | |||||
| Left-hand shown | Right-hand shown |
| Designation | h | b | l1 | f | Ga° | Gr° | Insert | |||
| PDACR/L 0808M-07S | 8.0 | 8.0 | 150.00 | 8.0 | 0 | 0 | DC..0702 | SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 | ||
| PDACR/L 1010M-07S | 10.0 | 10.0 | 150.00 | 10.0 | 0 | 0 | DC..0702 | SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 | ||
| PDACR/L 1212M-07S | 12.0 | 12.0 | 150.00 | 12.0 | 0 | 0 | DC..0702 | SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 | ||
| PDACR/L 1616M-07S | 16.0 | 16.0 | 150.00 | 16.0 | 0 | 0 | DC..0702 | SL LV-2 SL PI-2 PIN SR 10400611 HW 2.0/5 | ||
| PDACR/L 1012M-11S | 10.0 | 12.0 | 150.00 | 12.0 | 0 | 0 | DC..11T3 | SL LV-3 | SL PI-3 | SR 10400150 HW 2.5/5 |
| PDACR/L 1212M-11S | 12.0 | 12.0 | 150.00 | 12.0 | 0 | 0 | DC..11T3 | SL LV-3 | SL PI-3 | SR 10400150 HW 2.5/5 |
| PDACR/L 1616M-11S | 16.0 | 16.0 | 150.00 | 16.0 | 0 | 0 | DC..11T3 | SL LV-3 | SL PI-3 | SR 10400150 HW 2.5/5 |
| PDACR/L 2020K-11S | 20.0 | 20.0 | 125.00 | 20.0 | 0 | 0 | DC..11T3 | SL LV-3 | SL PI-3 | SR 10400150 HW 2.5/5 |
- The clamping screw may by transferred to the opposite side if needed
For inserts, see pages: DCMT-F3P (158) DCMT-PF (160) DCMT/DCGT-SM (161) DCET-WF (162) DCGT-AS (174) DCGT-AF (175) DCMT-14 (162) DCMT/DCGT (161) DCGW/DCMW-2 (CBN) (191) DCMT (CBN) (191) DCMT (PCD) (184)
l2 SDJCR/L-13-SL 93° h h Screw Lock Tools Carrying 55° Diamond Inserts with 7° f b Clearance Angle for High Rigidity in Profiling Applications 93° l1 Right-hand shown
| Designation | h | b | l1 | l2 | f | Ga° | Gr° | Insert | ||
| SDJCR/L 1616H-13-SL | 16.0 | 16.0 | 100.00 | 24.0 | 21.0 | 0 | 0 | DCMT 13T5-SL | SR M4X0.7-L9.6 IP15 TORX PLUS IP15X45 | |
| SDJCR/L 2020K-13-SL | 20.0 | 20.0 | 125.00 | 24.0 | 27.0 | 0 | 0 | DCMT 13T5-SL | SR M4X0.7-L9.6 IP15 TORX PLUS IP15X45 | |
| SDJCR/L 2525M-13-SL | 25.0 | 25.0 | 150.00 | 24.0 | 32.0 | 0 | 0 | DCMT 13T5-SL | SR M4X0.7-L9.6 IP15 TORX PLUS IP15X45 |
- Insert clamping torque 3 Nxm
For inserts, see pages: DCMT-F3P-SL (158) DCMT-M3M-SL (159) DCMT-PF-SL (159) DCMT-SM-SL (160)
