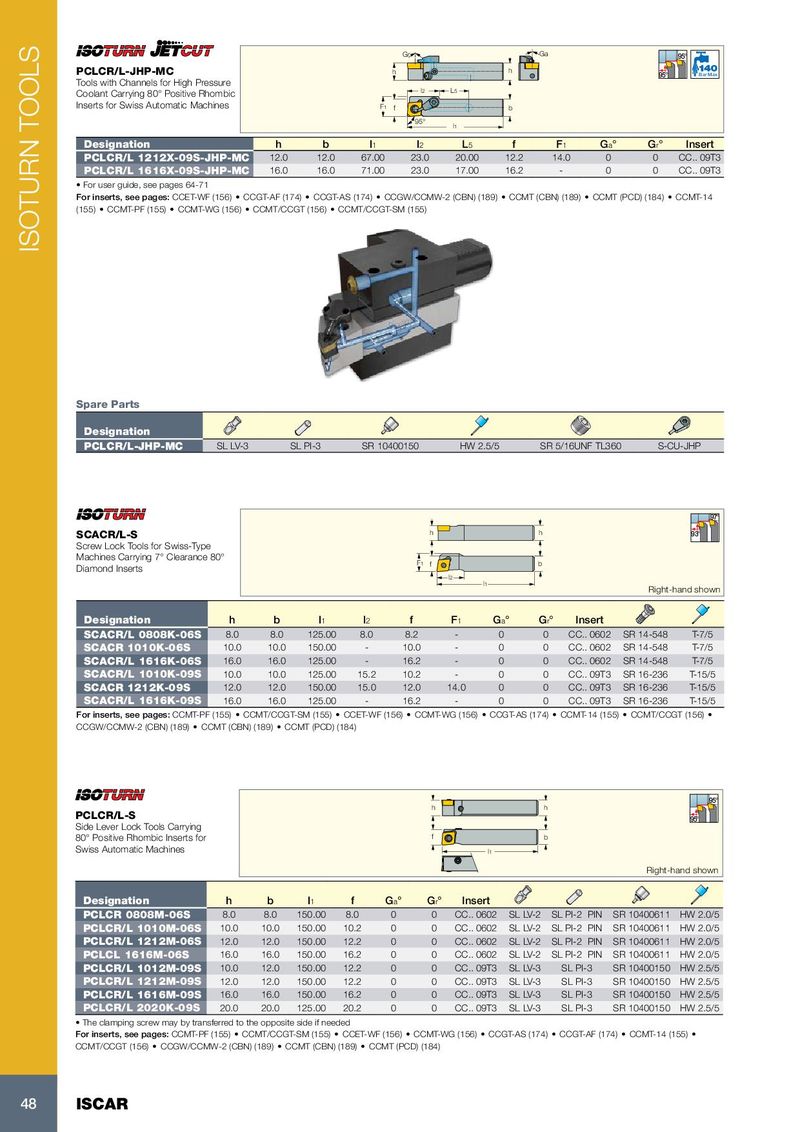

| PCLCR/L-JHP-MC Tools with Channels for High Pressure | Gr h | h G | a | 95° 95° Bar Max | ||||
| Coolant Carrying 80° Positive Rhombic Inserts for Swiss Automatic Machines | F1 f l2 95° | L5 l1 | b | |||||
| Designation | h | b | l1 l2 | L5 | f | F1 | Ga° | Gr° Insert |
| PCLCR/L 1212X-09S-JHP-MC | 12.0 | 12.0 | 67.00 23.0 | 20.00 | 12.2 | 14.0 | 0 | 0 CC.. 09T3 |
| PCLCR/L 1616X-09S-JHP-MC | 16.0 | 16.0 | 71.00 23.0 | 17.00 | 16.2 | - | 0 | 0 CC.. 09T3 |
- For user guide, see pages 64-71
For inserts, see pages: CCET-WF (156) CCGT-AF (174) CCGT-AS (174) CCGW/CCMW-2 (CBN) (189) CCMT (CBN) (189) CCMT (PCD) (184) CCMT-14 (155) CCMT-PF (155) CCMT-WG (156) CCMT/CCGT (156) CCMT/CCGT-SM (155)
Spare Parts
Designation
PCLCR/L-JHP-MC SL LV-3 SL PI-3 SR 10400150 HW 2.5/5 SR 5/16UNF TL360 S-CU-JHP
| 97° | |||||||||||
| SCACR/L-S | h | h | 93° | ||||||||
| Screw Lock Tools for Swiss-Type Machines Carrying 7° Clearance 8 Diamond Inserts | 0° | f F1 | l2 | l1 | b | Right-h | and shown | ||||
| Designation | h | b | l1 | l2 | f | F1 | Ga° | Gr° | Insert | ||
| SCACR/L 0808K-06S | 8.0 | 8.0 | 125.00 | 8.0 | 8.2 | - | 0 | 0 | CC.. 0602 | SR 14-548 | T-7/5 |
| SCACR 1010K-06S | 10.0 | 10.0 | 150.00 | - | 10.0 | - | 0 | 0 | CC.. 0602 | SR 14-548 | T-7/5 |
| SCACR/L 1616K-06S | 16.0 | 16.0 | 125.00 | - | 16.2 | - | 0 | 0 | CC.. 0602 | SR 14-548 | T-7/5 |
| SCACR/L 1010K-09S | 10.0 | 10.0 | 125.00 | 15.2 | 10.2 | - | 0 | 0 | CC.. 09T3 | SR 16-236 | T-15/5 |
| SCACR 1212K-09S | 12.0 | 12.0 | 150.00 | 15.0 | 12.0 | 14.0 | 0 | 0 | CC.. 09T3 | SR 16-236 | T-15/5 |
| SCACR/L 1616K-09S | 16.0 | 16.0 | 125.00 | - | 16.2 | - | 0 | 0 | CC.. 09T3 | SR 16-236 | T-15/5 |
For inserts, see pages: CCMT-PF (155) CCMT/CCGT-SM (155) CCET-WF (156) CCMT-WG (156) CCGT-AS (174) CCMT-14 (155) CCMT/CCGT (156) CCGW/CCMW-2 (CBN) (189) CCMT (CBN) (189) CCMT (PCD) (184)
| PCLCR/L-S Side Lever Lock Tools Carrying | h | h | 95° 95° | ||||||||
| 80° Positive Rhombic Inserts for | f | b | |||||||||
| Swiss Automatic Machines | l1 | Right-h | and shown | ||||||||
| Designation | h | b | l1 | f | Ga° | Gr° | Insert | ||||
| PCLCR 0808M-06S | 8.0 | 8.0 | 150.00 | 8.0 | 0 | 0 | CC.. 0602 | SL LV-2 | SL PI-2 PIN | SR 10400611 | HW 2.0/5 |
| PCLCR/L 1010M-06S | 10.0 | 10.0 | 150.00 | 10.2 | 0 | 0 | CC.. 0602 | SL LV-2 | SL PI-2 PIN | SR 10400611 | HW 2.0/5 |
| PCLCR/L 1212M-06S | 12.0 | 12.0 | 150.00 | 12.2 | 0 | 0 | CC.. 0602 | SL LV-2 | SL PI-2 PIN | SR 10400611 | HW 2.0/5 |
| PCLCL 1616M-06S | 16.0 | 16.0 | 150.00 | 16.2 | 0 | 0 | CC.. 0602 | SL LV-2 | SL PI-2 PIN | SR 10400611 | HW 2.0/5 |
| PCLCR/L 1012M-09S | 10.0 | 12.0 | 150.00 | 12.2 | 0 | 0 | CC.. 09T3 | SL LV-3 | SL PI-3 | SR 10400150 | HW 2.5/5 |
| PCLCR/L 1212M-09S | 12.0 | 12.0 | 150.00 | 12.2 | 0 | 0 | CC.. 09T3 | SL LV-3 | SL PI-3 | SR 10400150 | HW 2.5/5 |
| PCLCR/L 1616M-09S | 16.0 | 16.0 | 150.00 | 16.2 | 0 | 0 | CC.. 09T3 | SL LV-3 | SL PI-3 | SR 10400150 | HW 2.5/5 |
| PCLCR/L 2020K-09S | 20.0 | 20.0 | 125.00 | 20.2 | 0 | 0 | CC.. 09T3 | SL LV-3 | SL PI-3 | SR 10400150 | HW 2.5/5 |
- The clamping screw may by transferred to the opposite side if needed
For inserts, see pages: CCMT-PF (155) CCMT/CCGT-SM (155) CCET-WF (156) CCMT-WG (156) CCGT-AS (174) CCGT-AF (174) CCMT-14 (155) CCMT/CCGT (156) CCGW/CCMW-2 (CBN) (189) CCMT (CBN) (189) CCMT (PCD) (184)
