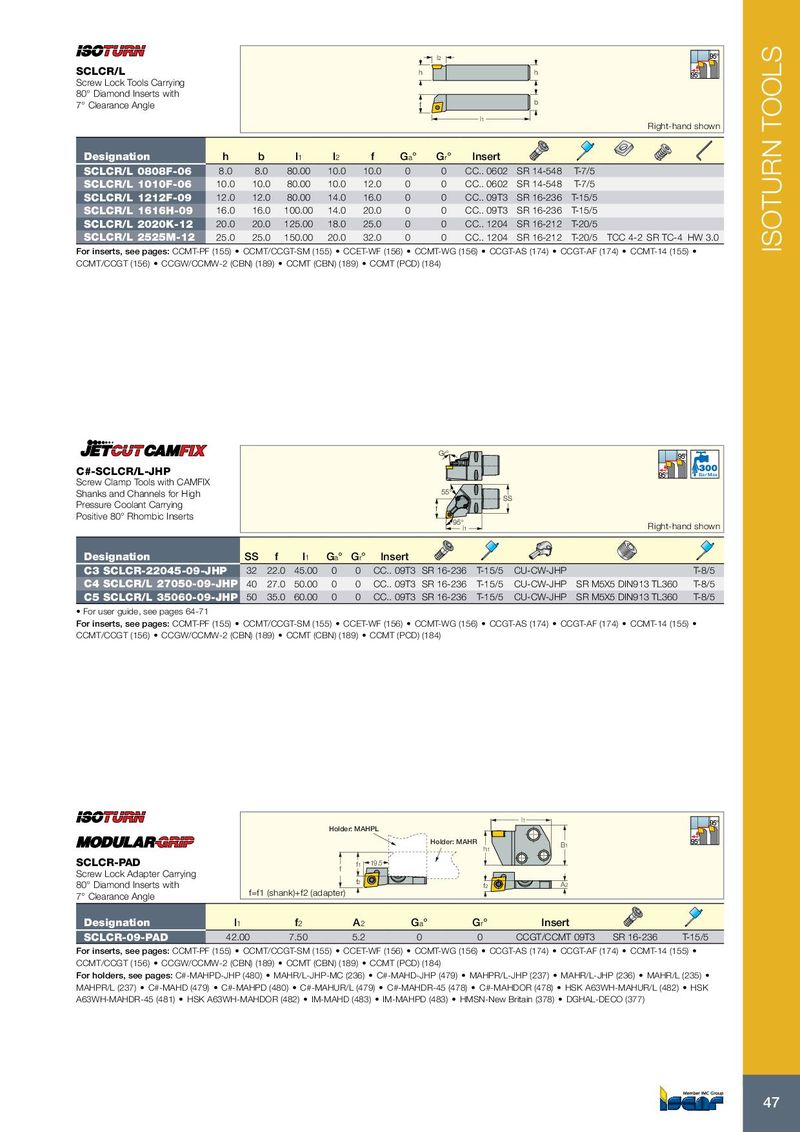

| SCLCR/L | h | h |
| Screw Lock Tools Carrying | ||
| 80° Diamond Inserts with | ||
| 7° Clearance Angle | f | b |
| l1 | ||
| Right-hand shown |
| Designation | h | b | l1 | l2 | f | Ga° | Gr° | Insert | |
| SCLCR/L 0808F-06 | 8.0 | 8.0 | 80.00 | 10.0 | 10.0 | 0 | 0 | CC.. 0602 SR 14-548 | T-7/5 |
| SCLCR/L 1010F-06 | 10.0 | 10.0 | 80.00 | 10.0 | 12.0 | 0 | 0 | CC.. 0602 SR 14-548 | T-7/5 |
| SCLCR/L 1212F-09 | 12.0 | 12.0 | 80.00 | 14.0 | 16.0 | 0 | 0 | CC.. 09T3 SR 16-236 T-15/5 | |
| SCLCR/L 1616H-09 | 16.0 | 16.0 | 100.00 | 14.0 | 20.0 | 0 | 0 | CC.. 09T3 SR 16-236 T-15/5 | |
| SCLCR/L 2020K-12 | 20.0 | 20.0 | 125.00 | 18.0 | 25.0 | 0 | 0 | CC.. 1204 SR 16-212 T-20/5 | |
| SCLCR/L 2525M-12 | 25.0 | 25.0 | 150.00 | 20.0 | 32.0 | 0 | 0 | CC.. 1204 SR 16-212 T-20/5 TCC 4-2 SR TC-4 HW 3.0 |
For inserts, see pages: CCMT-PF (155) CCMT/CCGT-SM (155) CCET-WF (156) CCMT-WG (156) CCGT-AS (174) CCGT-AF (174) CCMT-14 (155) CCMT/CCGT (156) CCGW/CCMW-2 (CBN) (189) CCMT (CBN) (189) CCMT (PCD) (184)
Gr° 95°
C#-SCLCR/L-JHP
95° Bar Max Screw Clamp Tools with CAMFIX Shanks and Channels for High 55° SS Pressure Coolant Carrying f Positive 80° Rhombic Inserts 95° Right-hand shown l1
| Designation | SS | f | l1 | Ga° Gr° | Insert | |||
| C3 SCLCR-22045-09-JHP | 32 22.0 45.00 | 0 | 0 | CC.. 09T3 SR 16-236 T-15/5 | CU-CW-JHP | T-8/5 | ||
| C4 SCLCR/L 27050-09-JHP | 40 27.0 50.00 | 0 | 0 | CC.. 09T3 SR 16-236 T-15/5 | CU-CW-JHP SR M5X5 DIN913 TL360 | T-8/5 | ||
| C5 SCLCR/L 35060-09-JHP | 50 35.0 60.00 | 0 | 0 | CC.. 09T3 SR 16-236 T-15/5 | CU-CW-JHP SR M5X5 DIN913 TL360 | T-8/5 |
- For user guide, see pages 64-71
For inserts, see pages: CCMT-PF (155) CCMT/CCGT-SM (155) CCET-WF (156) CCMT-WG (156) CCGT-AS (174) CCGT-AF (174) CCMT-14 (155) CCMT/CCGT (156) CCGW/CCMW-2 (CBN) (189) CCMT (CBN) (189) CCMT (PCD) (184)
l 1 95° Holder: MAHPL
| Holder: MAHR | B | 95° | |
| h | 1 | ||
| 1 |
| SCLCR-PAD | f | 19.5 | ||||
| f 1 | ||||||
| Screw Lock Adapter Carrying | ||||||
| 80° Diamond Inserts with | f2 | f | A | |||
| 2 | 2 | |||||
| 7° Clearance Angle | f=f1 (shank)+f2 (adapter) | |||||
| Designation | l1 | f2 | A2 | Ga° | Gr° | Insert |
| SCLCR-09-PAD | 42.00 | 7.50 | 5.2 | 0 | 0 | T-15/5 SR 16-236 CCGT/CCMT 09T3 |
For inserts, see pages: CCMT-PF (155) CCMT/CCGT-SM (155) CCET-WF (156) CCMT-WG (156) CCGT-AS (174) CCGT-AF (174) CCMT-14 (155) CCMT/CCGT (156) CCGW/CCMW-2 (CBN) (189) CCMT (CBN) (189) CCMT (PCD) (184) For holders, see pages: C#-MAHPD-JHP (480) MAHR/L-JHP-MC (236) C#-MAHD-JHP (479) MAHPR/L-JHP (237) MAHR/L-JHP (236) MAHR/L (235) MAHPR/L (237) C#-MAHD (479) C#-MAHPD (480) C#-MAHUR/L (479) C#-MAHDR-45 (478) C#-MAHDOR (478) HSK A63WH-MAHUR/L (482) HSK
A63WH-MAHDR-45 (481) HSK A63WH-MAHDOR (482) IM-MAHD (483) IM-MAHPD (483) HMSN-New Britain (378) DGHAL-DECO (377)
