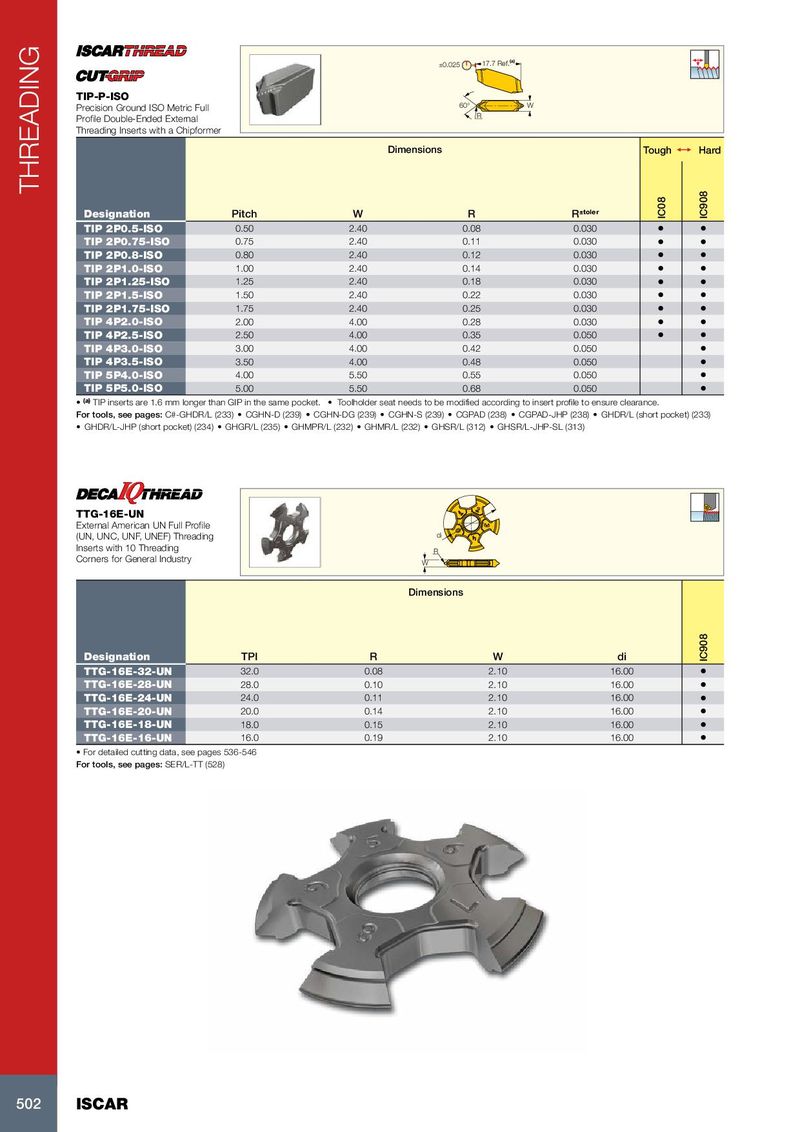

THREADING
±0.025 17.7 Ref.(a)

TIP-P-ISO
Precision Ground ISO Metric Full 60° W
R
Profile Double-Ended External
Threading Inserts with a Chipformer
Dimensions Tough 1 Hard


IC908
IC08
Designation Pitch W R R±toler
TIP 2P0.5-ISO 0.50 2.40 0.08 0.030 • •
TIP 2P0.75-ISO 0.75 2.40 0.11 0.030 • •
TIP 2P0.8-ISO 0.80 2.40 0.12 0.030 • •
TIP 2P1.0-ISO 1.00 2.40 0.14 0.030 • •
TIP 2P1.25-ISO 1.25 2.40 0.18 0.030 • •
TIP 2P1.5-ISO 1.50 2.40 0.22 0.030 • •
TIP 2P1.75-ISO 1.75 2.40 0.25 0.030 • •
TIP 4P2.0-ISO 2.00 4.00 0.28 0.030 • •
TIP 4P2.5-ISO 2.50 4.00 0.35 0.050 • •
TIP 4P3.0-ISO 3.00 4.00 0.42 0.050 •
TIP 4P3.5-ISO 3.50 4.00 0.48 0.050 •
TIP 5P4.0-ISO 4.00 5.50 0.55 0.050 •
TIP 5P5.0-ISO 5.00 5.50 0.68 0.050 •
• (a) TIP inserts are 1.6 mm longer than GIP in the same pocket. • Toolholder seat needs to be modified according to insert profile to ensure clearance.
For tools, see pages: C#-GHDR/L (233) • CGHN-D (239) • CGHN-DG (239) • CGHN-S (239) • CGPAD (238) • CGPAD-JHP (238) • GHDR/L (short pocket) (233)
• GHDR/L-JHP (short pocket) (234) • GHGR/L (235) • GHMPR/L (232) • GHMR/L (232) • GHSR/L (312) • GHSR/L-JHP-SL (313)


TTG-16E-UN
External American UN Full Profile
(UN, UNC, UNF, UNEF) Threading di
Inserts with 10 Threading R
Corners for General Industry W

Dimensions


IC908
Designation TPI R W di
TTG-16E-32-UN 32.0 0.08 2.10 16.00 •
TTG-16E-28-UN 28.0 0.10 2.10 16.00 •
TTG-16E-24-UN 24.0 0.11 2.10 16.00 •
TTG-16E-20-UN 20.0 0.14 2.10 16.00 •
TTG-16E-18-UN 18.0 0.15 2.10 16.00 •
TTG-16E-16-UN 16.0 0.19 2.10 16.00 •
• For detailed cutting data, see pages 536-546
For tools, see pages: SER/L-TT (528)


502 ISCAR
