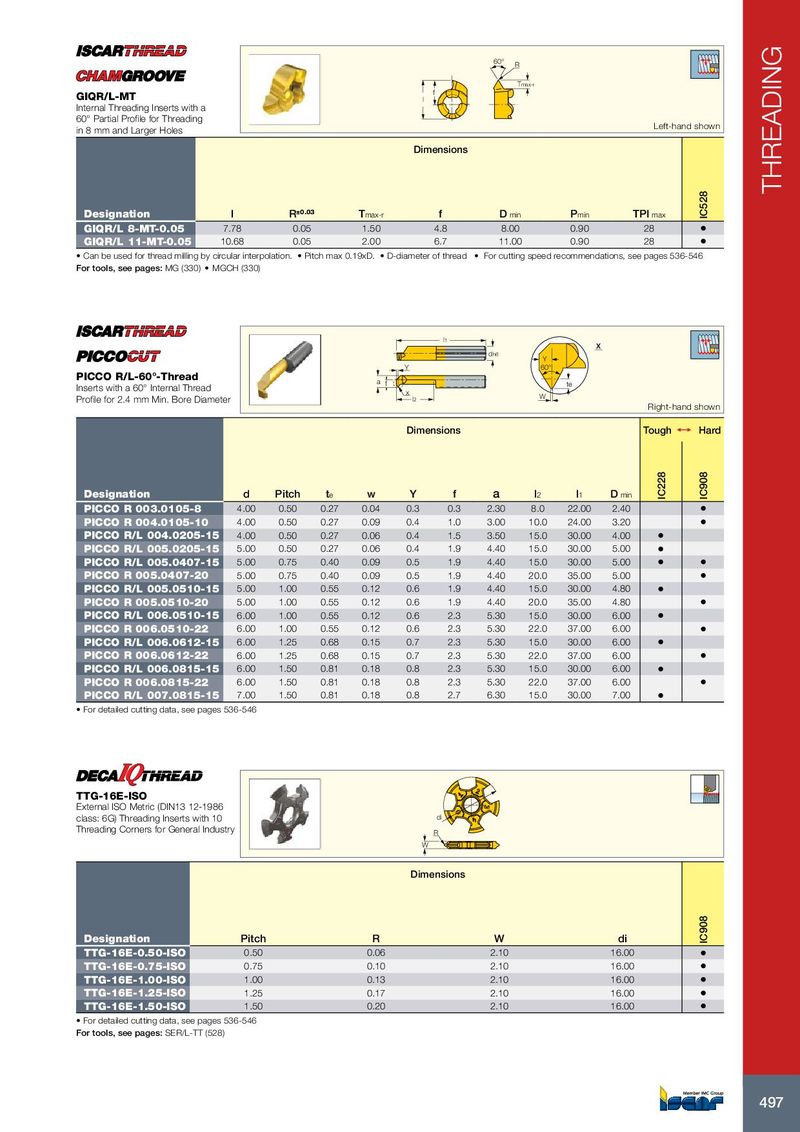

Каталог Iscar токарный инструмент 2017 - страница 501

THREADING
60°
R
Tmax-r
f
GIQR/L-MT l
Internal Threading Inserts with a
60° Partial Profile for Threading
in 8 mm and Larger Holes Left-hand shown
Dimensions


IC528
Designation l R±0.03 Tmax-r f D min Pmin TPI max
GIQR/L 8-MT-0.05 7.78 0.05 1.50 4.8 8.00 0.90 28 •
GIQR/L 11-MT-0.05 10.68 0.05 2.00 6.7 11.00 0.90 28 •
• Can be used for thread milling by circular interpolation. • Pitch max 0.19xD. • D-diameter of thread • For cutting speed recommendations, see pages 536-546
For tools, see pages: MG (330) • MGCH (330)


l1
X
dh6
Y
Y 60°
PICCO R/L-60°-Thread a f te
Inserts with a 60° Internal Thread x
W
Profile for 2.4 mm Min. Bore Diameter l2
Right-hand shown
Dimensions Tough 1 Hard


IC228

IC908
Designation d Pitch te w Y f a l2 l1 D min
PICCO R 003.0105-8 4.00 0.50 0.27 0.04 0.3 0.3 2.30 8.0 22.00 2.40 •
PICCO R 004.0105-10 4.00 0.50 0.27 0.09 0.4 1.0 3.00 10.0 24.00 3.20 •
PICCO R/L 004.0205-15 4.00 0.50 0.27 0.06 0.4 1.5 3.50 15.0 30.00 4.00 •
PICCO R/L 005.0205-15 5.00 0.50 0.27 0.06 0.4 1.9 4.40 15.0 30.00 5.00 •
PICCO R/L 005.0407-15 5.00 0.75 0.40 0.09 0.5 1.9 4.40 15.0 30.00 5.00 • •
PICCO R 005.0407-20 5.00 0.75 0.40 0.09 0.5 1.9 4.40 20.0 35.00 5.00 •
PICCO R/L 005.0510-15 5.00 1.00 0.55 0.12 0.6 1.9 4.40 15.0 30.00 4.80 •
PICCO R 005.0510-20 5.00 1.00 0.55 0.12 0.6 1.9 4.40 20.0 35.00 4.80 •
PICCO R/L 006.0510-15 6.00 1.00 0.55 0.12 0.6 2.3 5.30 15.0 30.00 6.00 •
PICCO R 006.0510-22 6.00 1.00 0.55 0.12 0.6 2.3 5.30 22.0 37.00 6.00 •
PICCO R/L 006.0612-15 6.00 1.25 0.68 0.15 0.7 2.3 5.30 15.0 30.00 6.00 •
PICCO R 006.0612-22 6.00 1.25 0.68 0.15 0.7 2.3 5.30 22.0 37.00 6.00 •
PICCO R/L 006.0815-15 6.00 1.50 0.81 0.18 0.8 2.3 5.30 15.0 30.00 6.00 •
PICCO R 006.0815-22 6.00 1.50 0.81 0.18 0.8 2.3 5.30 22.0 37.00 6.00 •
PICCO R/L 007.0815-15 7.00 1.50 0.81 0.18 0.8 2.7 6.30 15.0 30.00 7.00 •
• For detailed cutting data, see pages 536-546


TTG-16E-ISO
External ISO Metric (DIN13 12-1986
class: 6G) Threading Inserts with 10 di
Threading Corners for General Industry R
W

Dimensions
IC908


Designation Pitch R W di
TTG-16E-0.50-ISO 0.50 0.06 2.10 16.00 •
TTG-16E-0.75-ISO 0.75 0.10 2.10 16.00 •
TTG-16E-1.00-ISO 1.00 0.13 2.10 16.00 •
TTG-16E-1.25-ISO 1.25 0.17 2.10 16.00 •
TTG-16E-1.50-ISO 1.50 0.20 2.10 16.00 •
• For detailed cutting data, see pages 536-546
For tools, see pages: SER/L-TT (528)


497
