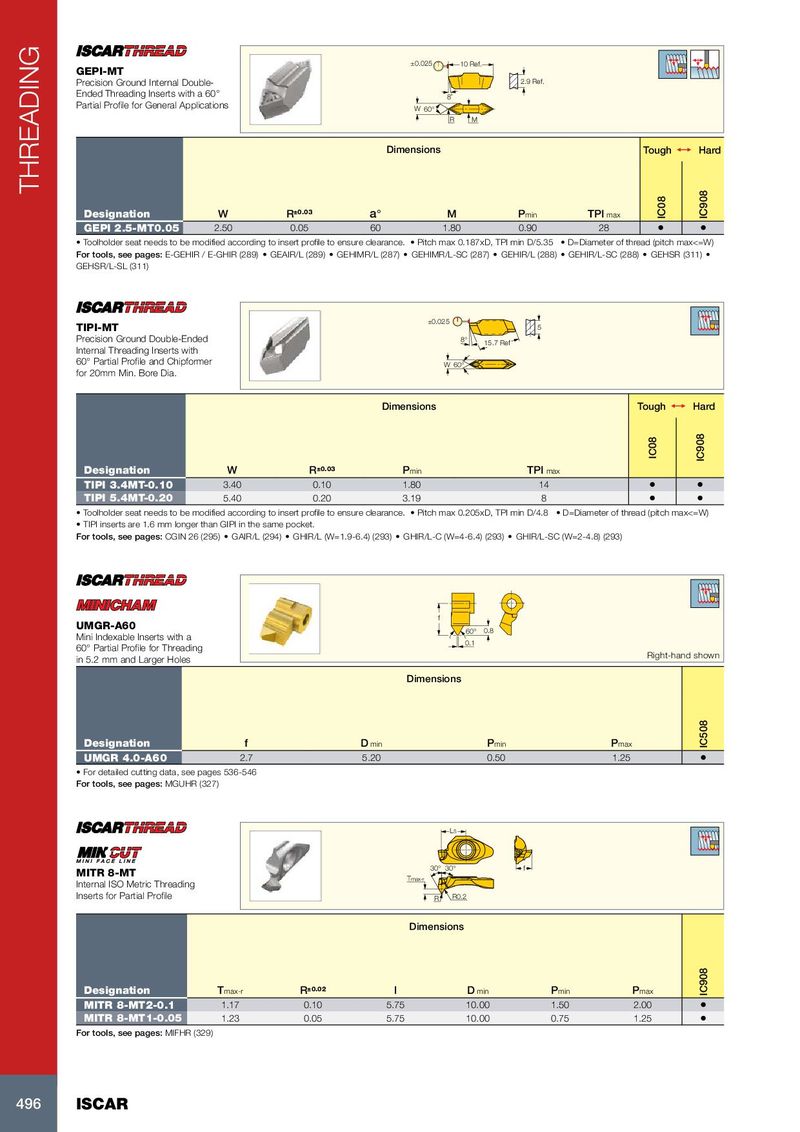

THREADING
±0.025 10 Ref.
GEPI-MT
Precision Ground Internal Double- 2.9 Ref.
Ended Threading Inserts with a 60° 8˚
Partial Profile for General Applications W 60°
R M

Dimensions Tough 1 Hard


IC908
IC08
Designation W R±0.03 a° M Pmin TPI max
GEPI 2.5-MT0.05 2.50 0.05 60 1.80 0.90 28 • •
• Toolholder seat needs to be modified according to insert profile to ensure clearance. • Pitch max 0.187xD, TPI min D/5.35 • D=Diameter of thread (pitch max<=W)
For tools, see pages: E-GEHIR / E-GHIR (289) • GEAIR/L (289) • GEHIMR/L (287) • GEHIMR/L-SC (287) • GEHIR/L (288) • GEHIR/L-SC (288) • GEHSR (311) •
GEHSR/L-SL (311)


±0.025
TIPI-MT 5
Precision Ground Double-Ended 8°
15.7 Ref
Internal Threading Inserts with
60° Partial Profile and Chipformer W 60°
for 20mm Min. Bore Dia.

Dimensions Tough 1 Hard


IC908
IC08
Designation W R±0.03 Pmin TPI max
TIPI 3.4MT-0.10 3.40 0.10 1.80 14 • •
TIPI 5.4MT-0.20 5.40 0.20 3.19 8 • •
• Toolholder seat needs to be modified according to insert profile to ensure clearance. • Pitch max 0.205xD, TPI min D/4.8 • D=Diameter of thread (pitch max<=W)
• TIPI inserts are 1.6 mm longer than GIPI in the same pocket.
For tools, see pages: CGIN 26 (295) • GAIR/L (294) • GHIR/L (W=1.9-6.4) (293) • GHIR/L-C (W=4-6.4) (293) • GHIR/L-SC (W=2-4.8) (293)


f
UMGR-A60 60° 0.8
Mini Indexable Inserts with a
0.1
60° Partial Profile for Threading
in 5.2 mm and Larger Holes Right-hand shown
Dimensions
IC508

Designation f D min Pmin Pmax
UMGR 4.0-A60 2.7 5.20 0.50 1.25 •
• For detailed cutting data, see pages 536-546
For tools, see pages: MGUHR (327)


L5


30° 30° f
MITR 8-MT Tmax-r
Internal ISO Metric Threading
Inserts for Partial Profile R R0.2

Dimensions
IC908


Designation Tmax-r R±0.02 l D min Pmin Pmax
MITR 8-MT2-0.1 1.17 0.10 5.75 10.00 1.50 2.00 •
MITR 8-MT1-0.05 1.23 0.05 5.75 10.00 0.75 1.25 •
For tools, see pages: MIFHR (329)


496 ISCAR
